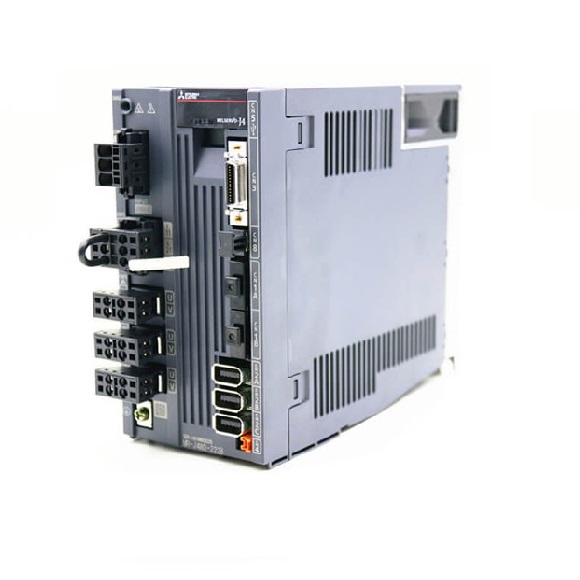

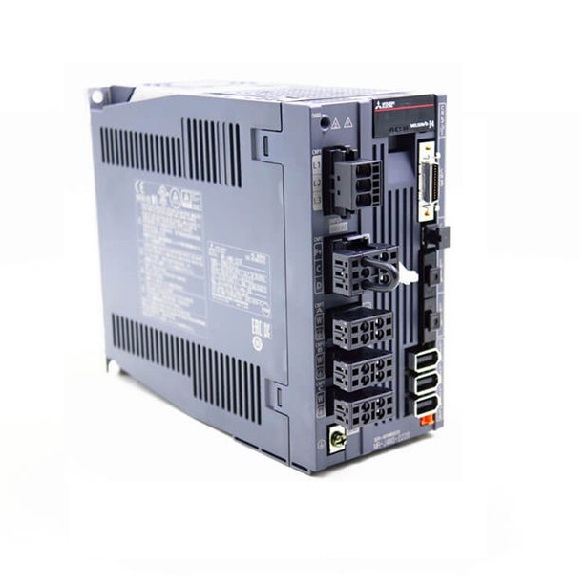

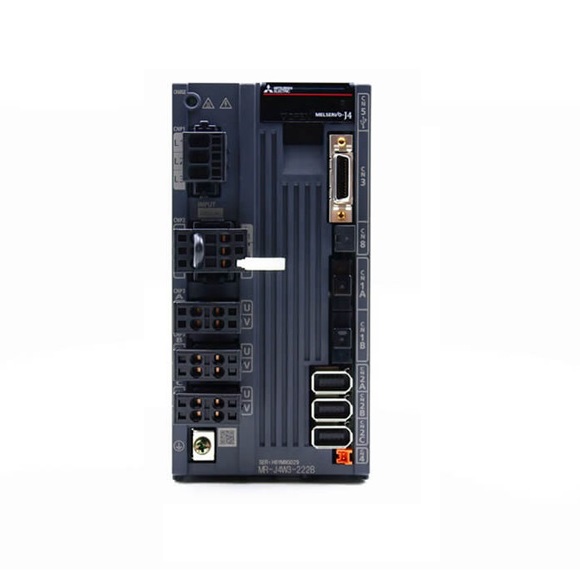

Mitsubishi MR-J4W3-222B Servo Amplifier

Series#: Mitsubishi

Product Details

Model: MITSUBISHI MELSERVO-J4 SERVO AMPLIFIER WITH DRIVE 200W MR-J4W3-222B – a high-performance multi-axis servo amplifier for precision motion control.
Rated output of 200W per axis, with a rated current of 2.8A per axis and a main circuit power supply of 3-phase 170V AC.
Advanced sine-wave PWM control and current control method for smooth, accurate motor operation.
Built-in dynamic brake and regenerative resistance (100W) for enhanced safety and energy efficiency.
Supports SSCNET III/H communication with selectable cycles (0.222 ms, 0.444 ms, 0.888 ms) for ultra-fast command response.
Comprehensive protective functions including overcurrent, overvoltage, overload, and encoder error protection.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The MITSUBISHI MELSERVO-J4 SERVO AMPLIFIER WITH DRIVE 200W MR-J4W3-222B is a high-integration multi-axis servo amplifier designed for demanding industrial automation applications. This unit operates with a main circuit power supply of 3-phase 170V AC (permissible range: 170V AC to 264V AC, 50/60 Hz) and a control circuit supply of 1-phase 200V AC to 240V AC (permissible range: 170V AC to 264V AC). It delivers a rated current of 2.8A per axis, with a total power supply capacity that supports efficient operation. The amplifier features sine-wave PWM control and current control for precise torque and speed regulation. Built-in regenerative resistance (100W) and a capacitor-based regeneration system (with a permissible charging moment of inertia of 6.08 × 10⁻⁴ kg·m²) ensure energy recovery and thermal stability. The SSCNET III/H communication interface offers command cycles of 0.222 ms, 0.444 ms, or 0.888 ms, enabling high-speed synchronous motion. Protective functions include overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, and error excessive protection. The amplifier is not compatible with encoder output pulses, fully closed loop control, or scale measurement functions, making it ideal for standard servo applications requiring high reliability and compact design.

Parameter	Specification (MR-J4W3-222B)
Model	MR-J4W3-222B
Rated voltage (main circuit)	3-phase 170 V AC
Output rated current (each axis)	2.8 A
Power supply/frequency (main circuit)	3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Rated current (main circuit, Note 9)	7.8 A
Permissible voltage fluctuation (main circuit)	3-phase or 1-phase 170 V AC to 264 V AC, 50 Hz/60 Hz
Permissible frequency fluctuation	Within ±5%
Power supply capacity	Refer to section 10.2
Inrush current	Refer to section 10.5
Control circuit power supply input	1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Control circuit rated current	0.4 A
Control circuit permissible voltage fluctuation	1-phase 170 V AC to 264 V AC
Control circuit permissible frequency fluctuation	Within ±5%
Control circuit power consumption	55 W
Interface power supply	24 V DC ± 10%, 0.45 A (Note 1)
Control method	Sine-wave PWM control, current control method
Reusable regenerative energy	30 J
Moment of inertia equivalent to permissible charging amount	6.08 × 10⁻⁴ kg·m²
Mass equivalent to permissible charging amount (LM-H3)	6.7 kg
Mass equivalent to permissible charging amount (LM-K2, LM-U2)	15 kg
Built-in regenerative resistance	100 W
Dynamic brake	Built-in
SSCNET III/H command communication cycle	0.222 ms (Note 8), 0.444 ms, 0.888 ms
Communication function	USB: Connect a personal computer (MR Configurator2 compatible)
Encoder output pulse	Not compatible
Analog monitor	None
Fully closed loop control	Not compatible
Scale measurement function	Not compatible
Protective functions	Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection
