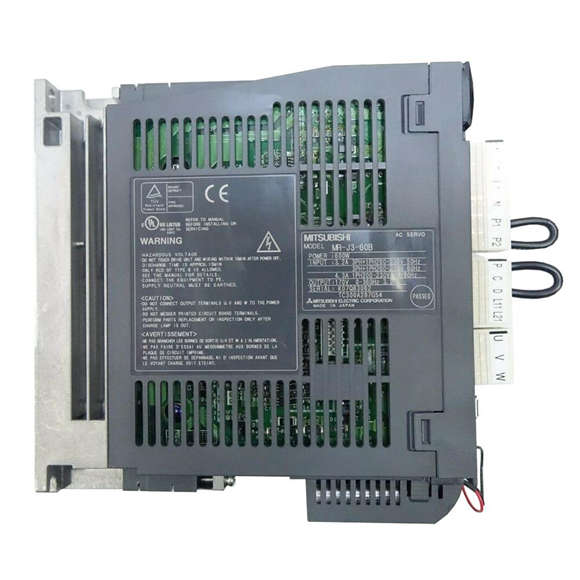

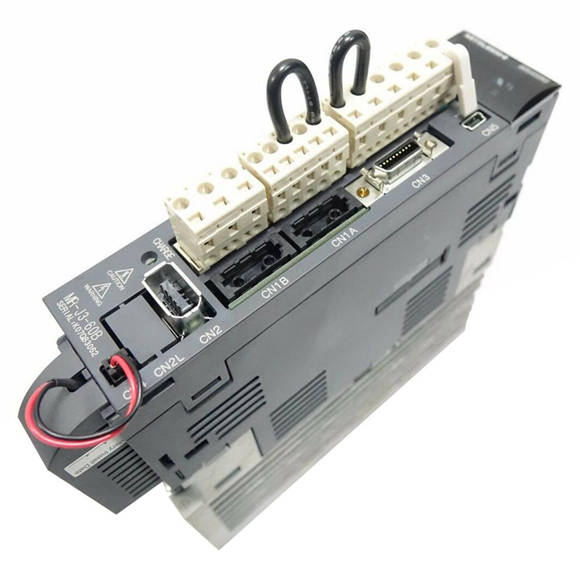

Mitsubishi MR-J3-60B Servo Drive

Series#: Mitsubishi

Product Details

Mitsubishi MR-J3-60B – High-performance 600W servo drive for precision motion control.
Advanced sine-wave PWM control with current control system for smooth, accurate operation.
Built-in dynamic brake for reliable emergency stopping (on select models).
Wide input voltage range: 3-phase 200-230VAC or 1-phase 200-230VAC, with ±5% frequency tolerance.
Comprehensive safety features: overcurrent, overvoltage, overload, encoder fault, and more.
High-resolution feedback: 262,144 pulses/rev with 1Mpps input pulse frequency (differential).

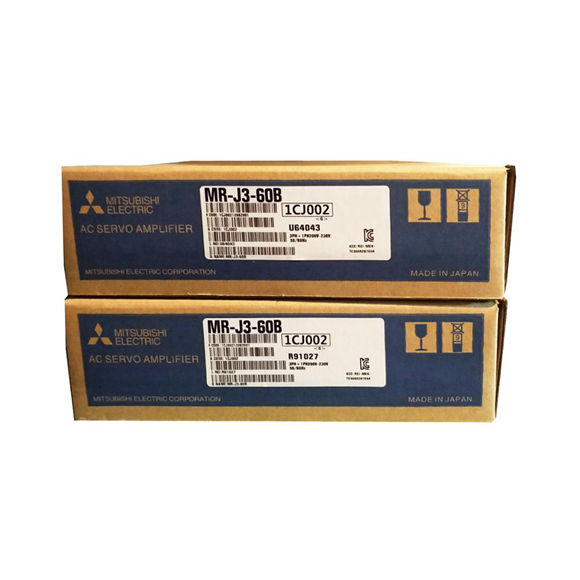

100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi MR-J3-60B servo drive is a robust 600W amplifier designed for demanding industrial automation applications. It delivers exceptional performance through sine-wave PWM control and supports multiple control modes including position, speed, and torque. With a compact self-cooled IP00 enclosure and a wide operating temperature range of 0 to 55°C, it ensures reliable operation in diverse environments. The drive features a built-in dynamic brake (for applicable models) and advanced safety protections, making it ideal for CNC, robotics, and packaging machinery.

Parameter	Specification (MR-J3-60B)
Rated Output Power	600W (0.6 kW)
Main Circuit Voltage/Frequency	3-phase 200 to 230VAC 50/60Hz or 1-phase 200 to 230VAC 50/60Hz
Control Circuit Voltage/Frequency	1-phase 200 to 230VAC 50/60Hz
Permissible Voltage Fluctuation	3-phase: 170 to 253VAC; 1-phase: 170 to 253VAC
Permissible Frequency Fluctuation	±5% maximum
Power Consumption	30 W (typical)
Interface Power Supply	24VDC ±10% (required current: 300mA)
Built-in Regenerative Resistor	10 Ω (standard)
External Regenerative Resistor	Not supplied as standard (optional for high-inertia loads)
Control System	Sine-wave PWM control / current control system
Dynamic Brake	Built-in
Safety Features	Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, regeneration fault, undervoltage/power outage, overspeed, excess error
Maximum Input Pulse Frequency	1 Mpps (differential receiver), 200 kpps (open collector)
Positioning Feedback Pulse	262,144 pulses/rev (encoder resolution)
Command Pulse Multiple (Electronic Gear)	A: 1 to 1,048,576; B: 1 to 1,048,576; ratio 1/10 < A/B < 2000
Positioning Complete Width	0 to ±10,000 pulses (command pulse unit)
Excess Error	±3 rotations
Torque Limit	Set by parameters or external analog input (0 to +10VDC max torque)
Speed Control Range	Analog speed command: 1:2000; Internal speed command: 1:5000
Analog Speed Command Input	0 to ±10VDC / rated speed
Speed Fluctuation Rate	±0.01% max (load 0-100%); 0% (power ±10%); ±0.2% max (ambient 25°C±10°C)
Analog Torque Command Input	0 to ±8VDC / maximum torque (input impedance 10-12kΩ)
Speed Limit (Torque Mode)	Set by parameters or external analog input (0 to ±10VDC / rated speed)
Structure / Cooling	Self-cooled open type (IP00)
Ambient Temperature	0 to 55°C (operation); -20 to 65°C (storage)
Ambient Humidity	90% RH max (non-condensing) for operation and storage
Atmosphere	Indoors, no direct sunlight, no corrosive/inflammable gas, oil mist, or dust
Elevation	1000 m or less above sea level
Vibration Resistance	5.9 m/s² maximum
Weight	1.0 kg (2.2 lb)
