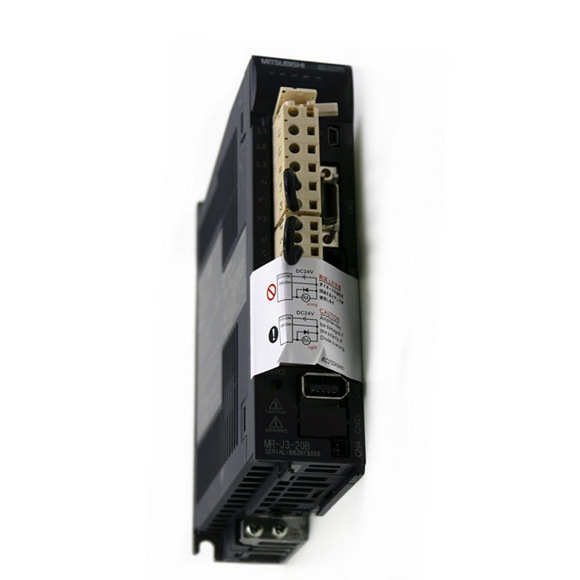

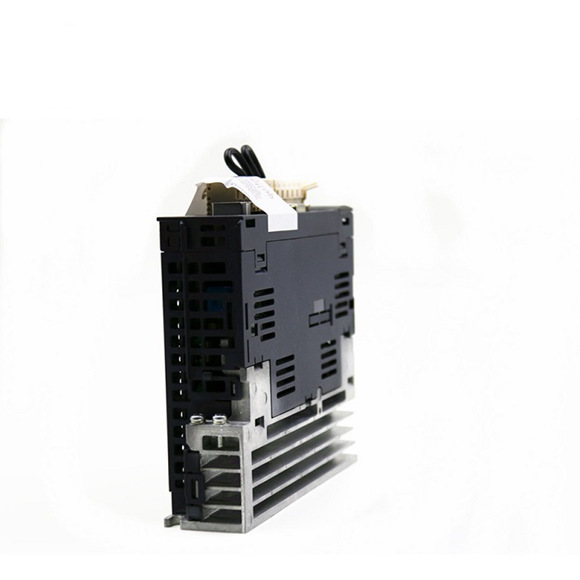

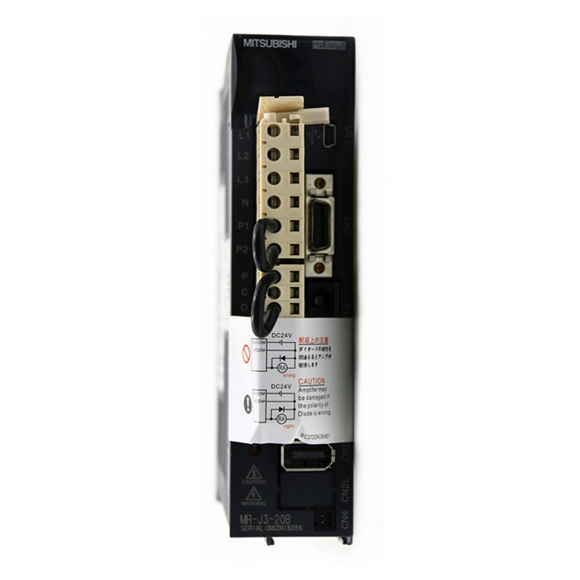

Mitsubishi MR-J3-20B Servo Drive

Series#: Mitsubishi

Product Details

MITSUBISHI SERVO DRIVE MR-J3-20B – High-performance 200W servo amplifier for precision motion control.
Advanced sine-wave PWM control with current control system for smooth, accurate operation.
Built-in dynamic brake and comprehensive safety features including overcurrent, overload, and encoder fault protection.
Supports position, speed, and torque control modes with high-resolution 262144 p/rev feedback.
Wide input voltage range: 3-phase 200-230VAC or 1-phase 200-230VAC, with ±5% frequency tolerance.
Compact, self-cooled IP00 design, ideal for integration into industrial automation systems.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi Servo Drive MR-J3-20B is a state-of-the-art 200W servo amplifier engineered for demanding industrial automation applications. This model, part of the renowned MR-J3 series, delivers exceptional precision and reliability through its sine-wave PWM control and current control system. With a built-in dynamic brake and robust safety mechanisms, the MR-J3-20B ensures stable operation under varying loads and environmental conditions. Its versatile control modes—position, speed, and torque—make it suitable for a wide range of machinery, from CNC machines to packaging equipment. The drive supports high-resolution encoder feedback (262144 p/rev) and a maximum input pulse frequency of 1Mpps (differential receiver), enabling precise positioning and speed regulation. Designed for easy integration, it operates on 3-phase 200-230VAC or 1-phase 200-230VAC power, with permissible voltage fluctuation of 170-253VAC. The self-cooling IP00 enclosure ensures reliable performance in indoor environments without corrosive gases or dust. This unit is 100% original and new, backed by Mitsubishi Electric's quality standards, and available for immediate shipment.

Parameter	MR-J3-20B Specification
Model	MR-J3-20B (200W Servo Amplifier)
Control System	Sine-wave PWM control, current control system
Power Supply Voltage/Frequency	3-phase 200-230VAC 50/60Hz or 1-phase 200-230VAC 50/60Hz
Permissible Voltage Fluctuation	3-phase: 170-253VAC; 1-phase: 170-253VAC
Permissible Frequency Fluctuation	±5% maximum
Power Consumption	30W (typical for 200W class)
Interface Power Supply	24VDC ±10%, required current capacity 300mA
Built-in Regenerative Resistor	10 ohms (standard for 200W models)
Dynamic Brake	Built-in
Safety Features	Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, undervoltage, overspeed, excess error protection
Maximum Input Pulse Frequency	1Mpps (differential receiver), 200kpps (open collector)
Positioning Feedback Pulse	262144 p/rev (encoder resolution per motor rotation)
Command Pulse Multiple (Electronic Gear)	A: 1 to 1048576, B: 1 to 1048576, 1/10 < A/B < 2000
Positioning Complete Width Setting	0 to ±10000 pulses (command pulse unit)
Excess Error	±3 rotations
Torque Limit	Set by parameters or external analog input (0 to +10VDC/maximum torque)
Speed Control Range	Analog speed command 1:2000, internal speed command 1:5000
Analog Speed Command Input	0 to ±10VDC/rated speed
Speed Fluctuation Rate	±0.01% max (load fluctuation 0-100%), 0% (power fluctuation ±10%), ±0.2% max (ambient temp 25°C±10°C)
Analog Torque Command Input	0 to ±8VDC/maximum torque (input impedance 10-12kΩ)
Speed Limit (Torque Control Mode)	Set by parameters or external analog input (0 to ±10VDC/rated speed)
Structure	Self-cooling, open type (IP00)
Ambient Temperature	0 to 55°C (32-131°F) operating; -20 to 65°C (-4-149°F) storage
Ambient Humidity	90% RH max (non-condensing) operating and storage
Atmosphere	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist, or dust
Elevation	1000m or less above sea level
Vibration	5.9m/s² maximum
Weight	0.8 kg (1.8 lb)
