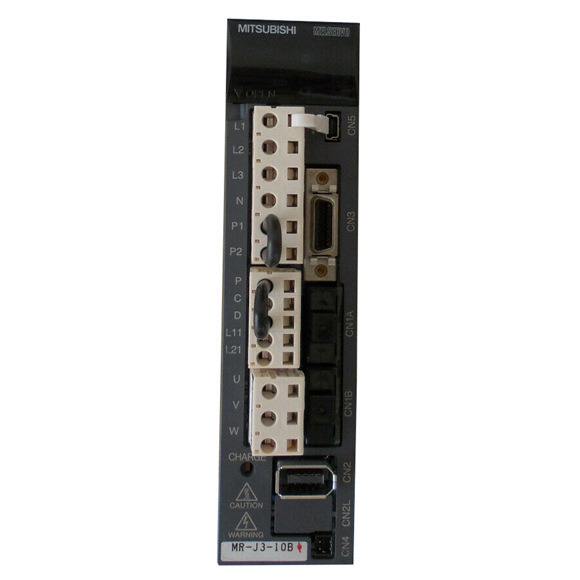

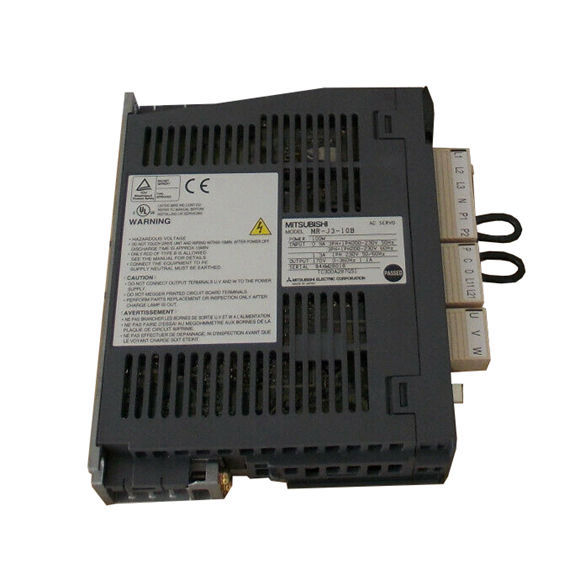

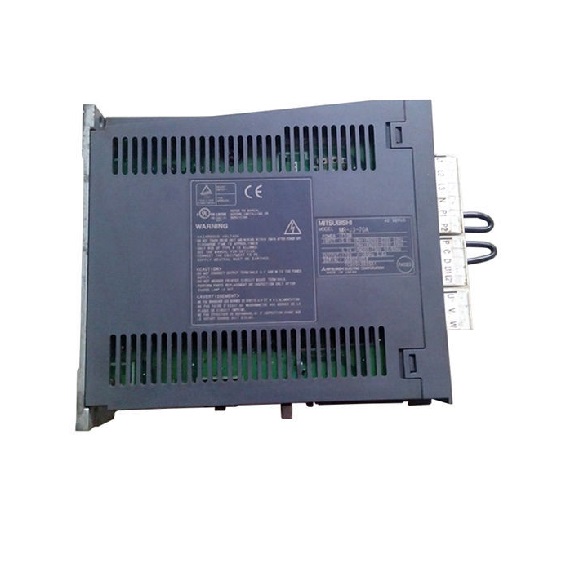

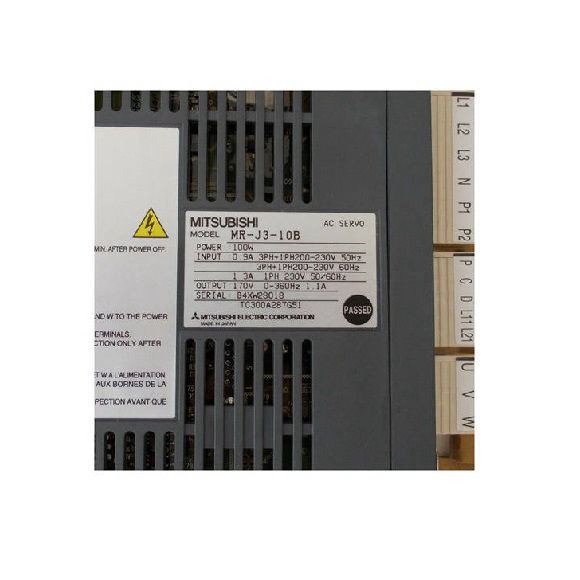

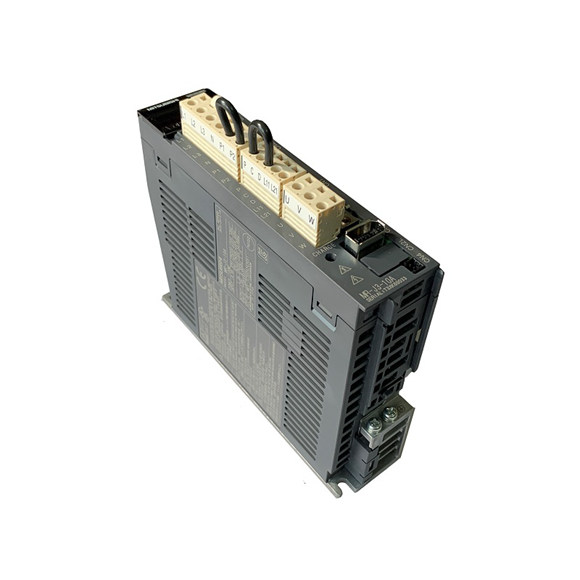

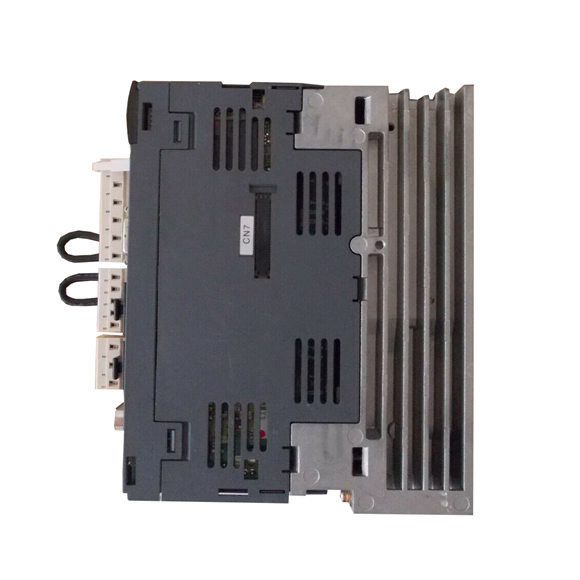

Mitsubishi MR-J3-10B Servo Drive

Series#: Mitsubishi

Product Details

High-performance Mitsubishi Servo Drive MR-J3-10B, rated for 100W output power.
Compact self-cooling design (IP00) for reliable operation in tight spaces.
Supports position, speed, and torque control modes with high precision.
Built-in dynamic brake and comprehensive safety protections for enhanced uptime.
Wide input voltage range: 1-phase 200-230VAC or 3-phase 200-230VAC, 50/60Hz.
High-resolution encoder feedback: 262144 pulses/rev for ultra-smooth motion.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi Servo Drive MR-J3-10B is a state-of-the-art AC servo amplifier designed for demanding industrial automation applications. This 100W model delivers exceptional motion control with sine-wave PWM technology, offering seamless integration with Mitsubishi MR-J3 series servo motors. Whether used in precision machining, packaging, or robotics, the MR-J3-10B ensures reliable performance with advanced safety features and flexible control modes. Its self-cooling, open-type structure (IP00) allows for easy mounting in control cabinets, while the robust encoder feedback ensures accurate positioning down to 262144 pulses per revolution.

Specification	MR-J3-10B (100W)
Power Supply (Main)	1-phase 200-230VAC or 3-phase 200-230VAC, 50/60Hz
Permissible Voltage Fluctuation	1-phase 170-253VAC / 3-phase 170-253VAC
Permissible Frequency Fluctuation	±5% max.
Power Consumption	30W
Interface Power Supply	24VDC ±10%, 300mA required
Built-in Regenerative Resistor	Not included (external optional)
Control System	Sine-wave PWM current control
Dynamic Brake	Built-in
Safety Features	Overcurrent, overvoltage, overload (electronic thermal), motor overheat, encoder fault, undervoltage, overspeed, excess error
Max Input Pulse Frequency	1Mpps (differential) / 200kpps (open collector)
Positioning Feedback Pulse	262144 pulses/rev (encoder resolution)
Command Pulse Multiple (Electronic Gear)	A: 1-1048576, B: 1-1048576, ratio 1/10 to 2000
Positioning Complete Width	0 to ±10000 pulses
Excess Error Setting	±3 rotations
Torque Limit	Set via parameter or external analog (0-10VDC)
Speed Control Range	1:2000 (analog), 1:5000 (internal)
Analog Speed Command	0 to ±10VDC / rated speed
Speed Fluctuation Rate	±0.01% (load), 0% (power), ±0.2% (temp)
Torque Control Mode	Analog torque command: 0 to ±8VDC / max torque
Speed Limit in Torque Mode	Set via parameter or external analog (0-10VDC)
Structure	Self-cooling open (IP00)
Ambient Temperature	0 to 55°C (operation); -20 to 65°C (storage)
Ambient Humidity	90% RH max (non-condensing)
Atmosphere	Indoors, no corrosive gas or dust
Elevation	≤1000m above sea level
Vibration	5.9 m/s² max
Weight	0.8 kg (1.8 lb)
