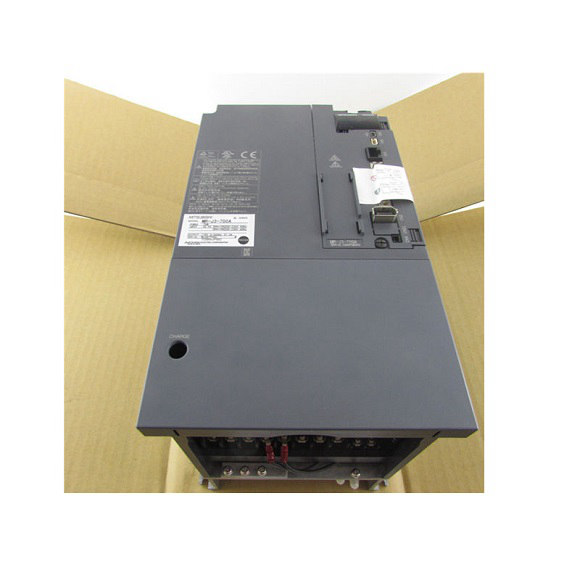

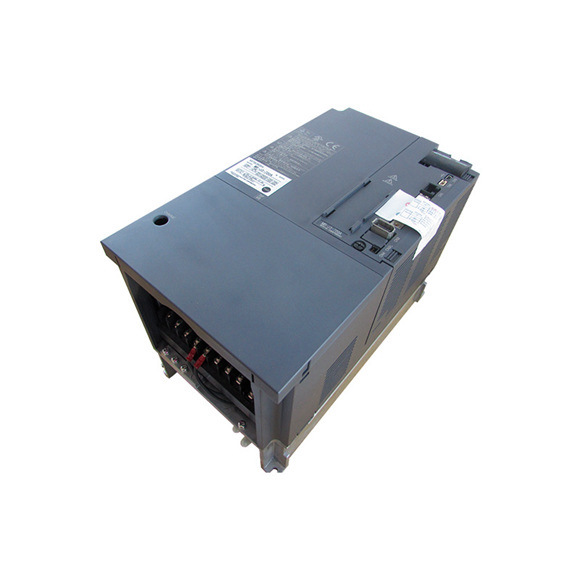

Mitsubishi MR-J3-700A Servo Drive

Series#: Mitsubishi

Product Details

MITSUBISHI SERVO DRIVE MR-J3-700A – High-performance 7.5kW servo amplifier for precision motion control.
Advanced Sine-wave PWM control system with built-in dynamic brake for reliable stopping.
Supports position, speed, and torque control modes with electronic gear and analog inputs.
Robust safety features: overcurrent, overvoltage, overload, encoder fault, and undervoltage protection.
Compact fan-cooled IP00 design with wide ambient temperature range (0 to 55°C).
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi Servo Drive MR-J3-700A is a 7.5kW industrial servo amplifier designed for demanding automation applications. It delivers exceptional performance with a sine-wave PWM current control system, supporting precise positioning, speed regulation, and torque control. This model is engineered for 3-phase 200 to 230VAC input, featuring a built-in regenerative resistor (170W) and external regenerative resistor capability for higher power models. With a maximum input pulse frequency of 1Mpps (differential) and encoder resolution of 262144 p/rev, the MR-J3-700A ensures high-speed, accurate motion in CNC, robotics, and packaging machinery. It includes comprehensive protection functions and operates reliably in industrial environments from 0 to 55°C.

Parameter	Specification (MR-J3-700A)

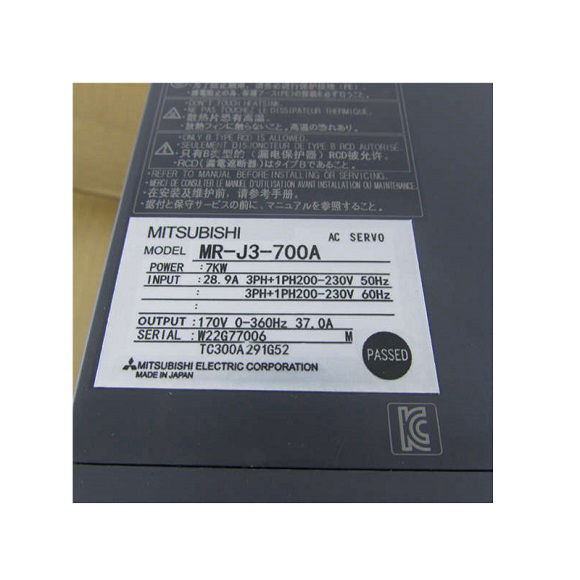

Servo Amplifier Model	MR-J3-700A
Rated Power Output	7.5 kW (10 HP)
Main Circuit Power Supply	3-phase 200 to 230VAC, 50/60Hz
Permissible Voltage Fluctuation	3-phase 170 to 253VAC
Permissible Frequency Fluctuation	±5% maximum
Control Power Supply (Interface)	24VDC ±10%, 300mA required
Power Consumption	45 W (typical)
Control System	Sine-wave PWM, current control
Dynamic Brake	Built-in
Built-in Regenerative Resistor	170 W (standard)
External Regenerative Resistor (Optional)	Not applicable for this model (standard accessory not provided)
Maximum Input Pulse Frequency	1 Mpps (differential receiver), 200 kpps (open collector), 4 Mpps (option)
Encoder Resolution	262144 p/rev (per motor rotation)
Electronic Gear Ratio	A: 1 to 1048576, B: 1 to 1048576, 1/10 < A/B < 2000
Positioning Complete Width	0 to ±10000 pulses (command pulse unit)
Excess Error Range	±3 rotations
Torque Limit (All Modes)	Set by parameters or external analog input (0 to +10VDC)
Speed Control Range	Analog: 1:2000, Internal: 1:5000
Analog Speed Command Input	0 to ±10VDC / rated speed
Speed Fluctuation Rate	±0.01% (load 0-100%), ±0.2% (ambient 25°C±10°C)
Analog Torque Command Input	0 to ±8VDC / maximum torque (impedance 10-12kΩ)
Speed Limit (Torque Mode)	Set by parameters or analog input (0 to ±10VDC)
Protection Features	Overcurrent, regeneration overvoltage, overload (electronic thermal), motor overheat, encoder fault, undervoltage, overspeed, excess error
Structure / Cooling	Fan cooling, open type (IP00)
Ambient Temperature	0 to 55°C (operation), -20 to 65°C (storage)
Ambient Humidity	90% RH max (non-condensing)
Atmosphere	Indoor, no corrosive gas, oil mist, or dust
Elevation	1000 m or less above sea level
Vibration Resistance	5.9 m/s² maximum
Weight	6 kg (13.2 lb)
