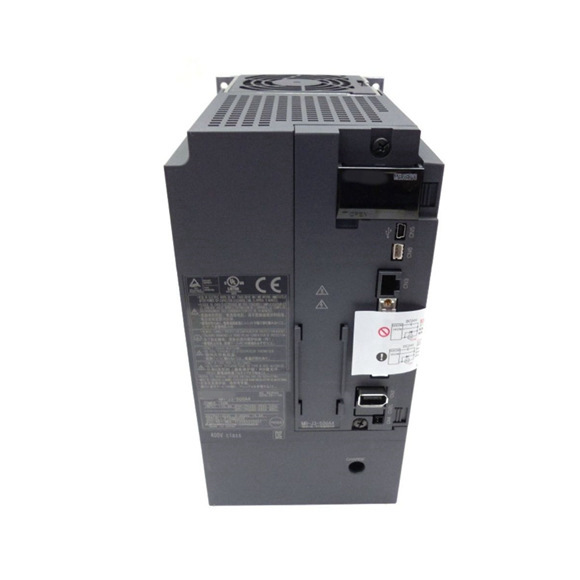

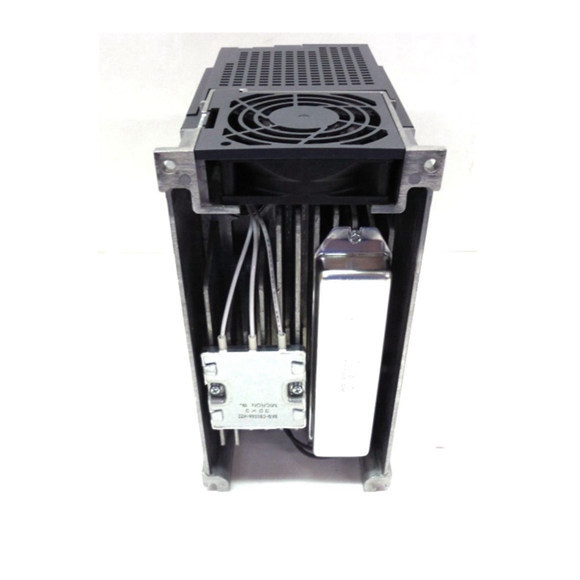

Mitsubishi MR-J3-500A Servo Drive

Series#: Mitsubishi

Product Details

High-power Mitsubishi Servo Drive MR-J3-500A, rated for 5KW output, delivering robust motion control for demanding industrial applications.
Supports 3-phase 200 to 230VAC input with a permissible voltage fluctuation of 170 to 253VAC, ensuring stable operation under varying line conditions.
Features sine-wave PWM control and current control system for precise torque, speed, and position regulation.
Built-in dynamic brake for safe and rapid deceleration, enhancing system reliability and operator safety.
Equipped with comprehensive safety features including overcurrent, overvoltage, overload, and encoder fault protection.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi Servo Drive MR-J3-500A is a high-performance AC servo amplifier designed for precise and efficient motion control in advanced automation systems. This 5KW model, part of the renowned MR-J3 series, delivers exceptional torque and speed accuracy, making it ideal for applications such as CNC machinery, robotics, and packaging equipment. With a compact, fan-cooled open design (IP00), it offers reliable operation in demanding environments, supporting a wide input voltage range of 3-phase 200 to 230VAC. The drive integrates advanced safety protocols and a robust dynamic brake, ensuring both operational integrity and personnel protection. Below are the detailed technical specifications for the MR-J3-500A and related models.

Parameter	MR-J3-500A (5KW)	Other Models (e.g., MR-J3-10A to MR-J3-22KA)
Voltage/Frequency	3-phase 200 to 230VAC, 50/60Hz	3-phase 200 to 230VAC or 1-phase 100 to 230VAC (depending on model)
Permissible Voltage Fluctuation	3-phase 170 to 253VAC	3-phase 170 to 253VAC or 1-phase 85 to 253VAC (depending on model)
Permissible Frequency Fluctuation	±5% maximum	±5% maximum
Power Consumption	45W	30W to 45W (depending on model)
Interface Power Supply	24VDC ±10% (required current capacity: 300mA)	24VDC ±10% (required current capacity: 300mA)
Built-in Regenerative Resistor	130 ohms	10 to 170 ohms (depending on model)
External Regenerative Resistor (Standard Accessory)	Not applicable	Available for select models (e.g., 500 to 850 ohms)
Control System	Sine-wave PWM control/current control system	Sine-wave PWM control/current control system
Dynamic Brake	Built-in	Built-in or external option (depending on model)
Safety Features	Overcurrent, overvoltage, overload, encoder fault, regeneration fault, undervoltage, overspeed, excess error protection	Same as MR-J3-500A
Maximum Input Pulse Frequency	1Mpps (differential receiver), 200kpps (open collector), (4Mpps optional)	Same as MR-J3-500A
Positioning Feedback Pulse	Resolution per encoder rotation: 262144 p/rev	Same as MR-J3-500A
Command Pulse Multiple	Electronic gear A/B multiple, A: 1 to 1048576, B: 1 to 1048576, 1/10 < A/B < 2000	Same as MR-J3-500A
Positioning Complete Width Setting	0 to ±10000 pulses (command pulse unit)	Same as MR-J3-500A
Excess Error	±3 rotations	Same as MR-J3-500A
Torque Limit	Set by parameters or external analog input (0 to +10VDC/maximum torque)	Same as MR-J3-500A
Speed Control Range	Analog speed command 1:2000, internal speed command 1:5000	Same as MR-J3-500A
Analog Speed Command Input	0 to ±10VDC/rated speed (adjustable via parameter)	Same as MR-J3-500A
Speed Fluctuation Rate	±0.01% max (load fluctuation 0 to 100%), 0% (power fluctuation ±10%), ±0.2% max (ambient temperature 25°C±10°C)	Same as MR-J3-500A
Analog Torque Command Input	0 to ±8VDC/maximum torque (input impedance 10 to 12kΩ)	Same as MR-J3-500A
Speed Limit	Set by parameters or external analog input (0 to ±10VDC/rated speed)	Same as MR-J3-500A
Structure	Fan cooling open (IP00)	Self-cooling open (IP00) or fan cooling open (IP00) (depending on model)
Ambient Temperature	0 to 55°C (32 to 131°F) (non-freezing), storage: -20 to 65°C (-4 to 149°F)	Same as MR-J3-500A
Ambient Humidity	90% RH maximum (non-condensing), storage: 90% RH maximum	Same as MR-J3-500A
Atmosphere	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust	Same as MR-J3-500A
Elevation	1000m or less above sea level	Same as MR-J3-500A
Vibration	5.9m/s² maximum	Same as MR-J3-500A
Weight	4.6 kg (10 lb)	0.8 kg to 6 kg (depending on model)
