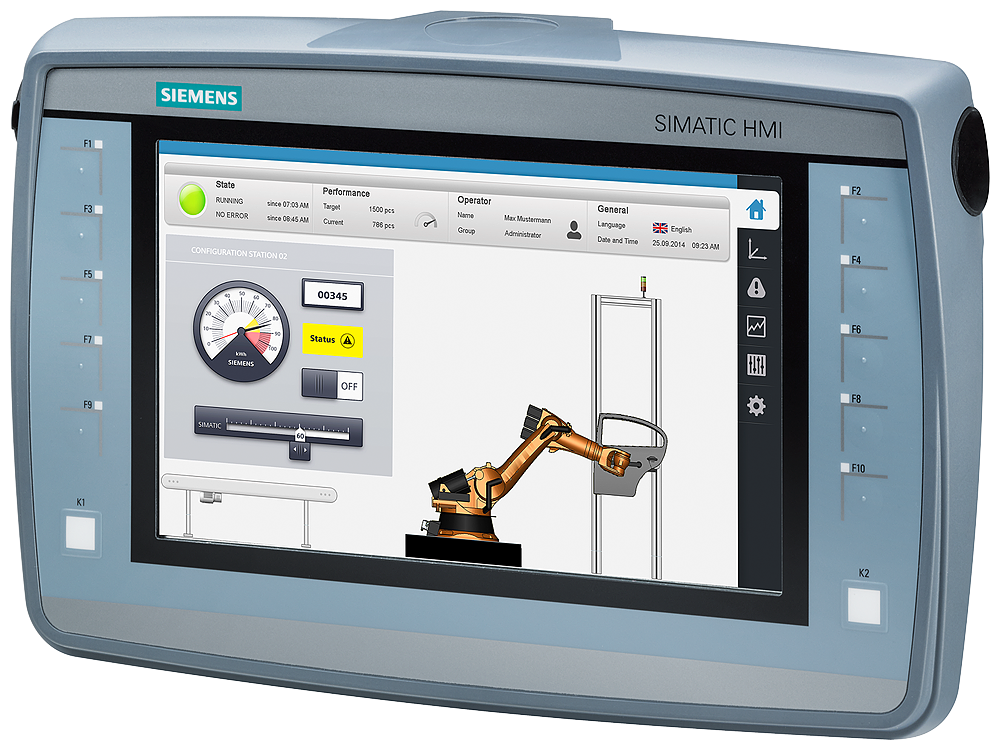

The SIMATIC HMI KTP900 9" Mobile Panel Touch Screen (6AV2125-2JB03-0AX0) is a versatile and robust operator interface designed for mobile applications in factory automation. Combining a high-resolution 9-inch TFT widescreen display with LED backlighting and a 16.7 million color palette, this panel delivers exceptional visual clarity for real-time process monitoring. Its unique blend of touch-screen functionality, 10 illuminated function keys, and 32 direct touch buttons ensures flexible and efficient machine control. Engineered for reliability, the KTP900 Mobile operates on a 24V DC supply with a wide tolerance range, making it suitable for harsh industrial conditions. This unit is 100% original and new, sourced directly from the manufacturer, and is available for fast global shipping.
| Parameter |
Specification |
| Product Type Designation |
KTP900 Mobile |
| Display Design |
TFT widescreen display, LED backlighting |
| Screen Diagonal |
9 in |
| Color Display |
Yes |
| Number of Colors |
16,777,216 |
| Horizontal Image Resolution |
800 Pixel |
| Vertical Image Resolution |
480 Pixel |
| MTBF Backlighting (at 25°C) |
50,000 h |
| Backlight Dimmable |
Yes; 0-100% |
| Number of Function Keys |
10 |
| Number of Function Keys with LEDs |
10 |
| Keys with LED |
Yes |
| Numeric Keyboard |
Yes; Onscreen keyboard |
| Alphanumeric Keyboard |
No |
| Design as Touch Screen |
Yes |
| Design as Multi-Touch Screen |
No |
| Stop Button (forced blocking) |
No |
| Emergency Stop Button (illuminated and forced blocking) |
No |
| Acknowledgement Button (3-stage) |
No |
| Key-Operated Switch |
No |
| Illuminated Pushbutton |
Yes |
| Integrated Camera |
No |
| DP Direct LEDs (LEDs as S7 output I/O) – F1…Fx |
10 |
| Direct Keys (keys as S7 input I/O) – F1…Fx |
10 |
| Direct Keys (touch buttons as S7 input I/O) |
32 |
| Type of Supply Voltage |
DC |
| Rated Value (DC) |
24 V |
| Permissible Range, Lower Limit (DC) |
19.2 V |
| Permissible Range, Upper Limit (DC) |
28.8 V |
| Current Consumption (Rated Value) |
450 mA |
| Starting Current Inrush I²t |
0.135 A²·s |
- Display & Visuals: 9-inch TFT widescreen with LED backlighting, 800x480 resolution, and 50,000-hour MTBF at 25°C. Fully dimmable (0-100%) for optimal readability in varying light conditions.
- Input & Control: Combines touch screen with 10 illuminated function keys, 10 direct hardware keys, and 32 direct touch buttons for S7 I/O integration. Onscreen numeric keyboard included.
- Power & Electrical: DC supply (24V nominal, 19.2-28.8V range) with a rated current of 450 mA and low inrush current (0.135 A²·s) for stable startup.
- Safety & Features: No emergency stop, stop, or key-operated switch; includes illuminated pushbutton for operator feedback. No multi-touch or integrated camera.
- Build & Reliability: Designed for mobile industrial use with robust construction. 100% original and new, backed by manufacturer quality standards.
