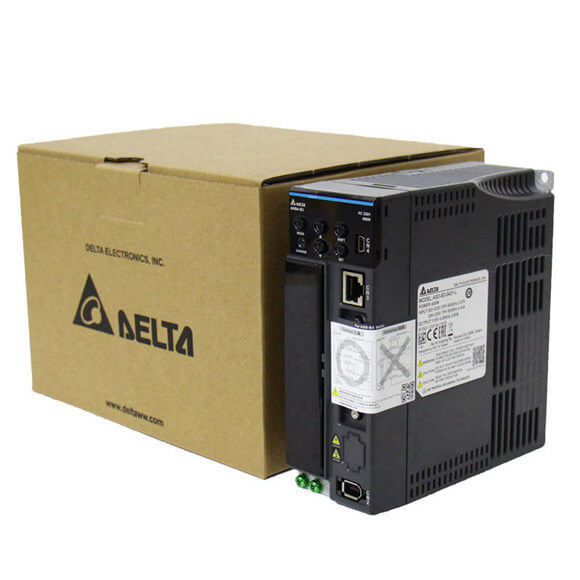

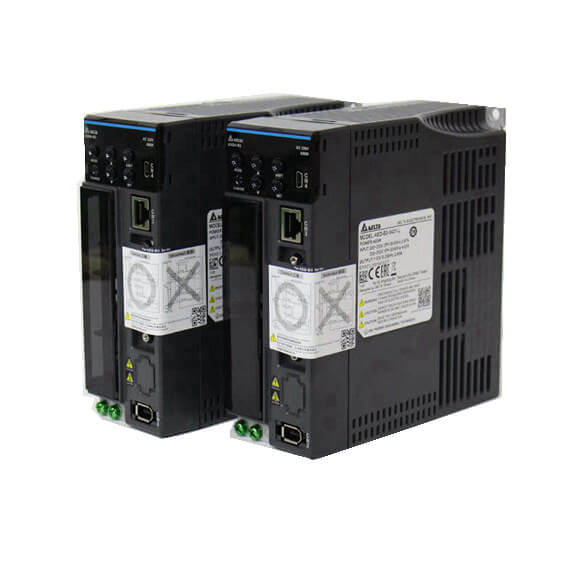

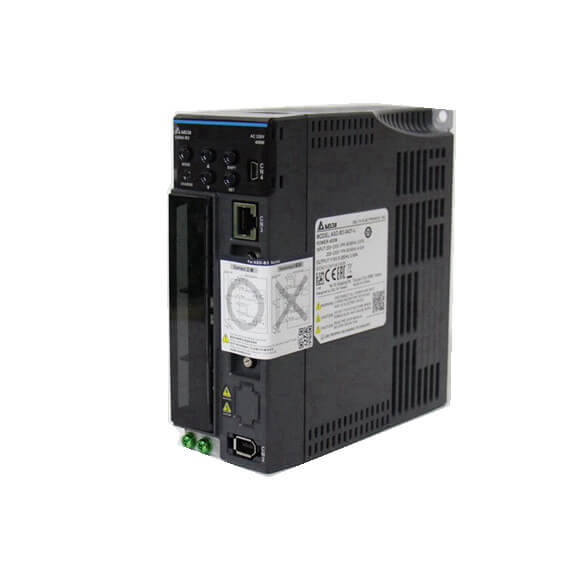

Delta ASD-B3-0721-L Servo Drive

Series#: Delta

Product Details

Model: DELTA ASDA-B3 Servo Drive 750W ASD-B3-0721-L – High-performance motion control solution for precision automation.
24-bit High-Resolution Encoder Support – 16,777,216 pulses per revolution for ultra-smooth, accurate positioning.
Multi-Protocol Communication – Built-in USB, RS-485, CANopen, DMCNET, and EtherCAT for flexible system integration.
Advanced Auto-Tuning & Filtering – Auto/manual tuning modes with low-pass, S-curve, and moving filters for optimized performance.
Robust Protection Suite – Overcurrent, overvoltage, overload, encoder error, and short-circuit protection ensure reliable 24/7 operation.
Compact 750W Power – Single-phase or three-phase 220VAC input with fan cooling; ideal for compact machine designs.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Delta ASDA-B3 Series represents a leap forward in servo drive technology, and the ASD-B3-0721-L 750W model is engineered to deliver exceptional torque and speed control for demanding industrial applications. With a 24-bit absolute encoder interface and support for multiple fieldbus protocols, this drive excels in high-speed pick-and-place, packaging, and CNC machinery. Its advanced auto-tuning algorithms and built-in regenerative resistor (for 750W and above) simplify setup while maximizing energy efficiency. The drive’s rugged IP20 enclosure and wide operating temperature range (0°C to 55°C) ensure stable performance in harsh factory environments. Below are the complete technical specifications for the 750W variant, covering electrical, mechanical, and environmental parameters.

Parameter	Specification (750W Model)
Rated Power	750 W
Phase / Voltage	Single-phase / Three-phase 200–230 VAC, -15% to 10%
Input Current (3PH)	8.76 Arms
Input Current (1PH)	16.68 Arms
Continuous Output Current	5.1 Arms
Max. Instantaneous Output Current	16.4 Arms
Cooling Method	Fan cooling
Drive Resolution	24-bit (16,777,216 pls/rev)
Main Circuit Control	SVPWM control
Tuning Mode	Auto / Manual
Regenerative Resistor	Built-in
Pulse Type (Pulse Control Mode)	Pulse + Direction; A phase + B phase; CCW pulse + CW pulse
Max. Output Pulse Frequency (Pulse Control Mode)	Pulse + direction: 4 Mpps; CCW pulse + CW pulse: 4 Mpps; A phase + B phase: single-phase 4 Mpps; Open collector: 200 Kpps
Command Source	External pulse (pulse control mode) / Internal register (PR mode)
Smoothing Method	Low-pass, S-curve, and moving filters
E-Gear Ratio	N/M times, limited to (1/4 < N/M < 262144); N: 1–536870911 / M: 1–2147483647
Torque Limit	Parameter settings
Feed Forward Compensation	Parameter settings
Analog Monitor Output	Monitoring signal set with parameters; voltage output range: ±8V; resolution: 10-bit
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Regeneration error, Overload, Excessive speed deviation, Excessive position deviation, Encoder error, Adjustment error, Emergency stop, Forward/reverse limit error, Serial communication error, RST leak phase, Serial communication timeout, Short-circuit protection for terminals U, V, W
Communication Interfaces	USB, RS-485, CANopen, DMCNET, EtherCAT
Installation Site	Indoors (avoid direct sunlight), no corrosive vapor (avoid fumes, flammable gases, and dust)
Altitude	2000 m or lower above sea level
Atmospheric Pressure	86 kPa – 106 kPa
Operating Temperature	0°C to 55°C (if above 45°C, forced cooling required)
Storage Temperature	-20°C to 65°C
Humidity	0 to 90% RH (non-condensing)
Vibration	9.80665 m/s² (1 G) less than 20 Hz; 5.88 m/s² (0.6 G) 20 to 50 Hz
IP Rating	IP20
Power System	TN system
Certifications	IEC/EN 61800-5-1, UL 508C
