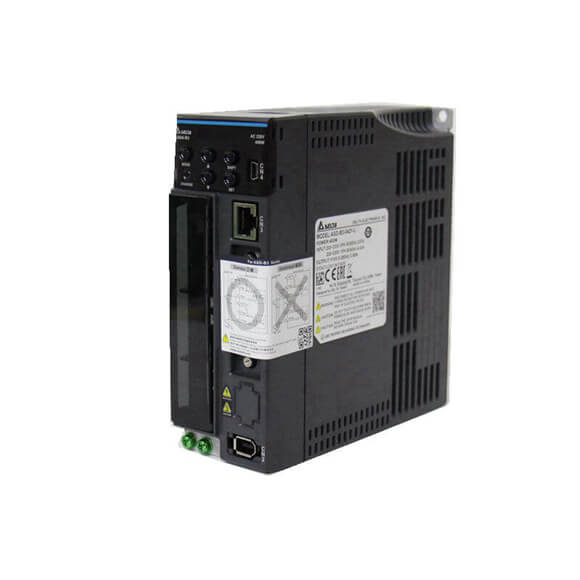

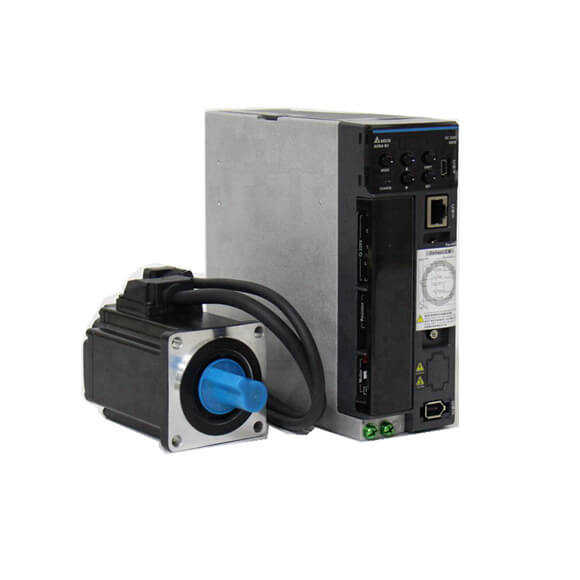

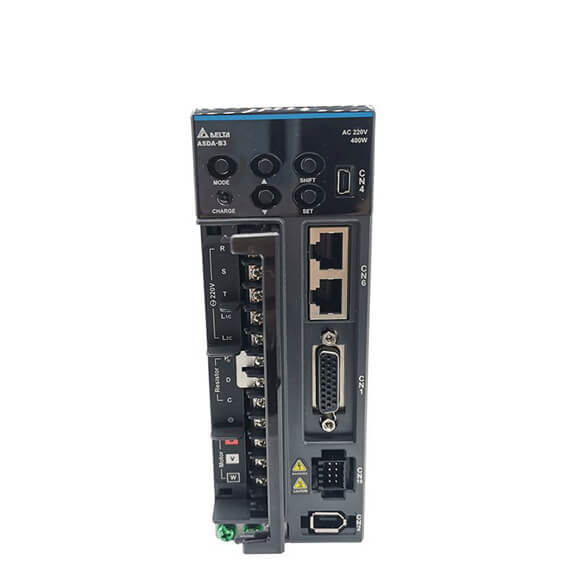

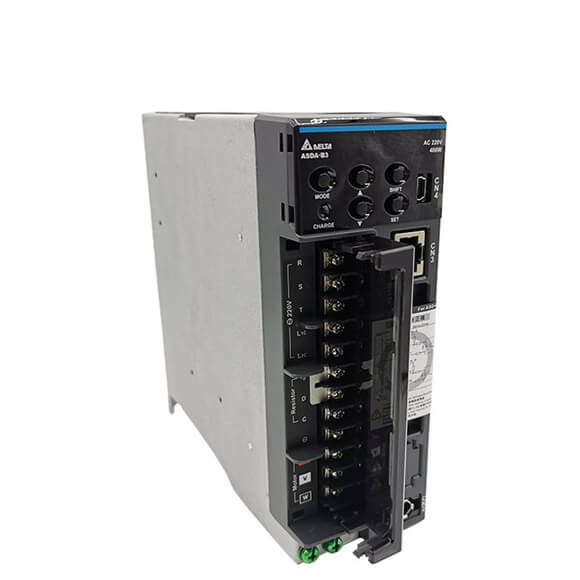

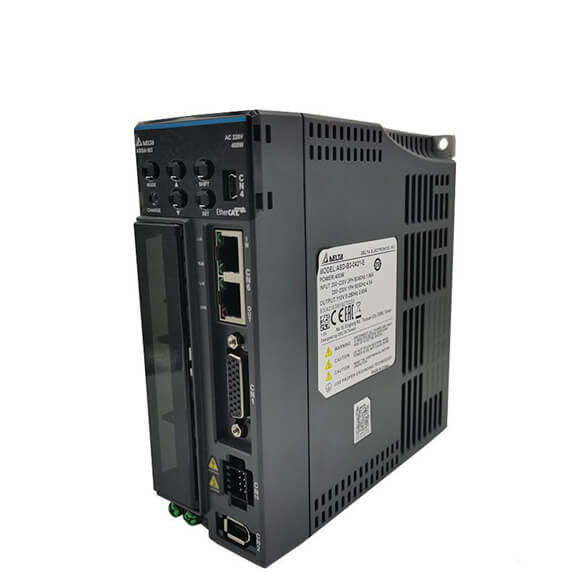

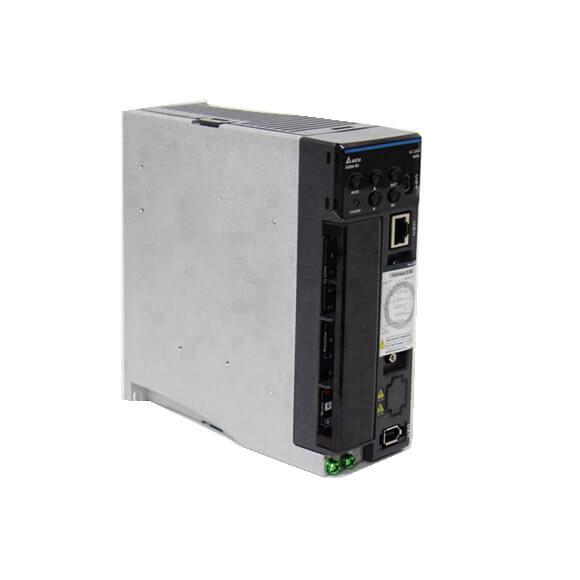

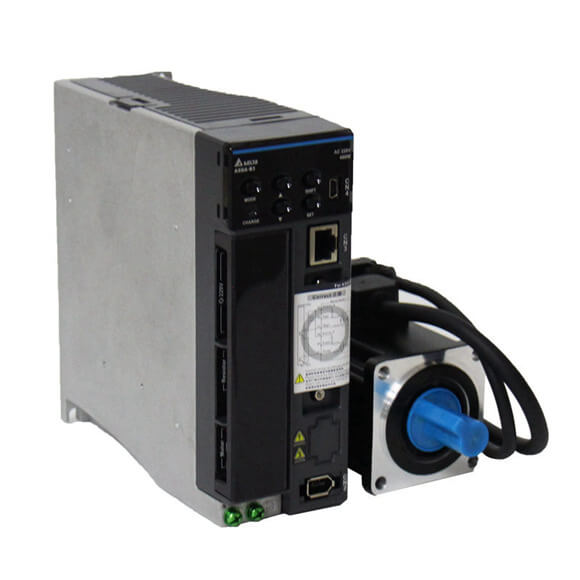

The Delta ASDA-B3 series represents a leap in servo drive technology, and the 400W model ASD-B3-0421-L is engineered for demanding industrial automation tasks. Featuring a 24-bit absolute encoder interface, this drive delivers exceptional precision and smoothness at low speeds, making it ideal for applications like packaging, robotics, and CNC machinery. Its compact, IP20-rated design supports both single-phase and three-phase 220VAC inputs, with natural cooling for reliable operation up to 45°C. The drive offers versatile command sources, including external pulse trains and internal PR mode, with a maximum pulse frequency of 4 Mpps. With built-in S-curve and moving filters, torque limit, and feedforward compensation, the ASD-B3-0421-L ensures superior dynamic response and stability. Robust protection functions safeguard against electrical and mechanical faults, while communication options like EtherCAT and CANopen enable seamless integration into modern networked systems.
| Parameter |
Specification |
| Model |
ASD-B3-0421-L (400W) |
| Rated Power |
400 W |
| Phase / Voltage |
Single-phase / Three-phase 200–230VAC, -15% to 10% |
| Input Current (3PH) |
4.32 Arms |
| Input Current (1PH) |
8.28 Arms |
| Continuous Output Current |
2.65 Arms |
| Max. Instantaneous Output Current |
10.6 Arms |
| Cooling Method |
Natural cooling |
| Drive Resolution |
24-bit (16,777,216 pls/rev) |
| Main Circuit Control |
SVPWM control |
| Tuning Mode |
Auto / Manual |
| Regenerative Resistor |
Built-in |
| Pulse Type (Pulse Control Mode) |
Pulse + Direction; A phase + B phase; CCW pulse + CW pulse |
| Max. Output Pulse Frequency |
Pulse + direction: 4 Mpps; CCW pulse + CW pulse: 4 Mpps; A phase + B phase: single-phase 4 Mpps; Open collector: 200 Kpps |
| Command Source |
External pulse (pulse control mode) / Internal register (PR mode) |
| Smoothing Method |
Low-pass, S-curve, and moving filters |
| E-Gear Ratio |
N/M times (1/4 < N/M < 262144); N: 1–536870911 / M: 1–2147483647 |
| Torque Limit |
Parameter settings |
| Feed Forward Compensation |
Parameter settings |
| Analog Monitor Output |
±8V, resolution: 10-bit |
| Protection Functions |
Overcurrent, Overvoltage, Undervoltage, Overheat, Regeneration error, Overload, Excessive speed deviation, Excessive position deviation, Encoder error, Adjustment error, Emergency stop, Forward/reverse limit error, Serial communication error, RST leak phase, Serial communication timeout, Short-circuit protection for U, V, W |
| Communication Interface |
USB / RS-485 / CANopen / DMCNET / EtherCAT |
| Installation Site |
Indoors (avoid direct sunlight), no corrosive vapor |
| Altitude |
2000 m or lower above sea level |
| Atmospheric Pressure |
86 kPa – 106 kPa |
| Operating Temperature |
0°C to 55°C (forced cooling if >45°C) |
| Storage Temperature |
-20°C to 65°C |
| Humidity |
0 to 90% RH (non-condensing) |
| Vibration |
9.80665 m/s² (<20 Hz), 5.88 m/s² (20–50 Hz) |
| IP Rating |
IP20 |
| Power System |
TN system |
| Certifications |
IEC/EN 61800-5-1, UL 508C |
