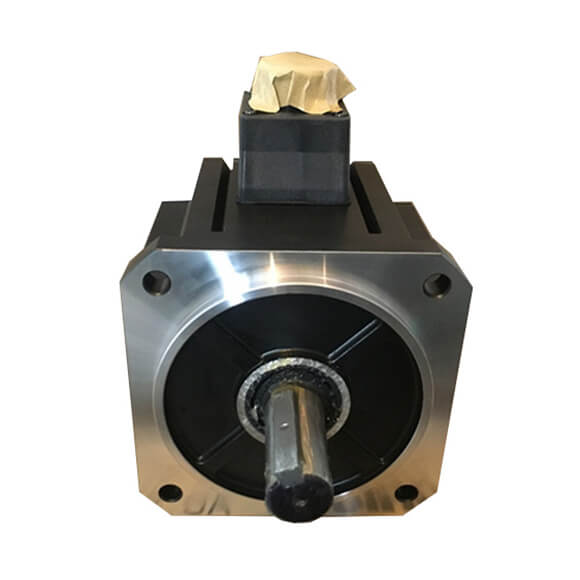

The PANASONIC SERVO MOTOR MINAS A6 1500W MHMF152L1G6M is a high-performance AC servo motor designed for demanding industrial automation tasks such as CNC machinery, robotics, and packaging systems. This model features a 1500W rated output at 200V AC, coupled with a 23-bit absolute encoder that provides precise position feedback without the need for homing after power loss. Its robust construction includes a keyed shaft with oil seal, ensuring reliable operation in harsh environments. The integrated electromagnetic brake offers secure holding torque, making it suitable for vertical load applications. With its compact 80mm flange and standard connector interface, the MHMF152L1G6M integrates seamlessly into existing systems, delivering smooth, low-vibration motion control.
| Parameter |
Specification |
| Model |
MHMF152L1G6M |
| Series |
MINAS A6 |
| Rated Output Power |
1500 W |
| Power Supply |
200 V AC (3-phase) |
| Rated Torque |
7.16 N·m |
| Peak Torque |
21.5 N·m |
| Rated Speed |
2000 rpm |
| Maximum Speed |
3000 rpm |
| Encoder Type |
23-bit Absolute Encoder (131072 pulses/rev) |
| Brake |
Integrated Electromagnetic Brake (holding torque: 7.16 N·m) |
| Flange Size |
80 mm square (IEC standard) |
| Shaft Type |
Keyed Shaft with Oil Seal |
| Shaft Diameter |
19 mm |
| Insulation Class |
Class F (155°C) |
| Protection Rating |
IP67 (shaft end and connector) |
| Weight |
Approx. 5.8 kg |
| Ambient Temperature |
0 to 40°C (operation) |
| Vibration Grade |
V15 (low vibration) |
| Connector Type |
Standard MINAS A6 connector (power and encoder) |
| Compatible Drive |
PANASONIC MINAS A6 Series (e.g., MBDLN25SE) |
