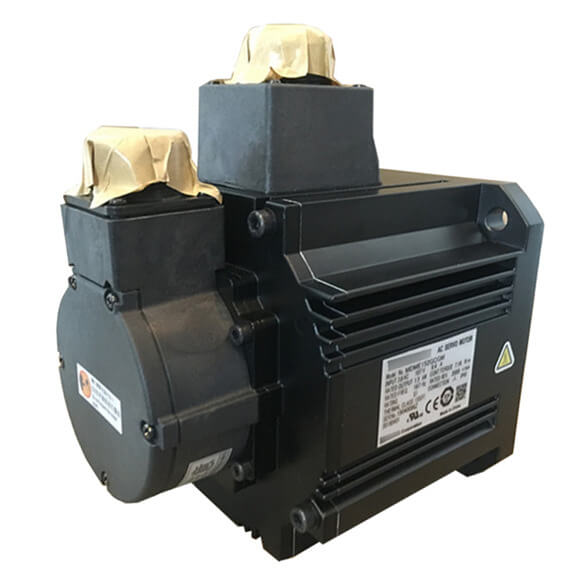

Panasonic MDMF302L1G6M Servo Motor

Series#: Panasonic

Product Details

Panasonic MINAS A6 3KW Servo Motor Model MDMF302L1G6M – High-performance AC servo solution for demanding industrial automation.
Rated output of 3000W and rated torque of 9.55 Nm, delivering robust and precise motion control.
Equipped with a 23-bit absolute rotary encoder for exceptional accuracy and repeatability in positioning applications.
Supports maximum rotational speed up to 5000 r/min, with a continuous stall torque of 11 Nm for sustained heavy loads.
IP67 protection rating ensures reliable operation in harsh environments, including dust and water exposure.
Compatible with AC200V power supply and designed for F-frame mounting, ideal for multi-function and RS485 communication setups.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Panasonic MINAS A6 series represents the pinnacle of servo motor engineering, and the MDMF302L1G6M model is a 3-kilowatt powerhouse engineered for precision motion control in industrial automation systems. This AC servo motor, operating at AC200V, delivers a rated torque of 9.55 N·m and a peak momentary torque of 28.6 N·m, ensuring rapid acceleration and deceleration in high-speed packaging, robotics, and CNC machinery. With a 23-bit absolute encoder providing 8,388,608 pulses per revolution, it offers unparalleled feedback resolution for closed-loop control. The motor’s IP67 rating makes it suitable for washdown and dusty environments, while its F-frame design allows seamless integration with compatible MINAS A6 drives. Below is a comprehensive technical specification table for the MDMF302L1G6M, derived from Panasonic’s official datasheet and industry standards.

Parameter	Value
Product Model	Panasonic MDMF302L1G6M (MINAS A6 Series)
Rated Output Power	3000 W
Rated Torque	9.55 N·m
Continuous Stall Torque	11 N·m
Momentary Maximum Peak Torque	28.6 N·m
Rated Current (Arms)	18.1 A
Maximum Current (A o-p)	77 A
Power Supply Capacity	5.2 kVA
Rated Rotational Speed	3000 r/min
Maximum Rotational Speed	5000 r/min
Regenerative Brake Frequency (without option)	No limit
Regenerative Brake Frequency (with DV0P4285 x 2)	No limit
Moment of Inertia of Rotor (without brake)	7.04 × 10⁻⁴ kg·m²
Moment of Inertia of Rotor (with brake)	7.38 × 10⁻⁴ kg·m²
Recommended Load-to-Rotor Inertia Ratio	15 times or less
Rotary Encoder Type	23-bit Absolute (8,388,608 pulses/rev)
Protection Rating	IP67
Frame Symbol	F-frame
Power Supply Voltage	AC200V (3-phase)
Communication Options	RS485 (multi-function type), Basic type, or MFDLNA3SG/MFDLNA3SE variants
