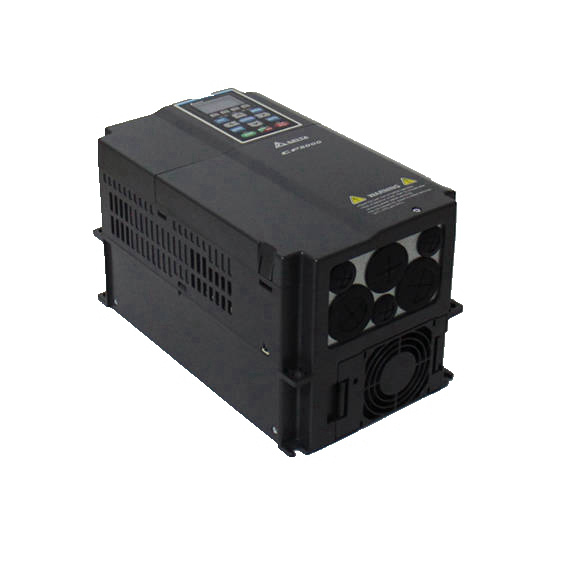

The DELTA INVERTERS CP2000 Series 45KW VFD450CP43S-00 380V is a robust variable frequency drive engineered for heavy-duty motor control in industrial automation systems. This model leverages sensorless vector control to achieve high starting torque (150% at 0.5Hz) and stable speed regulation across a wide range of loads. Its built-in PLC and flexible I/O configuration allow for standalone operation or seamless integration into larger networked systems. With a focus on energy efficiency and durability, the VFD450CP43S-00 is ideal for pumps, fans, conveyors, and compressors in harsh environments. The drive includes comprehensive protection features such as overcurrent, overvoltage, and overtemperature safeguards, ensuring long service life with minimal downtime.
| Parameter |
Specification |
| Model |
VFD450CP43S-00 |
| Series |
CP2000 |
| Rated Power |
45 kW (60 HP) |
| Input Voltage |
380V AC, 3-phase, 50/60 Hz |
| Input Current |
85 A (RMS) |
| Output Voltage |
0–380V AC, 3-phase |
| Output Current |
90 A (RMS) |
| Frequency Range |
0.00–400.00 Hz |
| Control Method |
Sensorless Vector Control (SVC) / V/f Control |
| Starting Torque |
150% at 0.5 Hz (SVC) |
| Speed Regulation |
±0.5% (SVC) |
| Overload Capacity |
150% for 60 seconds, 180% for 3 seconds |
| Protection Class |
IP20 |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Communication Protocols |
Modbus RTU (standard), CANopen, optional Ethernet/IP |
| Digital Inputs |
6 (NPN/PNP selectable) |
| Digital Outputs |
2 (relay, open collector) |
| Analog Inputs |
2 (0–10V / 4–20mA) |
| Analog Outputs |
2 (0–10V / 4–20mA) |
| Built-in PLC |
Yes (50 steps, basic logic) |
| Built-in Braking Transistor |
Yes |
| DC Choke |
Integrated |
| EMC Filter |
Optional (external) |
| Dimensions (W x H x D) |
Approx. 260 x 450 x 200 mm |
| Weight |
Approx. 12.5 kg |
