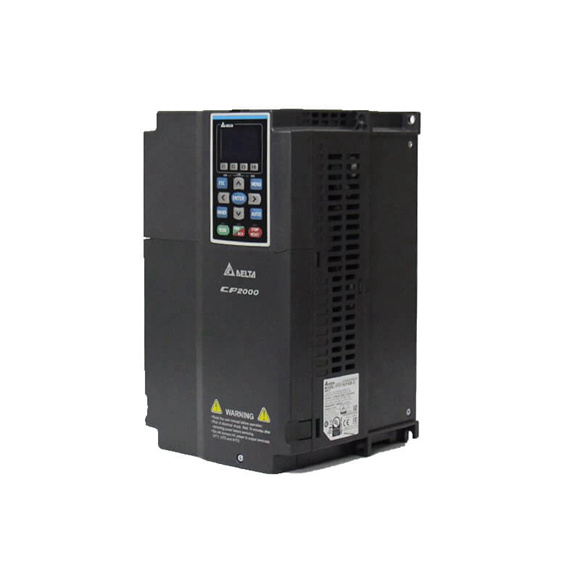

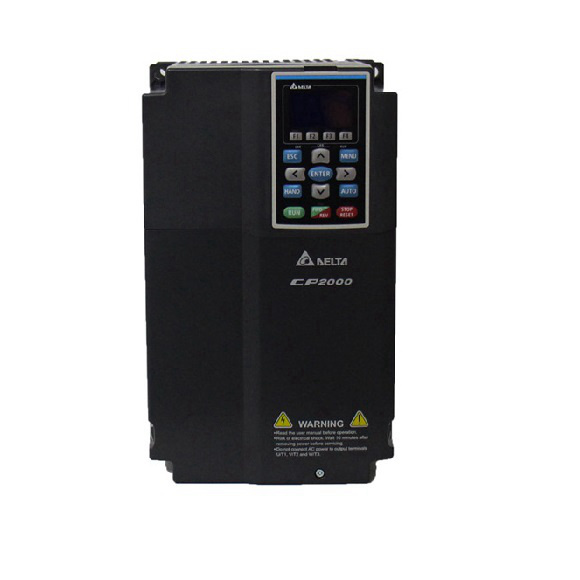

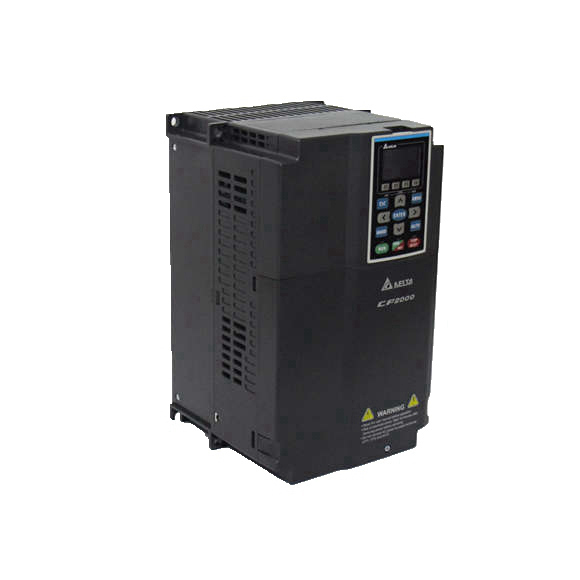

The DELTA INVERTERS CP2000 SERIES 22KW VFD022CP4EB-21 380V is a cutting-edge variable frequency drive engineered for demanding industrial applications requiring reliable and efficient motor control. This model is part of Delta's renowned CP2000 series, designed to deliver superior performance in constant torque loads such as conveyors, pumps, and compressors. With a robust 22kW output capacity and support for 380V three-phase input, the VFD022CP4EB-21 ensures smooth acceleration, deceleration, and precise speed regulation. Its advanced sensorless vector control technology optimizes energy consumption while maintaining high torque at low speeds. The drive features a comprehensive protection suite and flexible communication options, making it an ideal choice for modern automation systems. Below are the detailed technical specifications for this model.
| Parameter |
Specification |
| Model Number |
VFD022CP4EB-21 |
| Series |
CP2000 |
| Power Rating |
22 kW (30 HP) |
| Input Voltage |
380-480 VAC, 3-phase, 50/60 Hz |
| Output Voltage |
0-380 VAC, 3-phase |
| Rated Output Current |
45 A |
| Control Method |
Sensorless Vector Control (SLV), V/f Control |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Frequency Range |
0.00 - 400.00 Hz |
| Frequency Accuracy |
0.01% of maximum output frequency |
| Protection Features |
Overcurrent, Overvoltage, Undervoltage, Overheat, Short-circuit, Ground Fault, Phase Loss |
| Communication Interface |
RS-485 Modbus RTU (standard) |
| Digital Inputs |
8 programmable (NPN/PNP) |
| Digital Outputs |
3 programmable (relay or transistor) |
| Analog Inputs |
2 (0-10V, 4-20mA) |
| Analog Outputs |
2 (0-10V, 4-20mA) |
| Ambient Temperature |
-10°C to +50°C (derating above 40°C) |
| Enclosure Rating |
IP20 |
| Dimensions (W x H x D) |
Approx. 180 mm x 340 mm x 200 mm |
| Weight |
Approx. 5.5 kg |
| Certifications |
CE, UL, cUL, RoHS |
