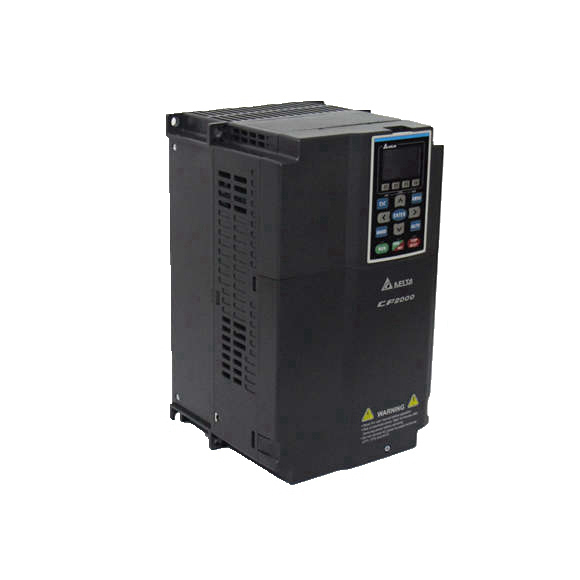

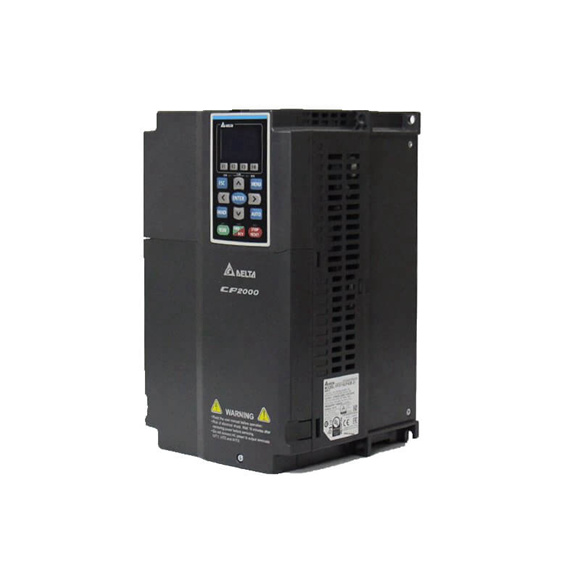

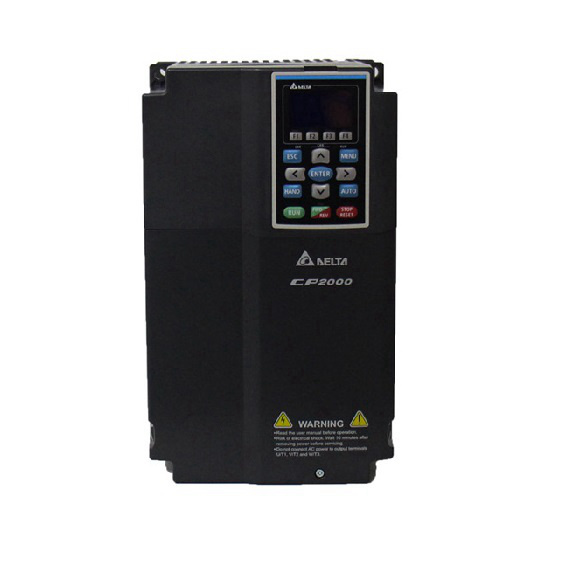

Delta VFD550CP4EB-21 Inverter

Series#: Delta

Product Details

DELTA INVERTERS CP2000 SERIES 55KW VFD550CP4EB-21 380V – a high-performance vector control drive designed for demanding industrial applications.
Rated for 55kW (75HP) output at 380V three-phase input, delivering precise torque and speed control for pumps, fans, and conveyors.
Built-in EMC filter and DC choke for enhanced electromagnetic compatibility and power factor correction.
Supports multiple control modes: V/F, sensorless vector, and closed-loop vector for maximum flexibility.
Advanced protection features including overcurrent, overvoltage, and short-circuit safeguarding.
User-friendly keypad with LED display and programmable I/O for easy commissioning and monitoring.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The DELTA INVERTERS CP2000 SERIES 55KW VFD550CP4EB-21 380V represents a robust and versatile variable frequency drive solution for heavy-duty industrial automation. Engineered for reliable operation in harsh environments, this drive integrates advanced vector control algorithms to ensure smooth motor acceleration, precise speed regulation, and energy savings. With a compact footprint and modular design, the VFD550CP4EB-21 is ideal for retrofitting existing systems or new installations requiring high torque at low speeds. Its comprehensive communication options and built-in PLC functionality simplify integration into complex control networks, making it a preferred choice for system integrators and OEMs worldwide.

Parameter	Specification
Model	VFD550CP4EB-21
Series	CP2000 (Delta Inverters)
Power Rating	55 kW (75 HP)
Input Voltage	3-Phase, 380V AC (50/60 Hz)
Output Voltage	3-Phase, 0-380V AC (Proportional to Input)
Rated Output Current	110 A
Control Method	V/F, Sensorless Vector, Closed-Loop Vector (with PG card option)
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Frequency Range	0.00 – 400.00 Hz
Starting Torque	150% at 0.5 Hz (Sensorless Vector)
Protection Class	IP20 (NEMA 1)
Built-in EMC Filter	Yes (Class C3 for Industrial Environments)
Built-in DC Choke	Yes (Reduces Harmonics)
Digital Inputs	6 Programmable (NPN/PNP)
Digital Outputs	2 Relay Outputs (Form C) + 1 Open Collector
Analog Inputs	2 (0-10V / 4-20mA, Selectable)
Analog Outputs	2 (0-10V / 4-20mA, Selectable)
Communication Ports	RS-485 (Modbus RTU) Standard, Optional: CANopen, DeviceNet, Profibus
Built-in PLC	Yes (Ladder Logic Programming)
Keypad	LED Display with Potentiometer and Copy Function
Ambient Temperature	-10°C to +50°C (Derating above 40°C)
Cooling Method	Forced Air Cooling with Thermostat Control
Dimensions (W x H x D)	Approx. 300 x 600 x 250 mm (Exact per datasheet)
Weight	Approx. 25 kg
Standards Compliance	CE, UL, cUL, RoHS, EN 61800-3
Warranty	12 Months from Date of Shipment
Application	HVAC, Pumps, Fans, Compressors, Conveyors, Machine Tools
