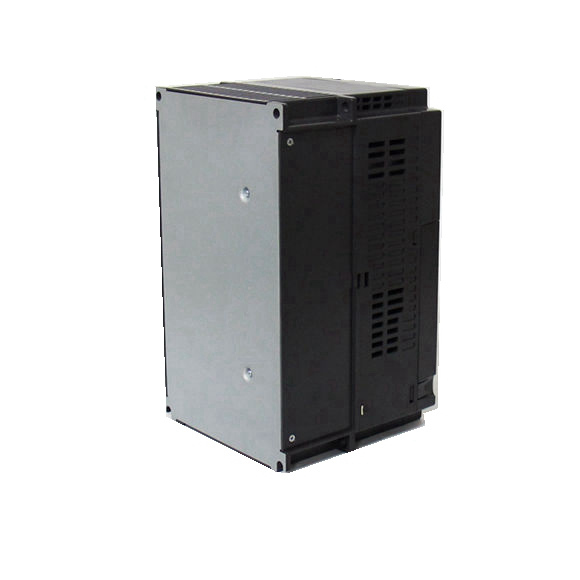

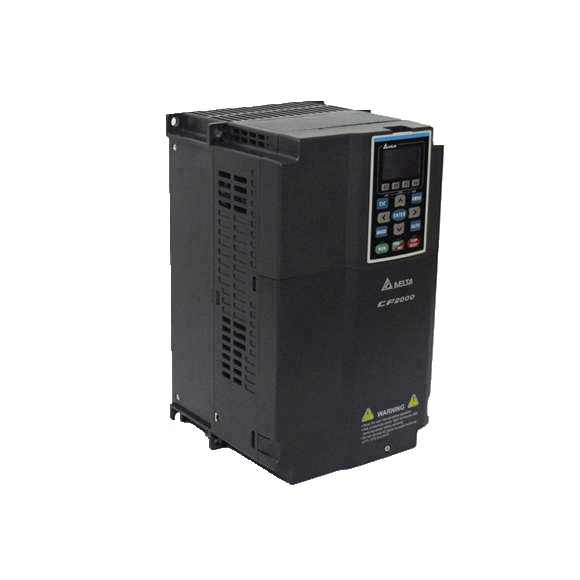

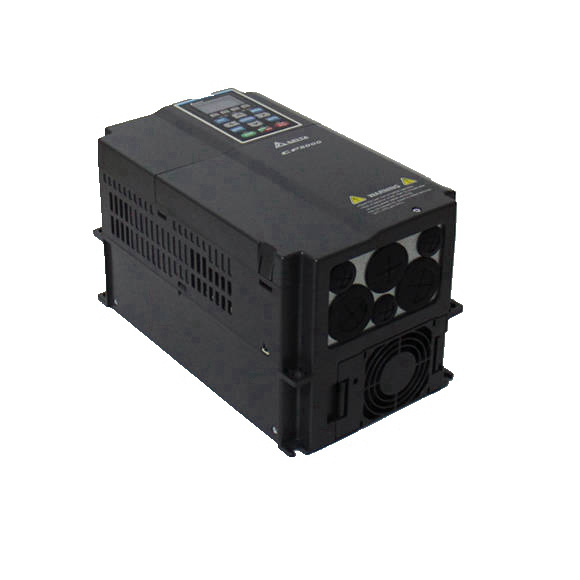

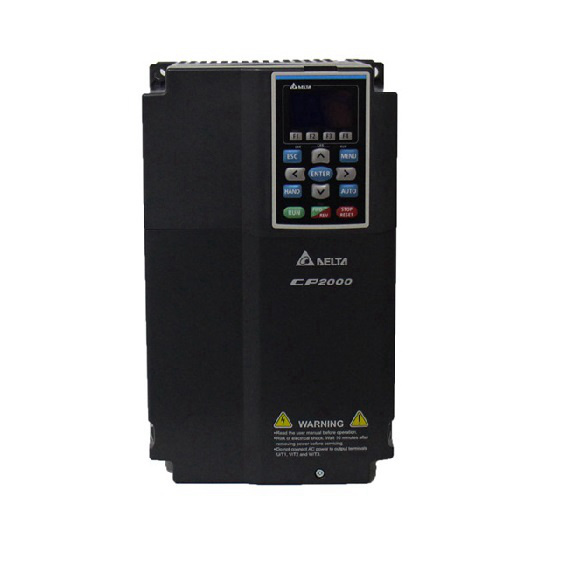

Delta VFD075CP4EB-21 Inverter

Series#: Delta

Product Details

DELTA INVERTERS CP2000 SERIES 7.5KW VFD075CP4EB-21 380V – A high-performance, sensorless vector drive designed for precision motor control in demanding industrial applications.
Rated power of 7.5 kW (10 HP) with 380V three-phase input, ideal for pumps, fans, conveyors, and compressors.
Built-in PID controller, PLC functionality, and Modbus communication for seamless integration into automation systems.
Compact IP20 enclosure with easy-to-use keypad and parameter copy function for quick setup and maintenance.
Advanced torque control with auto-tuning, providing smooth start-up and enhanced energy savings.
Robust overload protection (150% for 60 seconds) ensures stable operation under heavy load conditions.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The DELTA INVERTERS CP2000 SERIES 7.5KW VFD075CP4EB-21 380V is a versatile and rugged AC drive engineered for variable torque and constant torque applications. With its sensorless vector control algorithm, this drive delivers precise speed and torque regulation even at low speeds, making it suitable for textile machinery, HVAC systems, and material handling equipment. The VFD075CP4EB-21 model features a built-in DC reactor to reduce harmonics and improve power factor, along with a dynamic braking chopper for rapid deceleration. Its robust design withstands harsh industrial environments, and the intuitive keypad supports multi-language display and real-time monitoring. Below are the detailed technical specifications extracted from the Delta CP2000 series datasheet.

Parameter	Specification
Model Number	VFD075CP4EB-21 (CP2000 Series)
Rated Output Power	7.5 kW (10 HP)
Rated Input Voltage	380-480 VAC, 3-phase, 50/60 Hz
Rated Input Current	18.5 A (at 380 VAC)
Rated Output Current	16.5 A
Output Frequency Range	0.00 – 599.00 Hz (adjustable)
Control Method	Sensorless Vector Control (SVC), V/F, Slip Compensation
Overload Capacity	150% for 60 seconds, 200% for 3 seconds
Starting Torque	150% at 0.5 Hz (SVC mode)
Frequency Resolution	0.01 Hz (digital), 0.01% (analog)
Accel/Decel Time	0.00 – 6000.00 seconds (independent setting)
Built-in PID Controller	Yes, with sleep/wake function and feedback scaling
Communication Protocols	Modbus RTU (RS-485), optional Profibus DP, DeviceNet, CANopen
Digital Inputs	6 programmable (NPN/PNP selectable)
Digital Outputs	2 relay outputs (1 Form C, 1 Form A)
Analog Inputs	2 (0-10V / 4-20mA selectable)
Analog Outputs	2 (0-10V / 4-20mA selectable)
Built-in DC Reactor	Yes (standard)
Dynamic Braking Chopper	Yes (built-in, external resistor required)
Protection Features	Overcurrent, overvoltage, undervoltage, overheating, phase loss, ground fault
Enclosure Rating	IP20 (standard), NEMA 1 optional
Ambient Temperature	-10°C to +50°C (derating above 40°C)
Altitude	Up to 1000m without derating
Weight (approx.)	4.5 kg (9.9 lbs)
Dimensions (W x H x D)	180 mm x 290 mm x 200 mm (7.09" x 11.42" x 7.87")
