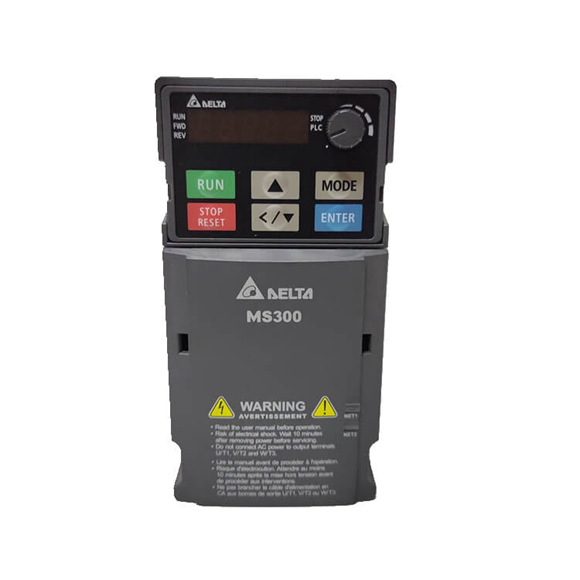

The DELTA INVERTERS VFD MS300 2.2KW VFD11AMS21ANSKA is a versatile variable frequency drive designed for energy-efficient motor control in applications like conveyors, pumps, and fans. Its advanced sensorless vector control ensures high torque at low speeds, while the built-in PLC function reduces external component needs. With a wide input voltage range and rugged construction, this drive is ideal for harsh industrial environments, offering seamless integration with existing automation systems through standard fieldbus protocols.
| Parameter |
Specification |
| Model |
VFD11AMS21ANSKA |
| Power Rating |
2.2 kW (3 HP) |
| Input Voltage |
200-240V AC, Single-Phase, 50/60 Hz |
| Output Voltage |
0-240V AC, Three-Phase |
| Rated Output Current |
12.0 A |
| Control Method |
V/F, Sensorless Vector Control, PM Motor Control |
| Frequency Range |
0.00 - 599.00 Hz |
| Overload Capacity |
150% for 60 seconds, 200% for 3 seconds |
| Braking Chopper |
Built-in |
| EMC Filter |
Integrated (Class A) |
| Communication Protocols |
RS-485 (Modbus RTU), CANopen, Optional Ethernet |
| Digital Inputs |
5 programmable (NPN/PNP) |
| Analog Inputs |
2 (0-10V, 4-20mA selectable) |
| Digital Outputs |
1 relay output (NC/NO), 1 open-collector |
| Analog Output |
1 (0-10V or 4-20mA) |
| Built-in PLC |
Yes (up to 1000 steps) |
| Protection Features |
Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short-Circuit, Ground Fault |
| Enclosure |
IP20 (NEMA 1) |
| Operating Temperature |
-10 to +50°C (14 to 122°F) |
| Dimensions (W x H x D) |
Approx. 100 x 200 x 150 mm |
| Weight |
Approx. 1.5 kg |
| Certifications |
CE, UL, RoHS |
