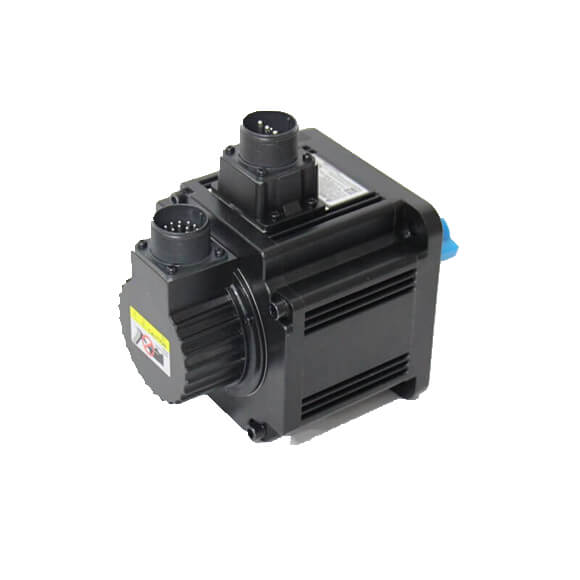

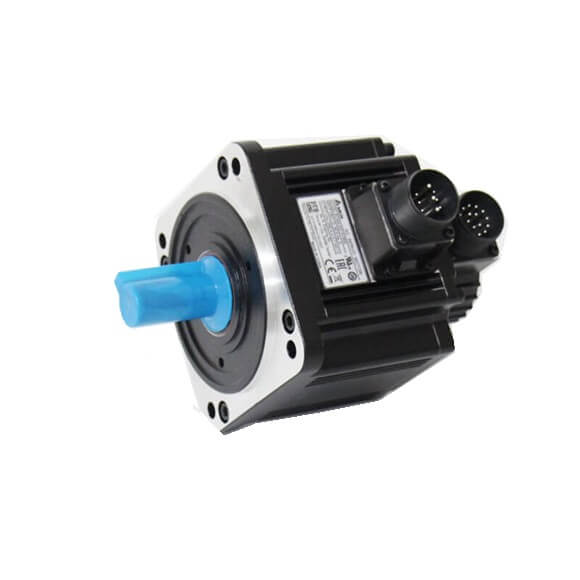

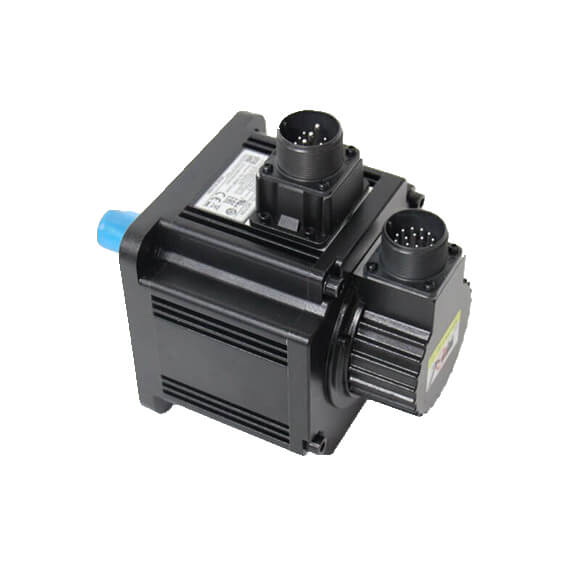

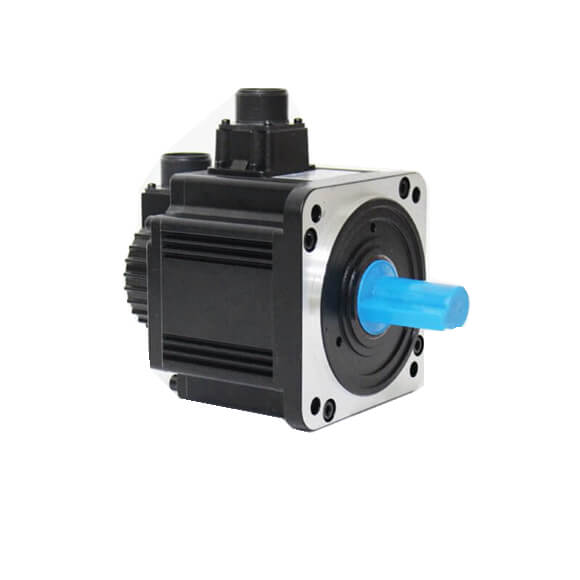

The DELTA SERVO MOTOR 750W ECM-E2M-C10807RS0 is a low-inertia, high-torque servo motor designed for demanding industrial automation tasks. Part of the renowned B2 series, this motor delivers a rated output of 750W with a continuous stall torque of 2.39 Nm and a maximum speed of 3000 rpm. Its 20-bit absolute encoder ensures high-resolution feedback for precise positioning and smooth motion profiles, even at low speeds. The motor features a keyed shaft without an oil seal, making it suitable for clean, dry environments. It comes with a full set of connectors for CN1, CN2, and power terminals, though cables must be ordered separately. This model is 100% original and new, shipped directly from our warehouse, and is compatible with the ASD-B2-0721-B servo drive. Below is a comprehensive specification table for reference.
| Parameter |
Specification |
| Motor Model |
ECM-E2M-C10807RS0 |
| Rated Power |
750 W |
| Rated Torque |
2.39 Nm |
| Maximum Torque |
7.16 Nm |
| Rated Speed |
3000 rpm |
| Maximum Speed |
5000 rpm |
| Encoder Type |
20-bit absolute encoder (single-turn or multi-turn) |
| Inertia Type |
Low inertia |
| Brake |
Without brake (standard model) |
| Oil Seal |
Without oil seal |
| Shaft Feature |
With key-way (keyed shaft) |
| Insulation Class |
Class B (130°C) |
| Protection Rating |
IP40 (motor body only) |
| Operating Voltage |
AC 220V (3-phase or single-phase via drive) |
| Connector Set |
Includes CN1, CN2, and power terminals (cables not included) |
| Compatible Drive |
ASD-B2-0721-B (750W, 220V) |
| Weight |
Approx. 3.5 kg |
| Ambient Temperature |
0°C to 40°C (operation) |
| Mounting |
Flange mount (standard IEC frame) |
