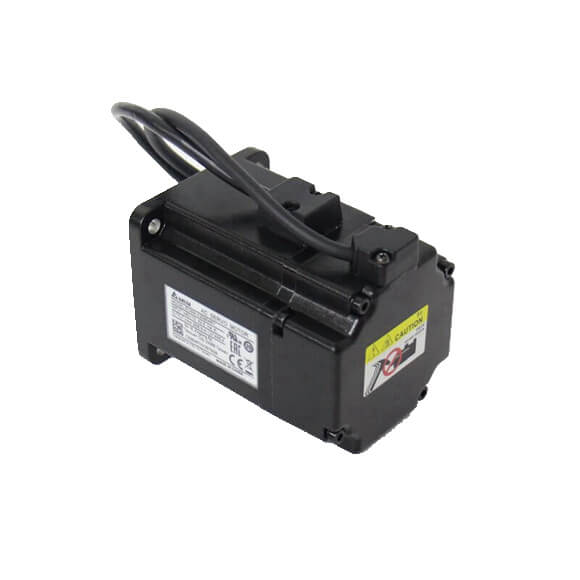

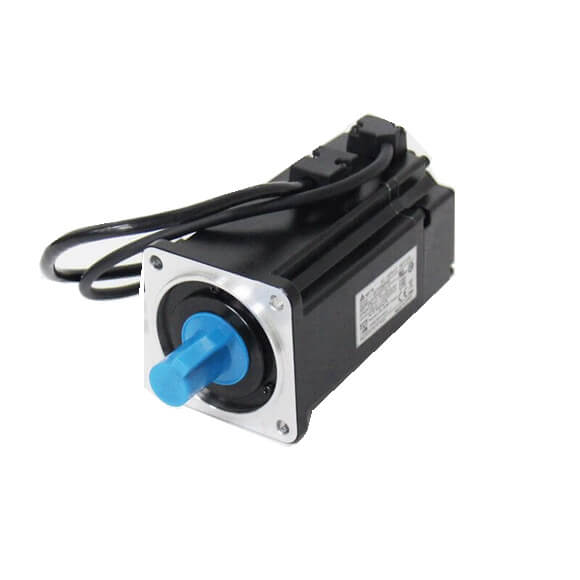

Delta ASDA-B3 Servo Motor ECM-B3M-20604RS1 400W

Series#: Delta

Product Details

High-performance DELTA ASDA-B3 SERVO MOTOR ECM-B3M-20604RS1 400W, engineered for precision motion control in industrial automation.
Rated power of 400W with a compact frame size, delivering smooth torque and high-speed response for demanding applications.
Integrated 20-bit incremental encoder (standard models) for ultra-fine position feedback, enhancing system accuracy.
Low cogging torque and optimized magnetic design minimize vibration and noise, ideal for CNC, robotics, and packaging machinery.
Compatible with DELTA ASDA-B3 series drives for plug-and-play setup, supporting advanced tuning and auto-gain functions.
Robust IP65-rated construction (shaft end with oil seal) protects against dust and moisture in harsh industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The DELTA ASDA-B3 SERVO MOTOR ECM-B3M-20604RS1 400W is a core component of the ASDA-B3 series, designed to meet the rigorous demands of modern automation. This motor combines a 400W power rating with a 3000 RPM rated speed, delivering exceptional torque density and dynamic performance. Its 20-bit absolute encoder (standard for AC models) provides precise position control, while the lightweight, low-inertia rotor ensures rapid acceleration and deceleration. Ideal for applications requiring high precision, such as pick-and-place systems, labeling machines, and linear motion stages, the ECM-B3M-20604RS1 is built for durability and efficiency. Below is the detailed specification table derived from the DELTA B3 series standard data.

Parameter	Specification
Motor Model	ECM-B3M-20604RS1
Rated Power	400 W
Rated Torque	1.27 N·m
Peak Torque	3.82 N·m
Rated Speed	3000 RPM
Maximum Speed	5000 RPM
Rotor Inertia	0.277 × 10⁻⁴ kg·m²
Encoder Type	20-bit incremental encoder (standard models); optional 20-bit absolute encoder
Encoder Resolution	1,048,576 pulses/rev (standard)
Insulation Class	Class B (130°C)
Insulation Resistance	100 MΩ min (500 VDC)
Dielectric Strength	1500 VAC for 1 minute
Vibration Grade	V15 (≤ 15 μm)
Protection Class	IP65 (shaft end with oil seal)
Mounting Type	Flange (IEC standard)
Shaft Type	Keyed shaft with oil seal
Shaft Diameter	14 mm (with keyway)
Weight	1.6 kg (approx.)
Ambient Temperature	0°C to +40°C (operation)
Ambient Humidity	20% to 80% RH (non-condensing)
Compatible Drive	ASDA-B3 series servo drives (e.g., ASD-B3-0421-M)
Feedback Cable	Standard 20-pin connector (sold separately)
Power Cable	Standard 4-pin connector (sold separately)
Brake Option	Not included (standard models); optional with brake (ECM-B3M-20604RS1B)
