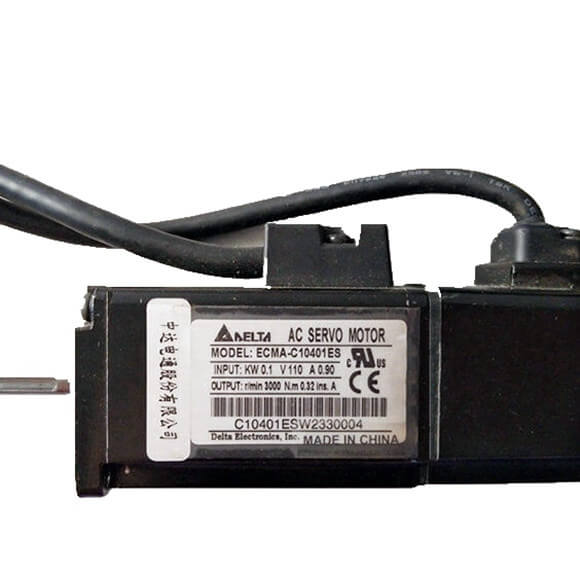

Delta Servo Motor 100W ECMA-C10401ES

Series#: Delta

Product Details

Delta ECMA-C10401ES 100W Servo Motor: Compact, high-torque solution for precision motion control applications.
Rated output: 100W (0.1 kW) with a rated torque of 0.32 Nm, ensuring reliable performance in space-constrained systems.
High-speed capability: Rated speed of 3000 rpm, with a maximum speed of 5000 rpm for dynamic operations.
Integrated with 17-bit absolute encoder (131,072 ppr) for exceptional positioning accuracy and feedback stability.
IP65 protection rating: Dust-tight and resistant to water jets, ideal for harsh industrial environments.
Compatible with Delta ASDA-A2 and A3 series drives, offering plug-and-play integration for automation upgrades.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Delta ECMA-C10401ES is a 100W AC servo motor engineered for high-precision motion control in industrial automation systems. Designed for demanding applications such as packaging, labeling, and robotic arms, this model delivers a rated torque of 0.32 N·m and a peak torque of 0.96 N·m, enabling rapid acceleration and deceleration. Its 17-bit absolute encoder ensures zero-loss position feedback, while the IP65-rated housing protects against dust and moisture. The ECMA-C10401ES operates seamlessly with Delta’s ASDA-A2 and A3 servo drives, supporting advanced tuning and vibration suppression for optimal system performance. With a compact frame size of 40 mm (square flange), it fits easily into tight spaces without compromising power or reliability.

Parameter	Specification
Model Number	ECMA-C10401ES
Rated Output Power	100 W (0.1 kW)
Rated Torque	0.32 N·m
Peak Torque	0.96 N·m
Rated Speed	3000 rpm
Maximum Speed	5000 rpm
Encoder Type	17-bit absolute encoder (131,072 ppr)
Feedback Resolution	131,072 pulses per revolution
Protection Rating	IP65 (excluding shaft and connector)
Insulation Class	Class B (130°C)
Rated Voltage	AC 220V (3-phase)
Rated Current	0.8 A
Brake Option	Standard models without brake; optional brake available
Frame Size (Square Flange)	40 mm x 40 mm
Shaft Diameter	8 mm (keyed shaft)
Weight	Approx. 0.6 kg
Operating Temperature	0°C to 40°C
Compatible Drives	Delta ASDA-A2, ASDA-A3 series
Certifications	CE, UL, RoHS
