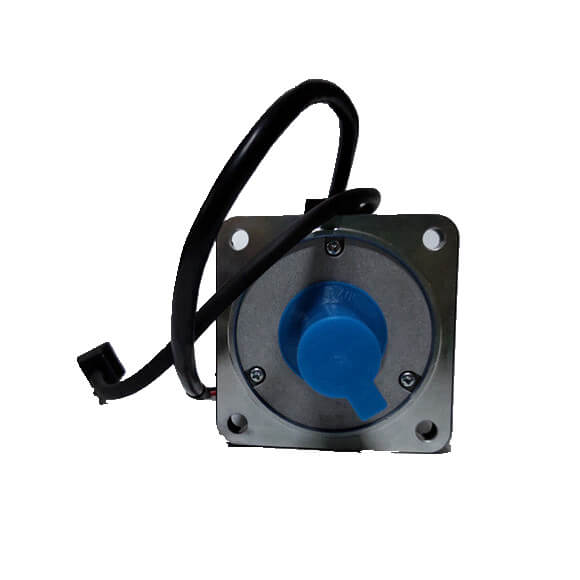

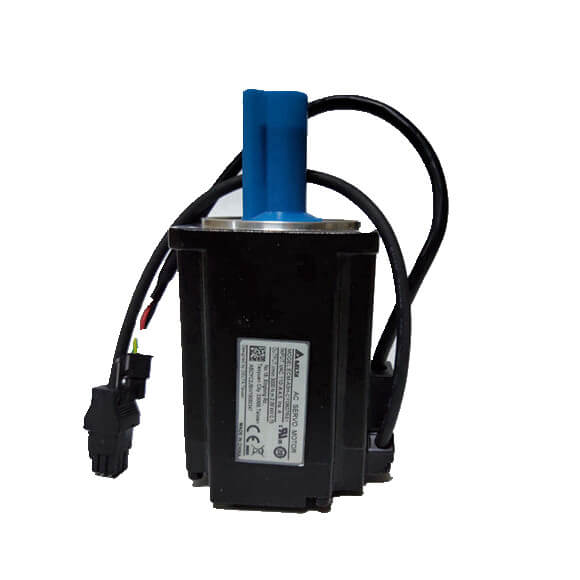

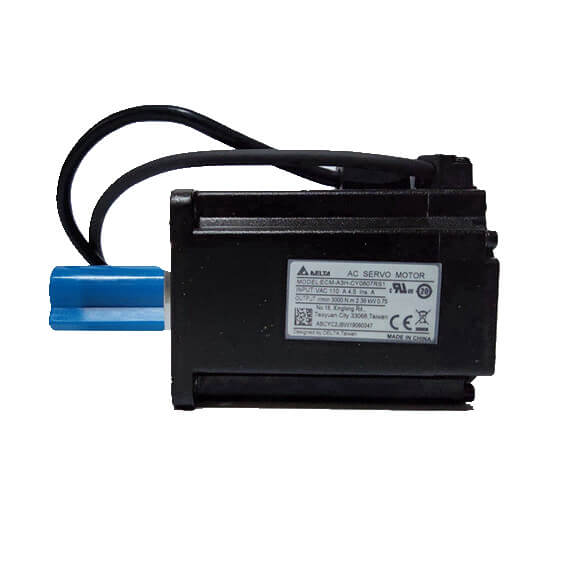

Delta ECMA Series Servo Motor ECM-A3H-CY0807RS1

Series#: Delta

Product Details

DELTA SERIES SERVO MOTOR ECM-A3H-CY0807RS1 – High-performance AC servo motor engineered for precision motion control in automation systems.
Rated output of 750W with a rated torque of 2.39 Nm, ideal for demanding servo applications.
Equipped with a 23-bit absolute encoder for ultra-high resolution feedback and position accuracy.
Compact frame size (80 mm flange) with a 7-meter standard cable and keyed shaft for easy integration.
Low cogging torque and smooth operation at low speeds, ensuring stable performance in CNC and robotics.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The DELTA SERIES SERVO MOTOR ECM-A3H-CY0807RS1 is a robust AC servo motor designed for high-dynamic industrial applications, such as packaging machinery, textile equipment, and robotic arms. This model features a 750W power rating with a rated speed of 3000 rpm and a maximum speed of 5000 rpm, delivering a peak torque of 7.17 Nm. Integrated with a high-resolution 23-bit absolute encoder, it ensures precise position control and repeatability. The motor comes with a standard 7-meter power and encoder cable, a keyed shaft with an oil seal, and is compatible with Delta’s ASDA-A3 series drives. Its IP65 protection rating (shaft end with oil seal) makes it suitable for harsh industrial environments.

Parameter	Specification
Motor Model	ECM-A3H-CY0807RS1
Motor Type	AC Servo Motor
Rated Power	750 W
Rated Torque	2.39 Nm
Peak Torque	7.17 Nm
Rated Speed	3000 rpm
Maximum Speed	5000 rpm
Encoder Type	23-bit Absolute Encoder
Encoder Resolution	8,388,608 pulses/rev
Frame Size (Flange)	80 mm x 80 mm
Shaft Type	Keyed Shaft with Oil Seal
Shaft Diameter	19 mm
Cable Length	7 meters (Standard)
Insulation Class	Class F (155°C)
Protection Rating	IP65 (Shaft end with oil seal)
Brake Option	Without Brake (Standard Models)
Ambient Temperature	0°C to 40°C
Vibration Grade	V15
Weight	Approx. 3.5 kg
Compatible Drive	ASDA-A3 Series
