Omron NB5Q-TW00B 5.6 inch Touch Screen HMI

Series#: Omron

Product Details

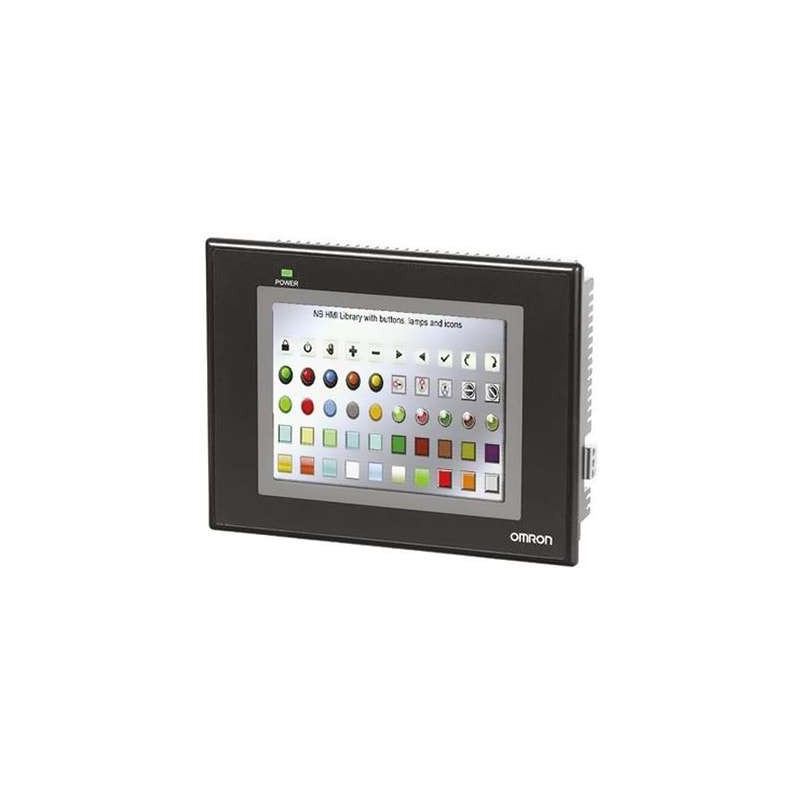

NB5Q-TW00B OMRON Touch Screen HMI – 5.6-inch QVGA TFT Color Display for Industrial Automation.
Compact design with 256-color TFT LCD, ideal for machine control and monitoring.
Supports Ethernet, serial (RS-232C/RS-422A/485), and USB programming ports.
Built-in 128KB user memory and 8MB application memory for robust HMI projects.
IP65 front panel protection for harsh industrial environments.
Easy integration with OMRON PLCs and third-party devices via NB-Designer software.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The OMRON NB5Q-TW00B is a 5.6-inch QVGA TFT color touch screen HMI designed for compact and efficient human-machine interface applications. This model features a 256-color display with a resolution of 320 x 240 pixels, providing clear visualization for machine status, alarms, and data entry. It offers versatile connectivity options including Ethernet, RS-232C, RS-422A/485, and USB ports, enabling seamless communication with OMRON PLCs and other industrial controllers. With 128KB of user memory and 8MB of application memory, the NB5Q-TW00B supports complex screen layouts and macros. The front panel is rated IP65 for dust and water resistance, making it suitable for factory floor environments. Programming is accomplished via OMRON’s NB-Designer software, which supports a wide range of widgets and communication drivers.

Parameter	Specification
Model Number	NB5Q-TW00B
Display Type	5.6-inch TFT Color LCD
Resolution	320 x 240 pixels (QVGA)
Color Support	256 colors
Backlight	White LED, replaceable
Backlight Life	50,000 hours (typical)
Touch Panel	Analog resistive film, single-touch
User Memory	128 KB (for recipes, logs, etc.)
Application Memory	8 MB (for screen data and macros)
Communication Ports	Ethernet (10/100 Base-T), 1 x RS-232C, 1 x RS-422A/485, 1 x USB Host, 1 x USB Slave
Ethernet Protocol	EtherNet/IP, Modbus TCP, OMRON FINS
Serial Protocol	OMRON Host Link, Modbus RTU, NT Link, etc.
Real-Time Clock	Built-in, battery-backed
Rated Voltage	24 VDC (+10%, -15%)
Power Consumption	12 W or less
Front Panel Protection	IP65 (for panel mounting)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Operating Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	5 to 9.8 Hz, 3.5 mm amplitude; 9.8 to 150 Hz, 1G
Dimensions (W x H x D)	185 x 140 x 48 mm (panel cutout: 172 x 126 mm)
Weight	Approx. 600 g
Software	NB-Designer (latest version recommended)
Certifications	CE, UL, cUL, RoHS
