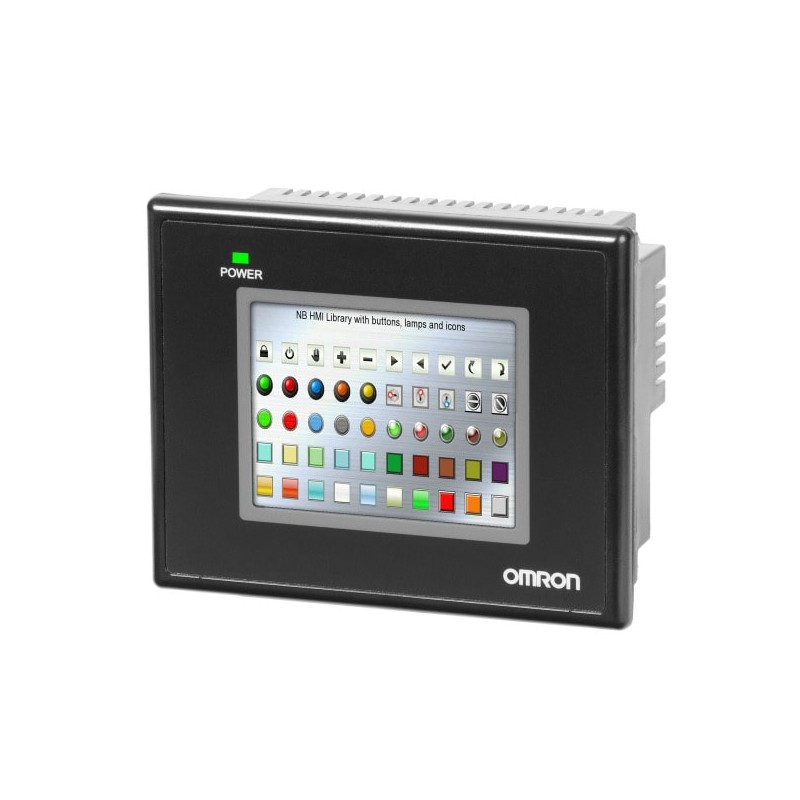

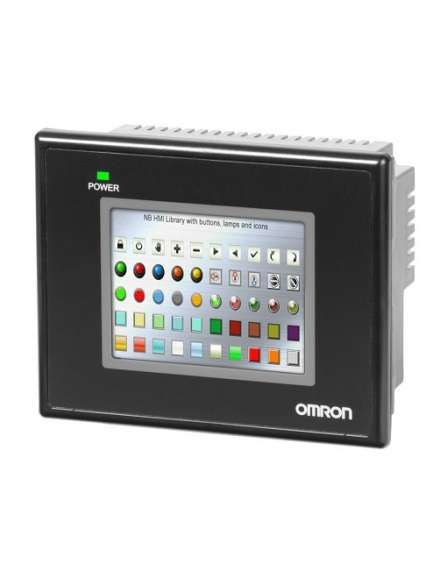

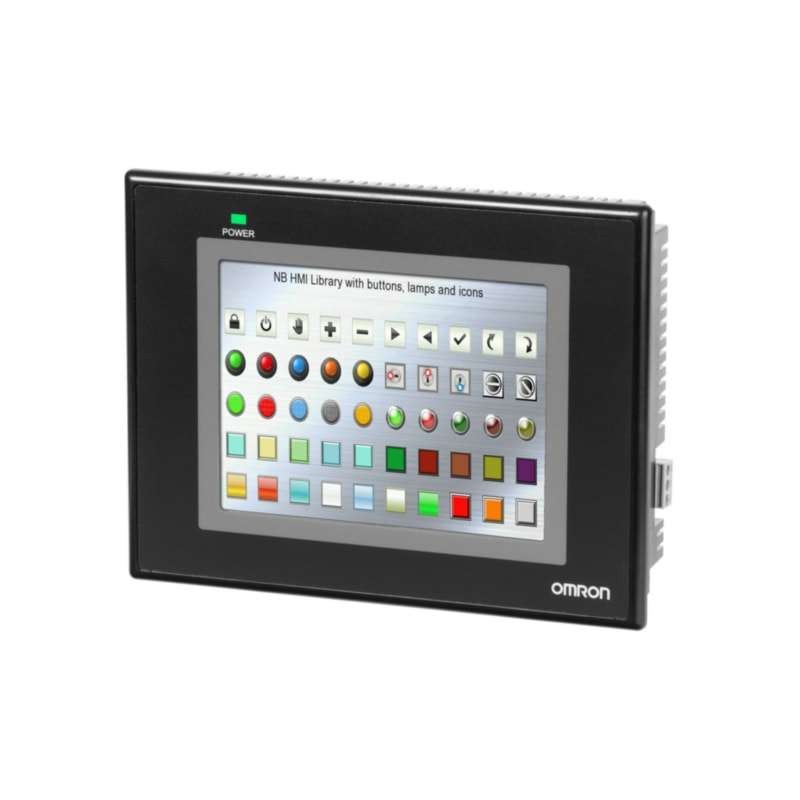

Omron NB3Q-TW01B 3.5 inch Touch Screen HMI

Series#: Omron

Product Details

Model: NB3Q-TW01B – OMRON 3.5-inch QVGA Touch Screen HMI for compact automation.
Delivers a bright and responsive 3.5-inch QVGA (320x240 pixel) TFT LCD display with intuitive touch control.
Built-in Ethernet port for seamless PLC, SCADA, and remote monitoring connectivity.
Supports OMRON NB-Designer software for easy project creation, simulation, and data logging.
Compact panel-mount design with IP65 front protection, ideal for harsh industrial environments.
Includes USB host and device ports for data transfer, screen capture, and firmware updates.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The OMRON NB3Q-TW01B is a high-performance 3.5-inch QVGA touch screen HMI designed for space-constrained industrial applications. This model offers a crisp TFT LCD display with 320x240 pixel resolution, ensuring clear visualization of process data, alarms, and operator prompts. With its integrated Ethernet interface, the NB3Q-TW01B facilitates direct communication with OMRON PLC series and third-party controllers via standard protocols like Modbus TCP. The unit is engineered for reliability in demanding environments, featuring a robust IP65-rated front panel and a compact form factor that fits standard panel cutouts. Its intuitive touch interface, combined with powerful NB-Designer software, enables rapid development of user-friendly screens, trend graphs, and recipe management. Whether used for machine control, packaging lines, or HVAC systems, the NB3Q-TW01B delivers cost-effective, scalable HMI solutions with proven industrial durability.

Parameter	Specification
Model Number	NB3Q-TW01B
Display Type	TFT Color LCD
Display Size	3.5 inches (diagonal)
Resolution	QVGA 320 x 240 pixels
Backlight Type	LED (white)
Backlight Life	50,000 hours (typical)
Touch Panel	Analog resistive film (single-touch)
User Memory	128 MB (flash) for project storage
System Memory	64 MB SDRAM
Ethernet Interface	1 x 10/100 Base-T (RJ45)
USB Ports	1 x USB 2.0 Type-A (host), 1 x mini-B (device)
Serial Ports	1 x RS-232C (9-pin D-sub)
Supported Protocols	OMRON FINS, Modbus RTU, Modbus TCP, and others via NB-Designer
Power Supply Voltage	24 VDC (range: 20.4 - 27.6 VDC)
Power Consumption	6 W (max)
Protection Rating	IP65 (front panel only)
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Operating Humidity	10% to 90% RH (non-condensing)
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s²
Shock Resistance	147 m/s² (15 G), 11 ms duration (half-sine)
Dimensions (W x H x D)	128 x 102 x 40 mm (5.04 x 4.02 x 1.57 in)
Panel Cutout	119 x 93 mm (4.69 x 3.66 in)
Weight	Approx. 250 g (0.55 lb)
Software	NB-Designer (free download, version 1.0 or later)
Certifications	CE, UL, cUL, RoHS compliant
