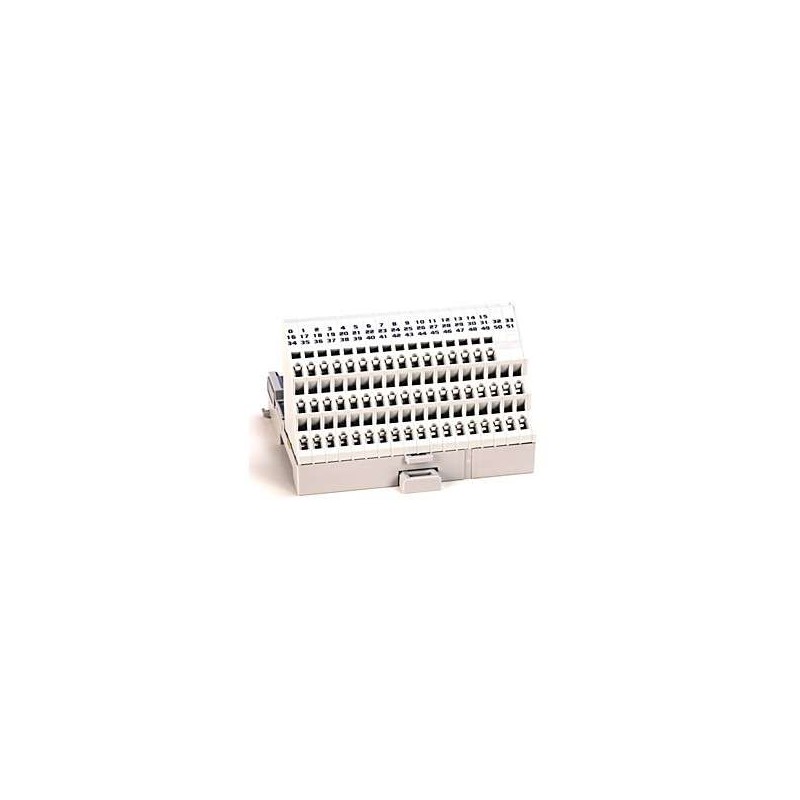

Allen-Bradley 1794-TB32S Flex I/O Terminal Base

Series#: AllenBradley

Product Details

Product Model: 1794-TB32S – Allen-Bradley 32-Channel Spring Terminal Base for Flex I/O systems.
Supports 32 discrete I/O points in a compact, modular design – ideal for space-constrained control panels.
Spring-clamp termination ensures fast, vibration-resistant wiring without special tools – reduces installation time.
Directly interfaces with Allen-Bradley 1794 series I/O modules for seamless integration in Rockwell Automation environments.
Rated for industrial environments with high reliability – meets UL, CSA, and CE standards.
Plug-and-play design with keyed connectors prevents miswiring and simplifies field maintenance.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1794-TB32S is an Allen-Bradley 32-channel spring terminal base unit designed for use with Flex I/O systems. This base provides a robust and reliable interface for discrete input and output modules, such as the 1794-IB32 and 1794-OB32 series. Its spring-clamp technology eliminates the need for screwdrivers, enabling rapid wiring and reducing labor costs in high-density applications. The 1794-TB32S is engineered for harsh industrial conditions, offering vibration resistance and secure connections that prevent loosening over time. Compatible with standard Flex I/O backplanes, it supports both AC and DC module variants, making it a versatile choice for process control, manufacturing, and automation systems. Each unit is factory-tested and shipped as new, ensuring immediate deployment in critical control loops.

Parameter	Specification
Product Type	Spring Terminal Base Unit
Model Number	1794-TB32S
Number of Channels	32
Termination Style	Spring-clamp (cage clamp)
Compatible I/O Modules	1794-IB32, 1794-OB32, 1794-IB32X, 1794-OB32X (AC/DC models)
Wire Size Range	0.5 mm² to 2.5 mm² (AWG 22 to 14)
Rated Voltage	24V DC (typical), 120V AC (with appropriate modules)
Rated Current per Channel	2 A max (dependent on module)
Environmental Rating	NEMA Type 1, IP20 (enclosed panel required)
Operating Temperature	-20°C to +55°C (-4°F to +131°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz per IEC 60068-2-6
Shock Resistance	15 g peak per IEC 60068-2-27
Certifications	UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2 with enclosure)
Dimensions (H x W x D)	Approximately 87 mm x 73 mm x 55 mm (3.42 in x 2.87 in x 2.17 in)
Weight	Approximately 0.15 kg (0.33 lb)
Mounting	DIN rail (35 mm) or panel mount via adapter
Connection Type	Keyed, polarized connector to I/O module
Wiring Access	Front access with spring-release lever
Material	High-temperature thermoplastic, nickel-plated contacts
