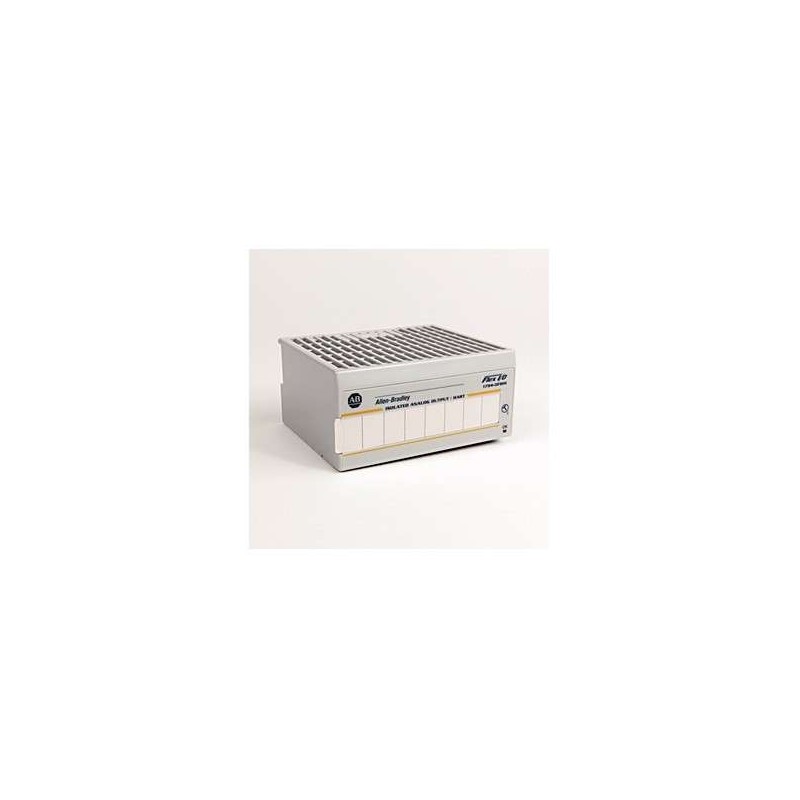

The 1794-OE12 ALLEN-BRADLEY FLEX I/O Analog Output Module is a versatile and rugged 12-channel output interface designed for distributed control systems in process and discrete manufacturing. As part of the FLEX I/O family, this module provides seamless integration with Rockwell Automation controllers via the FlexBus backplane. The 1794-OE12 delivers 16-bit resolution on each channel, supporting both voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) outputs with individual channel configuration. Its channel-to-channel isolation (1500V DC) ensures reliable performance in electrically noisy environments, making it ideal for valve positioning, actuator control, and signal conditioning applications. The module is housed in a compact, DIN-rail-mountable package with a NEMA Type 1 or IP20 rating, ensuring durability in factory floor conditions. Each output channel features overcurrent and short-circuit protection, and the module includes a user-configurable fault mode for safe state operation during communication loss. The 1794-OE12 is CE, UL, and CSA certified, meeting global industrial standards.
| Parameter |
Specification |
| Product Type |
FLEX I/O Analog Output Module |
| Model Number |
1794-OE12 |
| Number of Output Channels |
12 (individually isolated) |
| Output Signal Types |
Voltage: 0-10V DC, ±10V DC; Current: 0-20mA, 4-20mA |
| Resolution |
16 bits (0.0015% of full scale) |
| Accuracy (at 25°C) |
Voltage: ±0.1% of full scale; Current: ±0.15% of full scale |
| Output Load Impedance |
Voltage: min 2 kΩ; Current: max 500 Ω (for 4-20mA) |
| Channel-to-Channel Isolation |
1500V DC (continuous) |
| Update Rate |
5 ms per channel (typical) |
| Power Supply |
5V DC Standard Models 200 mA (from FlexBus); 24V DC Standard Models 100 mA (external loop supply) |
| Backplane Current Consumption |
200 mA max from 5V DC backplane |
| Protection |
Overcurrent (per channel, ≥ 30mA); Short-circuit (continuous) |
| Fault Mode |
User-configurable: hold last state, go to 0V or 4mA |
| Diagnostic Indicators |
12 green/red LEDs (per channel: output active/fault); 1 module status LED |
| Operating Temperature |
0°C to +60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Humidity (Non-condensing) |
5% to 95% RH |
| Vibration Resistance |
5g Standard Models 10-500 Hz (per IEC 60068-2-6) |
| Shock Resistance |
30g (per IEC 60068-2-27) |
| Enclosure Type |
NEMA Type 1 (IP20) |
| Mounting |
DIN rail (35 mm) or panel mount with optional adapter |
| Weight |
Approx. 0.25 kg (0.55 lbs) |
| Dimensions (H x W x D) |
94 mm x 48 mm x 76 mm (3.7 in x 1.9 in x 3.0 in) |
| Certifications |
CE, UL 508, CSA C22.2 No. 142, ATEX (for hazardous locations, Zone 2) |
| Compatible Base Units |
1794-TB3, 1794-TB3S, 1794-TBN, 1794-TB3K (terminal bases) |
| Application |
Valve control, actuator positioning, analog signal conditioning, process control loops |
