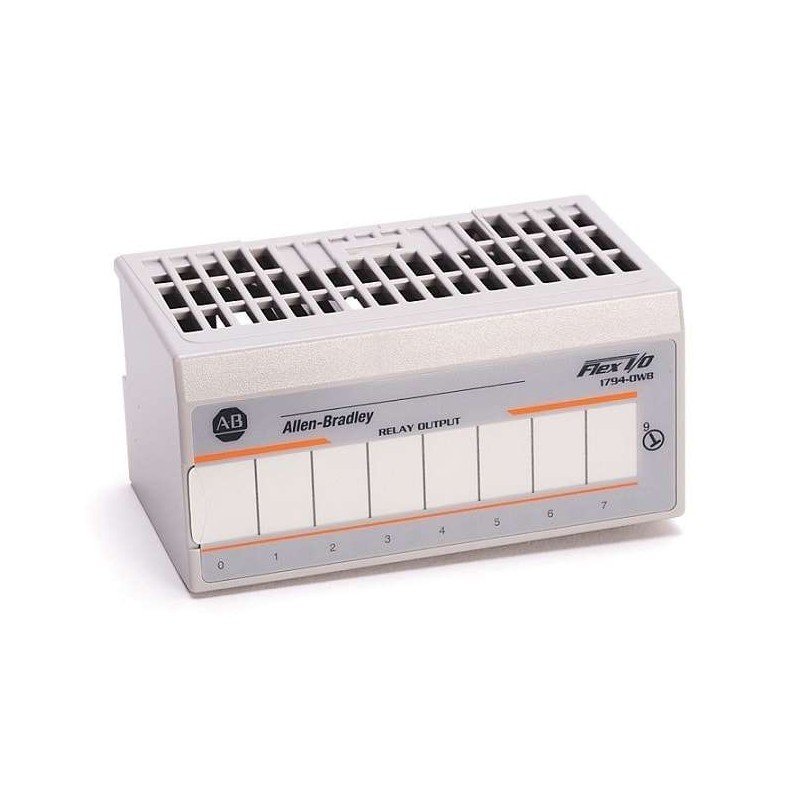

Allen-Bradley 1794-OW8 Flex I/O Output Module

Series#: AllenBradley

Product Details

1794-OW8 Allen-Bradley FLEX I/O Output Module – designed for reliable industrial automation control.
8-point isolated output configuration, ideal for switching AC or DC loads up to 2A per channel.
Hot-swappable design for easy maintenance without disrupting system power.
Compatible with 1794 series FLEX I/O communication adapters and backplanes.
High surge current capability for demanding motor and solenoid applications.
LED diagnostics per channel for quick troubleshooting and status monitoring.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The 1794-OW8 Allen-Bradley FLEX I/O Output Module is a robust and versatile output solution engineered for distributed control systems in harsh industrial environments. This module provides eight individually isolated output channels, each capable of handling up to 2 amps of AC or DC current, making it suitable for driving relays, contactors, solenoids, and small motors. As part of the FLEX I/O family, the 1794-OW8 supports hot-swapping and seamless integration with various communication adapters, such as ControlNet, DeviceNet, and EtherNet/IP, ensuring flexible system architecture and reduced downtime. Its compact, rugged design withstands extreme temperatures and vibration, while per-channel LED indicators simplify maintenance and fault detection. Whether used in manufacturing, oil and gas, or water treatment, the 1794-OW8 delivers reliable performance and long service life, backed by Allen-Bradley’s legacy of industrial automation excellence.

Specification	Details
Product Type	FLEX I/O Output Module
Model Number	1794-OW8
Number of Outputs	8, individually isolated
Output Type	AC/DC (Standard Models)
Output Voltage Range	24V AC/DC to 240V AC
Output Current per Channel	2 A continuous (resistive load)
Surge Current (per channel)	10 A for 10 ms
Isolation Voltage	1500V RMS (channel-to-backplane)
Off-State Leakage Current	Max 1.5 mA at rated voltage
On-State Voltage Drop	≤ 1.5V at rated current (DC models)
Response Time	ON: 1 ms; OFF: 1 ms (typical)
Power Supply Requirement	5V DC from backplane (30 mA typical)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz
Shock Resistance	30 g (11 ms half-sine)
Enclosure Type	Open-style, IP20 (when mounted in cabinet)
Dimensions (H x W x D)	94 x 48 x 70 mm (approx.)
Weight	0.15 kg (approx.)
Certifications	UL, CSA, CE, ATEX (Zone 2)
LED Indicators	1 green LED per channel (output status)
Wiring Type	Removable terminal block (screw-type)
Compatible Backplanes	1794-TB, 1794-TB3, 1794-TB6, 1794-TB6S
Communication Adapters	1794-ACNR, 1794-ADN, 1794-AENT, etc.
