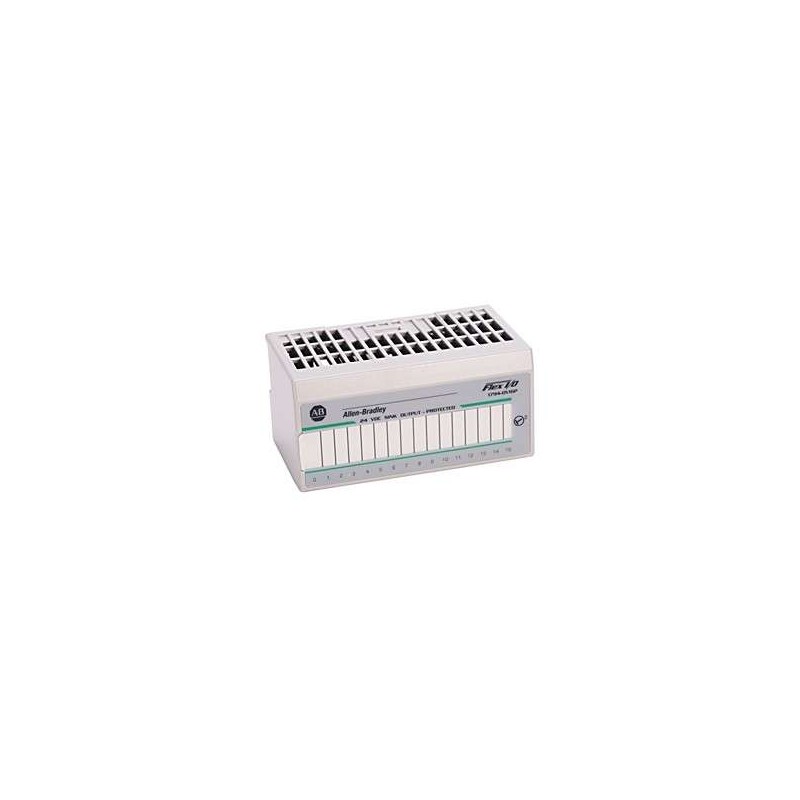

The Allen-Bradley 1794-OV16P is a robust and reliable FLEX I/O output module designed for demanding industrial automation environments. This 16-point module delivers 24V DC sinking outputs with individual channel isolation, ensuring precise and safe control of actuators, solenoids, and indicator lights. Engineered for seamless integration into the FLEX I/O platform, the 1794-OV16P supports hot-swappable installation and is compatible with a wide range of communication adapters (e.g., 1794-AENT, 1794-ASB). Its rugged construction and short-circuit protection make it a preferred choice for OEMs and system integrators requiring high-density output solutions in limited panel space.
| Parameter |
Specification |
| Product Type |
FLEX I/O Output Module |
| Part Number |
1794-OV16P |
| Number of Outputs |
16 (sinking) |
| Output Voltage |
24V DC (nominal) |
| Output Current per Point |
0.5 A (maximum) |
| Output Current per Module |
8 A (maximum) |
| Output Type |
Solid-state (MOSFET), short-circuit protected |
| Isolation Voltage |
1500V AC (channel-to-channel, channel-to-backplane) |
| Power Dissipation |
2.5 W (typical) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% non-condensing |
| Terminal Base Compatibility |
1794-TB3, 1794-TB3S, 1794-TB6, 1794-TB6S |
| Communication Adapter Compatibility |
1794-AENT, 1794-ASB, 1794-ACNR, 1794-ACN15, 1794-ACN15K |
| Dimensions (H x W x D) |
87 mm x 46 mm x 75 mm (3.4 in x 1.8 in x 3.0 in) |
| Weight |
0.13 kg (0.29 lb) |
| Certifications |
CE, UL, cUL, ATEX (Zone 2), Class I Div 2 |
| Wiring |
Removable terminal block, 14-22 AWG |
| Indicators |
Green LED per channel for output state |
| Protection |
Short-circuit, overcurrent, thermal shutdown |
| Application |
Discrete output control for industrial automation |
