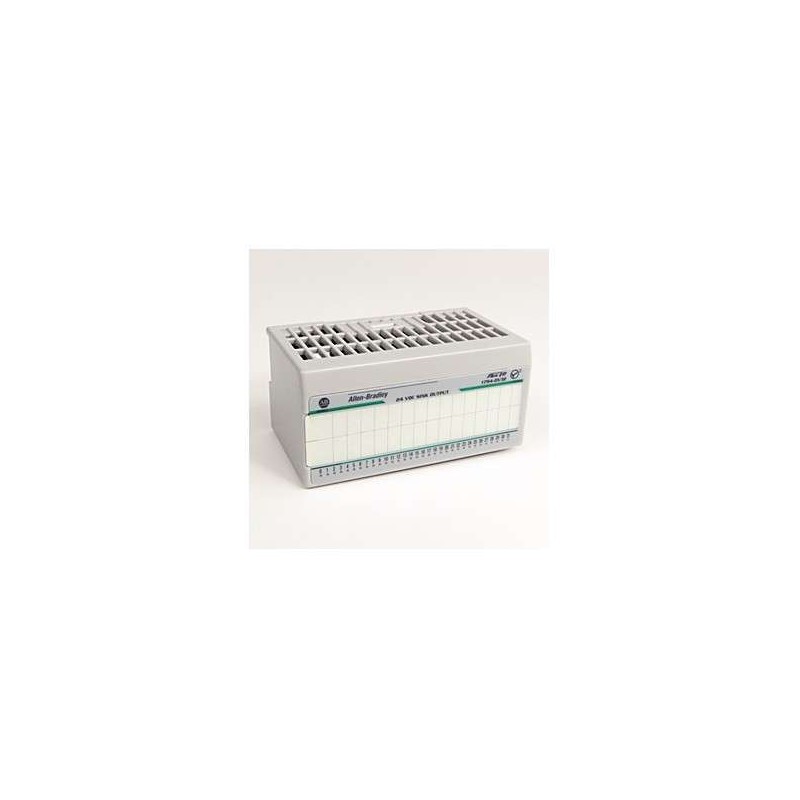

Allen-Bradley 1794-OV16 Flex I/O Output Module

Series#: AllenBradley

Product Details

1794-OV16 Allen-Bradley FLEX I/O Output Module: 16-point discrete output solution for industrial automation.
Rated for 10-30V DC operation, supporting 2A per output point and 8A per module (total).
High-density design reduces panel space while maintaining robust performance in harsh environments.
Integrated diagnostics and short-circuit protection ensure reliable operation in critical control systems.
Direct plug-in compatibility with 1794 FLEX I/O base units and communication adapters.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The 1794-OV16 Allen-Bradley FLEX I/O Output Module is a high-performance 16-point discrete output module engineered for demanding industrial control applications. As part of the Rockwell Automation FLEX I/O family, this module provides reliable switching for DC loads, with each output capable of handling up to 2A at 10-30V DC. Its compact, modular design integrates seamlessly into distributed control architectures, offering easy installation and maintenance without sacrificing signal integrity. The 1794-OV16 is ideal for controlling actuators, relays, and solenoid valves in manufacturing, process, and material handling systems, delivering consistent performance even under high vibration or temperature extremes.

Parameter	Specification
Product Type	Discrete Output Module
Series	FLEX I/O (1794)
Number of Outputs	16
Output Voltage Range	10-30V DC (sourcing)
Output Current per Point	2A maximum
Output Current per Module	8A maximum (total)
Output Type	Solid-state, non-isolated (common ground)
Short Circuit Protection	Yes, per point (electronic)
Inductive Load Suppression	Built-in flyback diodes
Power Dissipation	2.5W typical at 24V DC, all outputs on
Isolation Voltage	50V DC (output to backplane)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	5% to 95% non-condensing
Vibration Resistance	5g Standard Models 10-500 Hz (operating)
Shock Resistance	30g, 11 ms duration
Enclosure Rating	IP20 (with appropriate housing)
Terminal Type	Removable, spring-clamp (18-14 AWG)
Dimensions (H x W x D)	94 mm x 45 mm x 75 mm (3.70 in x 1.77 in x 2.95 in)
Weight	Approximately 0.15 kg (0.33 lb)
Compatible Base Units	1794-TB3, 1794-TB3S, 1794-TB6, 1794-TB6S
Compatible Communication Adapters	1794-ASB, 1794-AENT, 1794-AEN2P, 1794-ACNR15
Certifications	CE, UL, C-UL, ATEX (Zone 2), IECEx
