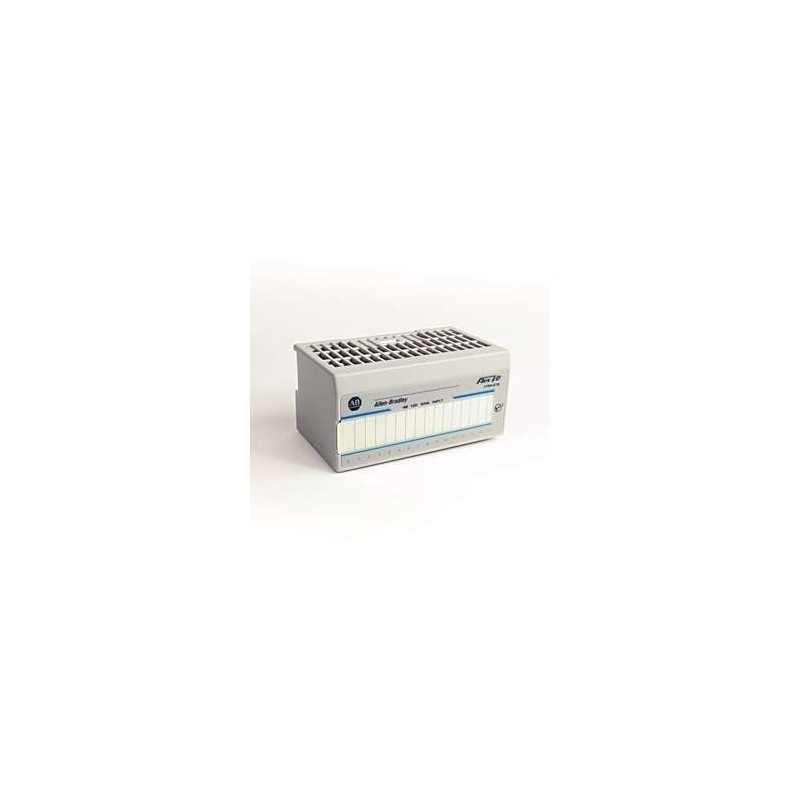

Allen-Bradley 1794-IC16 Flex I/O Digital Input Module

Allen-Bradley 1794-IC16 Flex I/O Digital Input Module

Series#: AllenBradley

Product Details

1794-IC16 ALLEN-BRADLEY FLEX I/O Digital Input Module – 16-point DC sinking input for industrial control systems.
Supports 24V DC nominal input voltage with high-speed response for reliable sensor and switch monitoring.
Hot-swappable design reduces downtime in critical automation processes without powering down the backplane.
Compatible with all FLEX I/O communication adapters, including ControlNet, DeviceNet, and EtherNet/IP networks.
Built-in LED indicators per channel for instant diagnostics and troubleshooting on the factory floor.
Rugged industrial enclosure rated for harsh environments, with isolation and surge protection for long-term durability.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The Allen-Bradley 1794-IC16 is a high-density digital input module within the FLEX I/O family, designed to interface directly with 24V DC discrete sensors, limit switches, and pushbuttons in distributed control architectures. This module features 16 sinking inputs (current-sourcing from the field device) and provides optical isolation between the field wiring and the backplane logic, ensuring noise immunity and safety in industrial environments. With a typical input current of 8 mA per point at 24V DC, the 1794-IC16 supports fast update times and can be mounted in any FLEX I/O base unit (1794-TB3, 1794-TB3S, or 1794-TB3K) for easy wiring. The module is fully compatible with Rockwell Automation’s FLEX I/O communication adapters (e.g., 1794-AENT, 1794-ACNR15) and integrates seamlessly into ControlLogix, CompactLogix, and PLC-5 systems via remote I/O networks. For critical applications, the 1794-IC16 offers channel-to-channel isolation and is rated for operation from -20°C to +55°C, making it suitable for both indoor and outdoor industrial installations.

Parameter	Specification
Product Series	1794 FLEX I/O
Module Type	Digital Input Module
Number of Inputs	16 (sinking, 2-wire)
Input Voltage Range	10–30V DC (nominal 24V DC)
Input Current per Point	8 mA typical at 24V DC
Input Off-State Voltage	Maximum 5V DC
Input On-State Current	Minimum 2 mA
Input Delay (Off-to-On)	1 ms typical
Input Delay (On-to-Off)	1 ms typical
Isolation Voltage	1500V AC between field and backplane (1 minute)
Power Dissipation	2.5 W maximum (all inputs on)
Terminal Base Compatibility	1794-TB3, 1794-TB3S, 1794-TB3K
Operating Temperature	-20°C to +55°C (-4°F to +131°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10–500 Hz per IEC 60068-2-6
Shock Resistance	30 g per IEC 60068-2-27
LED Indicators	16 green LEDs (one per input channel)
Weight	Approximately 0.15 kg (0.33 lb)
Certifications	CE, UL, CSA, ATEX (Zone 2), IECEx
