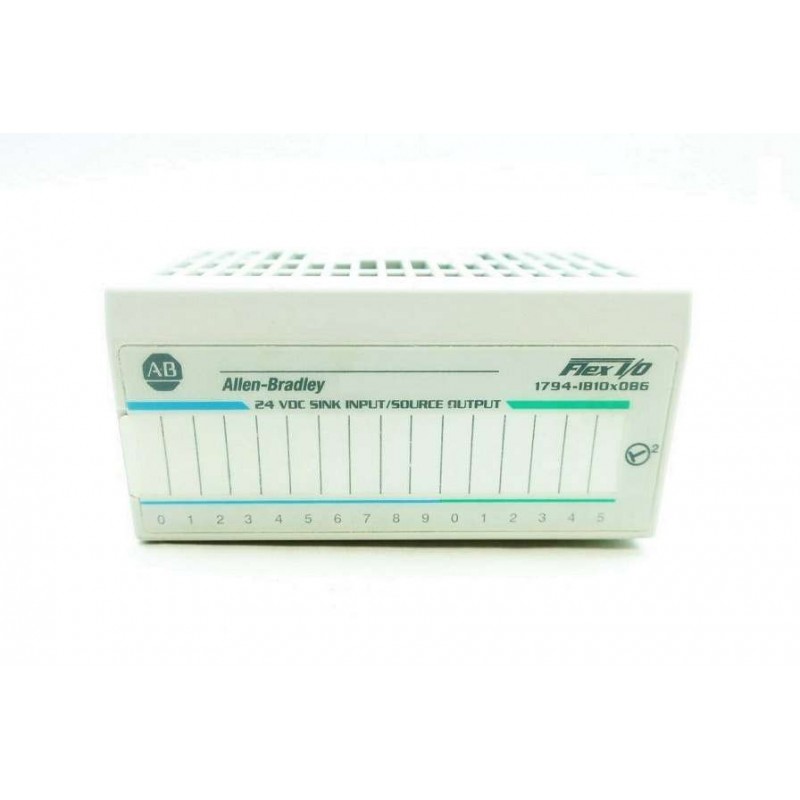

The 1794-IB10XOB6 is a high-performance FLEX I/O module from Allen-Bradley, designed to deliver 10 discrete input channels and 6 discrete output channels in a single, space-saving unit. This module is engineered for demanding industrial applications where reliability, flexibility, and ease of integration are paramount. The input side accepts 24V DC signals from sensors, switches, or other field devices, while the output side provides 24V DC control signals to actuators, relays, or indicator lights, each rated at 0.5A. The 1794-IB10XOB6 supports hot-swapping, allowing replacement without powering down the system, and features robust electrical isolation to protect against transients and ground loops. It communicates via the FLEX backplane, compatible with leading Rockwell Automation controllers. Below is the comprehensive specification table for this module.
| Parameter |
Specification |
| Product Type |
FLEX I/O Digital Input/Output Module |
| Model Number |
1794-IB10XOB6 |
| Input Channels |
10 (Sink/Source, 24V DC) |
| Output Channels |
6 (Source, 24V DC, 0.5A per channel) |
| Input Voltage Range |
10-30V DC (nominal 24V DC) |
| Output Voltage Range |
20.4-26.4V DC (nominal 24V DC) |
| Output Current per Channel |
0.5A continuous, 2A peak (100ms) |
| Total Output Current per Module |
3A maximum |
| Input Current per Channel |
8 mA typical at 24V DC |
| Isolation Voltage |
1500V AC between I/O and backplane; 500V AC between channels |
| Response Time (Input) |
Off-to-On: 1 ms; On-to-Off: 1 ms |
| Response Time (Output) |
Off-to-On: 0.5 ms; On-to-Off: 0.5 ms |
| Backplane Current Consumption |
50 mA at 5V DC; 100 mA at 24V DC |
| Power Dissipation |
2.5 W typical |
| Operating Temperature |
0°C to +60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% non-condensing |
| Vibration Resistance |
5 g Standard Models 10-500 Hz (IEC 60068-2-6) |
| Shock Resistance |
30 g peak (IEC 60068-2-27) |
| Enclosure Type |
Open-style, DIN-rail mountable |
| Weight |
Approximately 0.2 kg (0.44 lb) |
| Dimensions (H x W x D) |
87 mm x 52 mm x 75 mm (3.4 in x 2.0 in x 3.0 in) |
| Wiring |
Removable terminal blocks (18-14 AWG) |
| LED Indicators |
Green for power/status; yellow for each channel (I/O state) |
| Compatible Backplanes |
1794-TB, 1794-TBN, 1794-TB3S, 1794-TB3SN (all FLEX I/O backplane types) |
| Standards Compliance |
UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2), IECEx |
| Warranty |
2 years (subject to manufacturer policy) |
