Allen-Bradley 1794-IA16 FLEX I/O AC Input Module

Series#: AllenBradley

Product Details

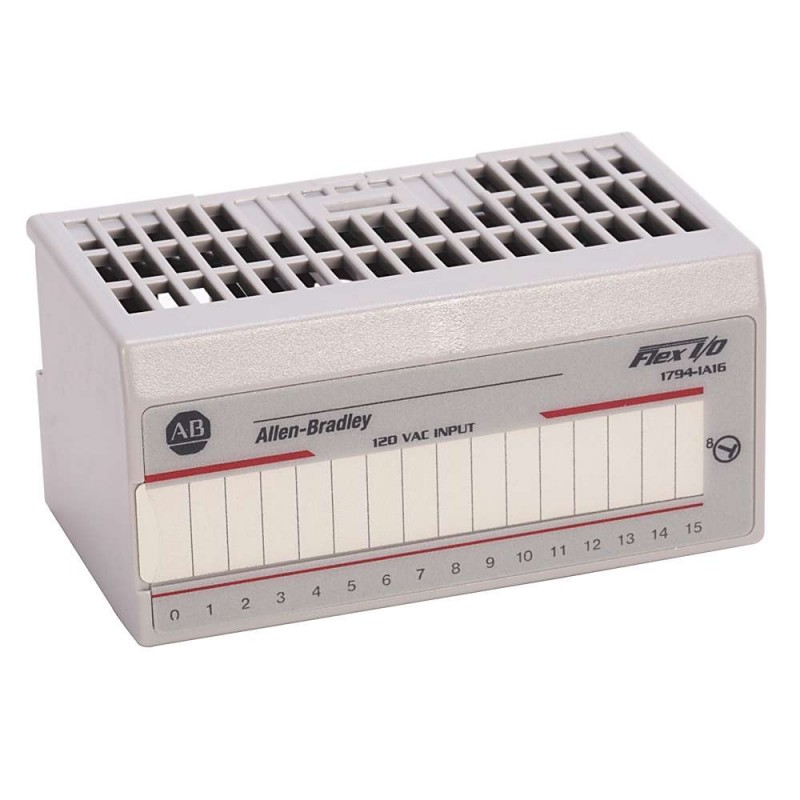

1794-IA16 – Allen-Bradley FLEX I/O AC Input Module for reliable industrial automation.
16-point discrete AC input interface, ideal for monitoring 120/240VAC field devices.
Compact, modular design simplifies panel wiring and reduces installation costs in distributed I/O systems.
High noise immunity and opto-isolation for robust performance in harsh factory environments.
Hot-swappable under FLEX I/O architecture, minimizing downtime during maintenance.
Compatible with standard 1794-series terminal bases and communication adapters for seamless integration.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Allen-Bradley 1794-IA16 FLEX I/O AC Input Module is a cornerstone component for modern distributed control systems, engineered to interface directly with AC field devices such as limit switches, push buttons, and proximity sensors. This 16-point module operates at 85-265VAC (47-63 Hz), providing a cost-effective solution for monitoring AC signals in manufacturing, process control, and material handling applications. Its rugged design features optical isolation per channel, ensuring reliable data acquisition even in electrically noisy environments. The module mounts onto any 1794-series terminal base (e.g., 1794-TB3 or 1794-TB6) and communicates via the FLEX I/O backplane, supporting both local and remote I/O configurations. With a wide operating temperature range of 0°C to 60°C and UL, CSA, and CE certifications, the 1794-IA16 is built for long-term, maintenance-free service in demanding industrial settings.

Parameter	Specification
Product Family	Allen-Bradley FLEX I/O
Model Number	1794-IA16
Input Type	AC Discrete Input
Number of Inputs	16 (single-ended, grouped)
Input Voltage Range	85-265VAC (47-63 Hz)
Input Current (per point)	10 mA typical at 120VAC
Off-State Voltage	≤ 20VAC
On-State Voltage	≥ 60VAC
Isolation Voltage	2500VAC (channel-to-backplane, 1 min)
Backplane Current (5V DC)	150 mA (typical)
Backplane Current (24V DC)	0 mA (no power required from backplane)
Power Dissipation	3.5W (max)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	5 g Standard Models 10-500 Hz (per IEC 60068-2-6)
Shock Resistance	30 g (per IEC 60068-2-27)
Terminal Base Compatibility	1794-TB3, 1794-TB6, 1794-TB3S, 1794-TB6S
Communication Adapter	1794-AENT, 1794-ACNR, 1794-ASB, etc.
Indicators	Green LED per input (on-state)
Wiring	Removable terminal block, 14-22 AWG
Weight	0.18 kg (0.4 lb)
Certifications	UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2)
