Allen-Bradley 1794-FLA FlexLogix Adapter Module

Series#: AllenBradley

Product Details

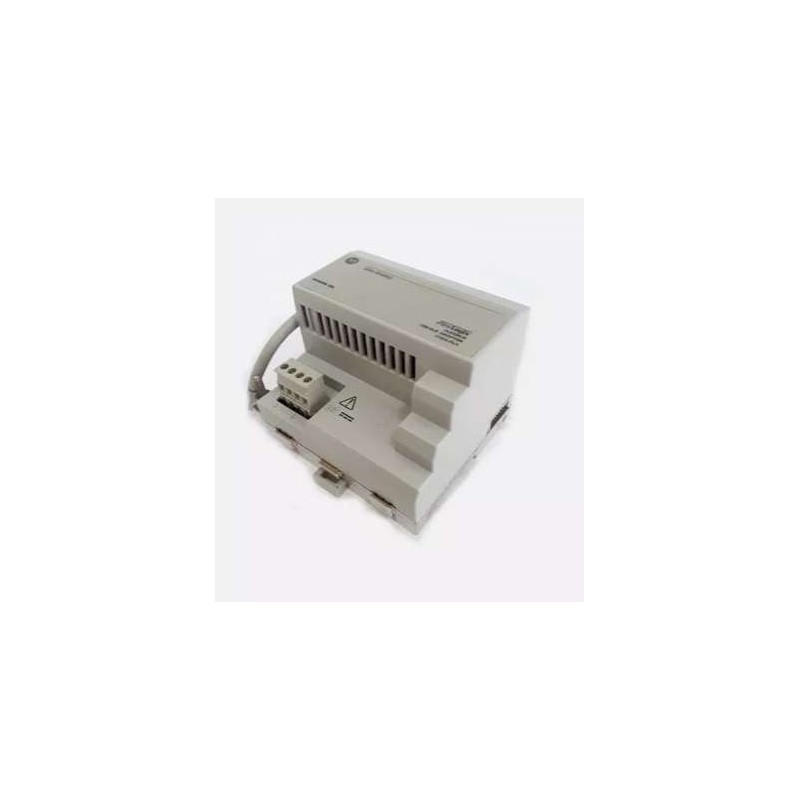

1794-FLA Allen-Bradley FlexLogix Extended Local I/O Adapter – the backbone for seamless Flex I/O module integration.
Supports up to 8 Flex I/O modules per adapter, enabling scalable, distributed control architectures.
High-speed backplane communication up to 5 Mbps, ensuring deterministic data exchange in real-time applications.
Built-in diagnostic LEDs for module status, network activity, and fault detection, simplifying troubleshooting.
Rugged industrial design rated for -20°C to +60°C operating temperature, suitable for harsh environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1794-FLA Extended Local I/O Adapter is a critical component for FlexLogix-based control systems, designed to interface seamlessly with Flex I/O modules in distributed automation networks. This adapter extends the local I/O capacity without requiring additional controllers, making it ideal for mid-range applications requiring modular expansion. Engineered for high reliability, the 1794-FLA supports up to 8 Flex I/O modules per adapter and communicates via the FlexLogix backplane at speeds up to 5 Mbps. Its compact form factor and robust enclosure allow deployment in control cabinets with limited space. The adapter features comprehensive diagnostic LEDs for rapid system health checks and is fully compatible with standard FlexLogix controllers and software tools such as RSLogix 5000. Below are the detailed technical specifications.

Attribute	Specification
Product Type	Extended Local I/O Adapter
Series	FlexLogix
Part Number	1794-FLA
Supported I/O Modules	Flex I/O (1794 series) – up to 8 modules per adapter
Backplane Communication Speed	5 Mbps
Power Supply Voltage	24 V DC nominal (18-32 V DC range)
Current Consumption	150 mA Standard Models 24 V DC (typical, excluding I/O module power)
Isolation	500 V DC between backplane and logic
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Shock Resistance	30 g peak, 11 ms duration (operational)
Vibration Resistance	2 g Standard Models 10-500 Hz (operational)
Enclosure Rating	IP20 (open-type, for use in cabinet)
Indicators	Power (PWR), Module Status (MS), Network Status (NS), I/O Status (IO)
Dimensions (H x W x D)	87 mm x 22.5 mm x 115 mm (3.43 in x 0.89 in x 4.53 in)
Weight	Approx. 0.12 kg (0.26 lb)
Wiring	Removable screw terminal blocks (supplied)
Compatible Controllers	FlexLogix 1794-L33, 1794-L34, and other standard FlexLogix controllers
Software Compatibility	RSLogix 5000 (version 16 or later), Studio 5000
Certifications	UL Listed, CE, CSA, ATEX (Zone 2, when installed per guidelines)
Warranty	1 year (manufacturer defect)
Shipping	Global, same-day dispatch available for stock items
