Allen-Bradley 1794-ADN DeviceNet Adapter Module

Series#: AllenBradley

Product Details

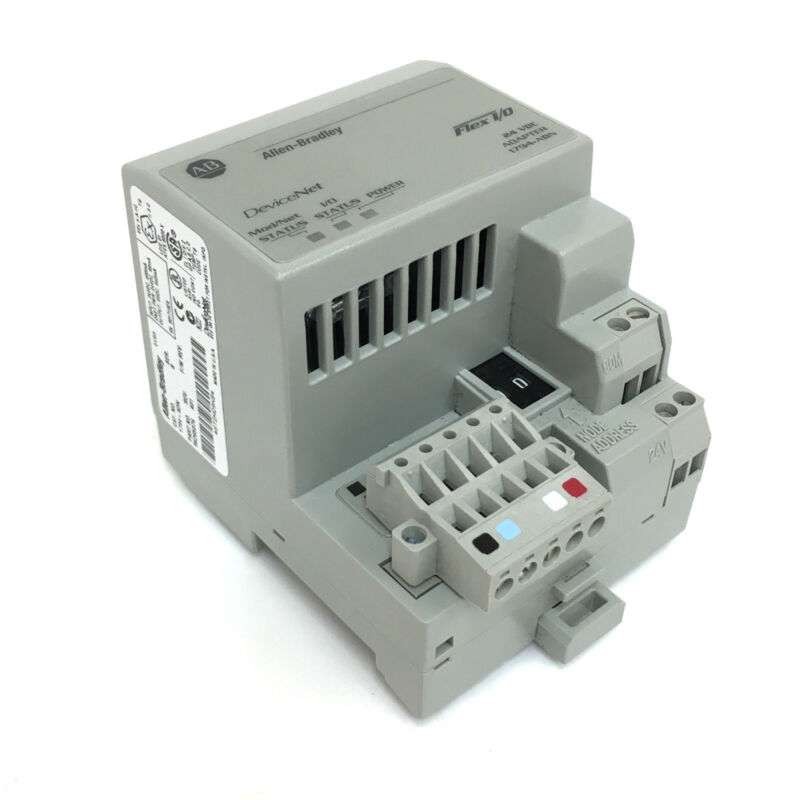

Allen-Bradley 1794-ADN DeviceNet FLEX I/O 24V DC Media Adapter Module – The backbone for seamless DeviceNet network integration in distributed I/O systems.
Supports up to 8 FLEX I/O modules per adapter, reducing wiring and cabinet space while maximizing system flexibility.
Operates on 24V DC power with built-in DeviceNet communication interface, enabling fast data exchange and diagnostics via the network.
Rugged industrial design rated for -20°C to 60°C ambient temperature, ideal for harsh manufacturing environments.
Plug-and-play installation with removable terminal blocks and DIN-rail mounting, simplifying field maintenance and expansion.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Allen-Bradley 1794-ADN is a high-performance DeviceNet media adapter module designed for the FLEX I/O platform, offering a reliable and compact solution for connecting distributed I/O points to a DeviceNet network. Operating on a 24V DC power supply, this module acts as the communication interface between the controller and up to eight FLEX I/O modules, streamlining data acquisition and control in applications such as assembly lines, packaging machinery, and material handling systems. With its robust construction and support for network diagnostics, the 1794-ADN ensures efficient real-time monitoring and reduced troubleshooting time, making it a cornerstone for modern industrial automation architectures.

Parameter	Specification
Product Type	DeviceNet Media Adapter Module
Model Number	1794-ADN
Network Protocol	DeviceNet (CIP-based)
Power Supply	24V DC (nominal), range 18-30V DC
Current Consumption	200 mA at 24V DC (typical, without I/O modules)
Maximum I/O Modules Supported	8 FLEX I/O modules
Communication Rate	125 kbps, 250 kbps, or 500 kbps (auto-negotiation)
DeviceNet Connector	5-pin open-style (male) for network cable
Status Indicators	Module Status (MS), Network Status (NS), Power Status (PS)
Isolation Voltage	50V (continuous), basic insulation type
Ambient Temperature	-20°C to 60°C (operating), -40°C to 85°C (storage)
Humidity	5% to 95% non-condensing
Vibration Resistance	5 g Standard Models 10-500 Hz (per IEC 60068-2-6)
Shock Resistance	30 g peak (per IEC 60068-2-27)
Enclosure Type	Open-style, IP20 (NEMA 1 equivalent)
Mounting	DIN-rail (35 mm) or panel mount
Wiring	Removable terminal blocks (screw type)
Dimensions (H x W x D)	Approx. 94 mm x 50 mm x 75 mm (3.7 in x 2.0 in x 2.95 in)
Weight	Approx. 120 g (0.26 lb)
Certifications	CE, cULus, ATEX (Zone 2), IECEx, RoHS
Compatible Devices	Allen-Bradley ControlLogix, CompactLogix, SLC 500, PLC-5 via DeviceNet scanner
