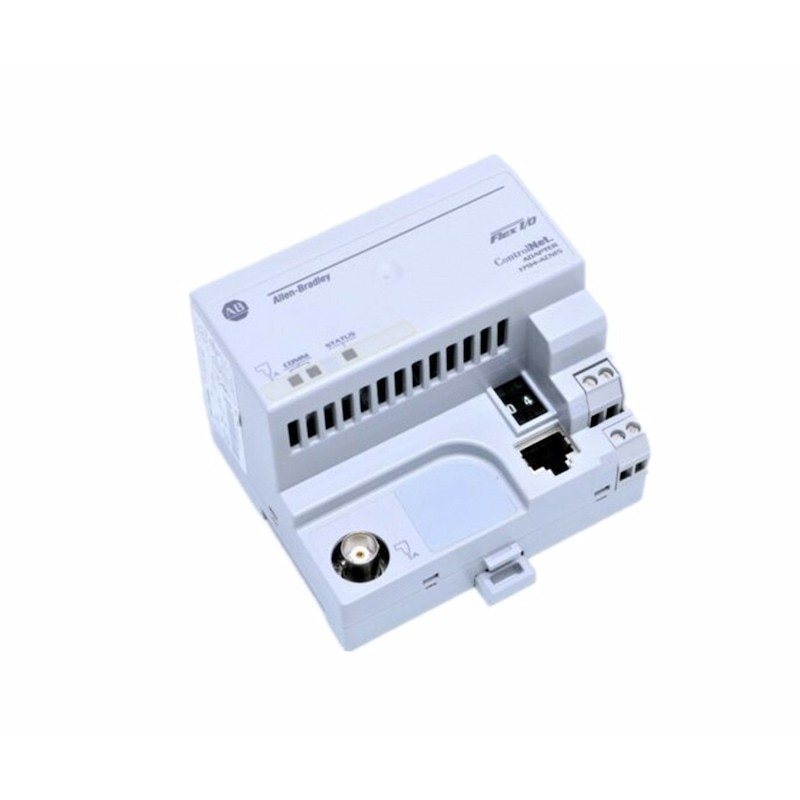

The 1794-ACN15K ALLEN-BRADLEY ControlNet FLEX I/O Adapter Module is a robust interface unit that bridges ControlNet networks with FLEX I/O modules, providing reliable and high-performance data acquisition and control in industrial automation systems. This conformally coated version ensures superior resistance to environmental stressors, making it ideal for use in wet, dusty, or chemically aggressive settings. The adapter module supports redundant media for enhanced network availability and features a user-friendly configuration interface, simplifying setup and diagnostics. It is a critical component for applications requiring deterministic communication, such as process control, manufacturing, and material handling.
| Parameter |
Specification |
| Product Type |
ControlNet FLEX I/O Adapter Module |
| Model Number |
1794-ACN15K |
| Manufacturer |
ALLEN-BRADLEY (Rockwell Automation) |
| Network Protocol |
ControlNet (CIP-based) |
| Communication Rate |
5 Mbps |
| Maximum Nodes per Network |
99 nodes (with repeaters) |
| Maximum Cable Length |
1000 m (without repeaters) |
| Coating Protection |
Conformal coating (humidity, dust, chemical resistance) |
| Power Supply Voltage |
24V DC (nominal) |
| Power Consumption |
5.5 W (typical) |
| Current Draw |
230 mA at 24V DC |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Enclosure Rating |
IP20 (when installed in appropriate cabinet) |
| Dimensions (H x W x D) |
Approx. 87 mm x 94 mm x 53 mm (3.4 in x 3.7 in x 2.1 in) |
| Weight |
Approx. 0.2 kg (0.44 lbs) |
| Network Connector |
BNC (coaxial) for ControlNet trunk cable |
| I/O Module Support |
Up to 8 FLEX I/O modules per adapter |
| Configuration Software |
RSLogix 5000, RSNetWorx for ControlNet |
| Diagnostics |
LED indicators for network status, module status, and fault |
| Redundancy Support |
Yes (redundant media via ControlNet) |
| Certifications |
CE, UL, CSA, ATEX (for certain models) |
| Shipping |
In stock, ready for same-day dispatch |
