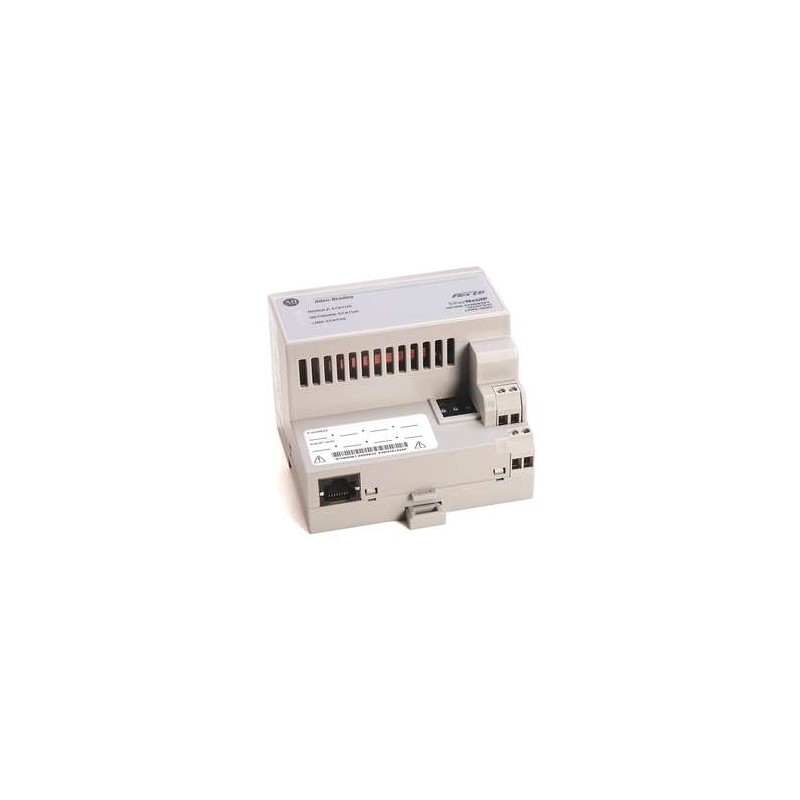

Allen-Bradley 1794-AENT EtherNet/IP Adapter Module

Allen-Bradley 1794-AENT EtherNet/IP Adapter Module

Series#: AllenBradley

Product Details

1794-AENT Allen-Bradley Ethernet/IP 10/100 Mbps Flex I/O Adapter Module – High-performance communication interface for distributed I/O systems.
Supports 10/100 Mbps auto-negotiating Ethernet/IP network for seamless integration into ControlLogix, CompactLogix, and PLC-5 environments.
Up to 8 Flex I/O modules per adapter, enabling flexible and scalable remote I/O configurations.
Robust industrial design with DIN-rail mounting, wide temperature range (-20°C to +60°C), and IP20 protection for harsh environments.
Features built-in web server for diagnostics, configuration, and health monitoring via standard browser interface.
Compliant with ODVA conformance and certified for use in Class I, Division 2 hazardous locations.
100% Genuine and New, rigorously inspected before international dispatch.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The Allen-Bradley 1794-AENT is a high-reliability Ethernet/IP adapter module designed for the Flex I/O platform, enabling efficient remote I/O communication over standard 10/100 Mbps Ethernet networks. This module acts as a bridge between the controller (e.g., ControlLogix or CompactLogix) and up to eight Flex I/O modules, supporting both digital and analog signals. With its auto-negotiating Ethernet port, the 1794-AENT ensures seamless integration into existing industrial networks, while the built-in web server provides real-time diagnostics and configuration capabilities. Ideal for applications requiring distributed I/O in manufacturing, process control, or material handling, this adapter is built to withstand industrial environments with its robust enclosure and wide operating temperature range. Below are the detailed specifications derived from the product’s technical datasheet.

Parameter	Specification
Product Name	1794-AENT Flex I/O Ethernet/IP Adapter Module
Manufacturer	Allen-Bradley (Rockwell Automation)
Communication Protocol	Ethernet/IP (CIP)
Network Speed	10/100 Mbps, auto-negotiating, full/half duplex
Connector Type	RJ45 (shielded)
Max Number of I/O Modules	8 (Flex I/O series)
I/O Capacity (per adapter)	Up to 128 digital points or 32 analog channels (depending on module type)
Power Supply Voltage	24V DC (nominal), range 19.2-31.2V DC
Power Consumption	5.0W (typical) at 24V DC
Current Draw (from backplane)	210 mA at 5V DC (typical)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20 (NEMA 1)
Mounting Type	DIN-rail (35 mm) or panel mount
Dimensions (H x W x D)	94 mm x 87 mm x 69 mm (3.70 in x 3.43 in x 2.72 in)
Weight	0.25 kg (0.55 lb)
LED Indicators	Power, Module Status, Network Status, Link/Activity, I/O Status
Diagnostics	Built-in web server, CIP generic object, and status LEDs
Hazardous Location Certification	Class I, Division 2, Groups A, B, C, D (UL, cUL, ATEX, IECEx)
Standards Compliance	ODVA conformance, CE, RoHS, cULus, FCC Part 15
Software Configuration	RSLogix 5000, Studio 5000, or RSNetWorx for Ethernet/IP
Wiring Style	Removable terminal blocks (screw-type) for power and network
Backplane Current (max)	1.0A at 5V DC (shared with I/O modules)
Isolation Voltage	1500V AC for 1 minute (network to system)
