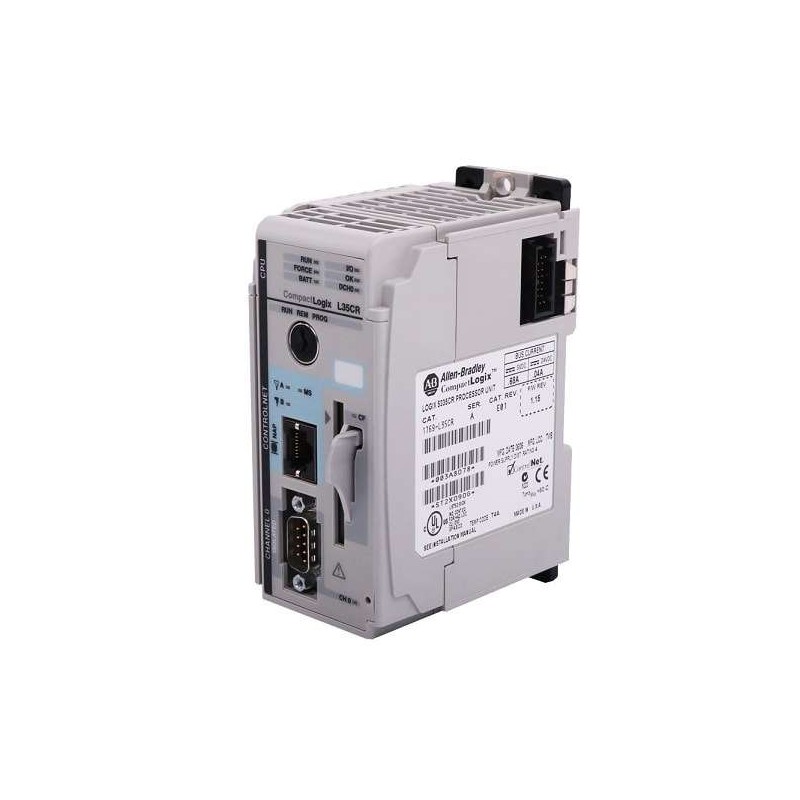

The Allen-Bradley 1769-L35CR CompactLogix controller delivers a compact yet powerful solution for demanding automation tasks, seamlessly integrating logic, motion, and process control. Engineered for scalability, this controller supports a wide range of I/O modules and network protocols, making it a versatile choice for OEMs and system integrators. With its rugged construction and extensive memory, the 1769-L35CR ensures consistent performance even in challenging industrial environments, while its modular design simplifies expansion and maintenance.
| Specification |
Details |
| Product Type |
CompactLogix Controller |
| Model Number |
1769-L35CR |
| Processor Type |
32-bit RISC |
| User Memory |
1.5 MB (for logic, data, and configuration) |
| Maximum Local I/O Modules |
30 (in a single 1769 chassis) |
| Maximum Digital I/O (Local) |
480 points |
| Maximum Analog I/O (Local) |
120 channels |
| Network Support |
EtherNet/IP, ControlNet, DeviceNet (via add-on modules) |
| Serial Port |
1 x RS-232 (non-isolated) |
| USB Port |
1 x USB 2.0 (for programming only) |
| Power Supply |
Integrated 24V DC (requires external power source) |
| Program Execution Rate |
0.08 ms per 1K Boolean instructions (typical) |
| Operating Temperature Range |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
2 g Standard Models 10-500 Hz (operating) |
| Shock Resistance |
30 g (operating) |
| Enclosure Type |
Open-style (IP20 rating with proper mounting) |
| Dimensions (H x W x D) |
118 mm x 87 mm x 105 mm (4.65 in x 3.43 in x 4.13 in) |
| Weight |
Approximately 0.45 kg (1.0 lb) |
| Certifications |
UL, CSA, CE, ATEX (Class I, Div 2) |
| Programming Software |
RSLogix 5000 (Version 16 or later) / Studio 5000 |
| Warranty |
Standard 1-year (extended options available) |
