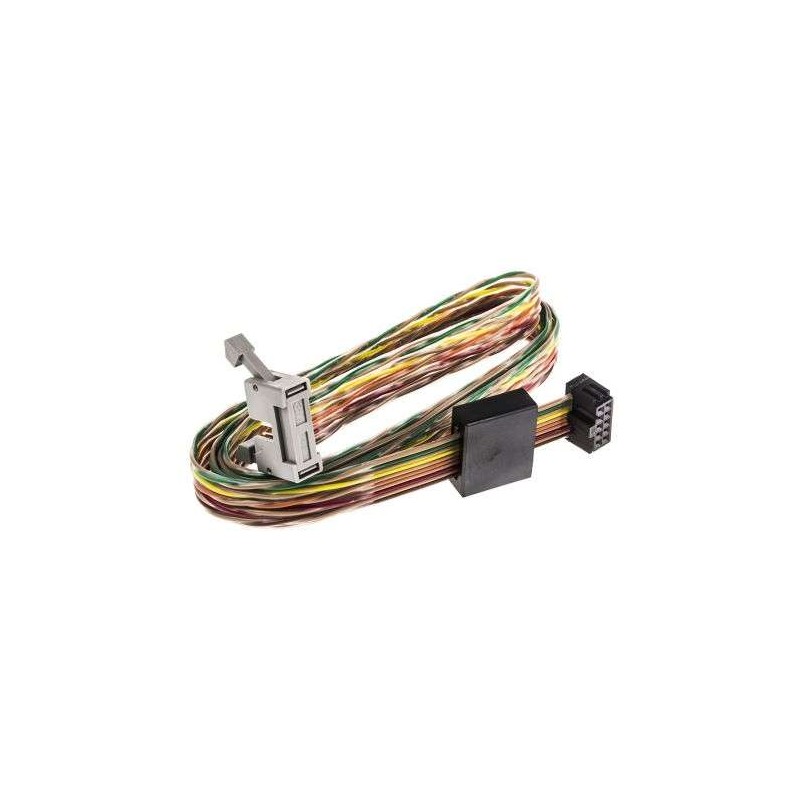

The 6ES7290-6AA20-0XA0 SIEMENS SIMATIC S7-200 Expansion Cable is a critical interconnection component designed to extend the distance between the S7-200 CPU and its expansion modules. This cable maintains full signal integrity over extended lengths, enabling flexible system layouts in control cabinets or distributed automation setups. It is engineered for high-reliability applications such as conveyor systems, packaging machinery, and building automation. The cable features a robust shielded construction to minimize noise coupling and ensure error-free data exchange, even in electrically noisy environments. Each unit is factory-tested and supplied in original packaging, guaranteeing seamless integration with standard S7-200 hardware.
| Parameter |
Specification |
| Product Type |
Expansion Cable for SIMATIC S7-200 |
| Model Number |
6ES7290-6AA20-0XA0 |
| Connector Type |
20-pin ribbon connector (both ends) |
| Cable Length |
0.8 meters (standard length) |
| Shielding |
Yes, braided copper shield with drain wire |
| Insulation Material |
PVC (polyvinyl chloride), flame-retardant |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +70°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1g |
| Shock Resistance |
15g, 11 ms half-sine pulse |
| Compatible CPUs |
CPU 221, CPU 222, CPU 224, CPU 226, CPU 224XP (all versions) |
| Compatible Expansion Modules |
EM221, EM222, EM223, EM231, EM232, EM235, EM241, EM253, EM277, EM287, and all standard S7-200 modules |
| Maximum Number of Modules per Cable |
1 (direct connection between CPU and one module, or between two modules) |
| Certifications |
CE, UL, cUL, RoHS compliant |
| Weight |
Approx. 50 g |
| Packaging |
Original SIEMENS sealed bag with label |
