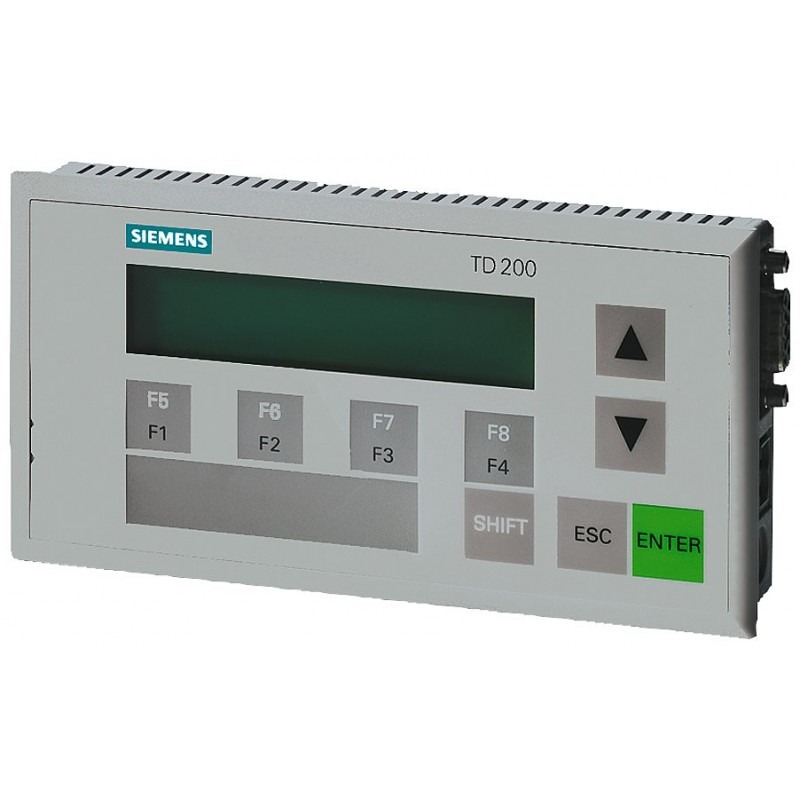

The SIEMENS SIMATIC S7-200 TD200C, specifically model 6ES7272-1AA10-0YA0, is a rugged and versatile adjustable text display designed for seamless integration with the S7-200 PLC family. This operator interface provides a cost-effective solution for local machine control, status monitoring, and parameter entry in demanding industrial automation systems. With its intuitive membrane keypad and high-contrast backlit LCD, the TD200C ensures clear visibility even in low-light or high-vibration environments. It supports up to 80 characters per screen (20 characters x 4 lines) and can store multiple user-defined text messages, making it ideal for applications requiring simple yet reliable human-machine interaction. The unit communicates directly via the PPI protocol, requiring no external power supply or complex wiring, and is fully configurable using the standard STEP 7-Micro/WIN software. This model is engineered for long-term durability, featuring an IP65-rated front panel that withstands splash water and dust ingress, while the rear housing offers IP20 protection for control cabinet installation.
| Parameter |
Specification |
| Product Type |
Adjustable Text Display (Operator Interface) |
| Model Number |
6ES7272-1AA10-0YA0 |
| Compatible PLC Family |
SIEMENS SIMATIC S7-200 (CPU 21x, 22x) |
| Display Type |
Backlit LCD, monochrome |
| Display Resolution |
20 characters x 4 lines (80 characters total) |
| Character Size |
5 x 7 pixel matrix |
| Keypad |
Membrane keypad, 8 tactile keys (4 cursor keys + 4 function keys) |
| Communication Interface |
PPI (Point-to-Point Interface) via RS-485 |
| Communication Speed |
9.6 kbps, 19.2 kbps, or 187.5 kbps (auto-negotiable) |
| Power Supply |
5 VDC from S7-200 CPU via PPI cable (no external supply needed) |
| Power Consumption |
Typical 1.5 W, maximum 2.5 W |
| Memory |
Up to 80 text messages stored in non-volatile memory |
| User Configuration |
Via STEP 7-Micro/WIN software (V4.0 or later) |
| Protection Rating (Front) |
IP65 (NEMA 4X) – dust-tight and protected against water jets |
| Protection Rating (Rear) |
IP20 |
| Operating Temperature |
0°C to +55°C (32°F to 131°F) |
| Storage Temperature |
-40°C to +70°C (-40°F to 158°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Vibration Resistance |
10 Hz to 57 Hz, 0.075 mm amplitude; 57 Hz to 150 Hz, 1 g acceleration |
| Shock Resistance |
15 g peak acceleration, 11 ms pulse duration |
| Dimensions (W x H x D) |
120 mm x 80 mm x 40 mm (4.72 in x 3.15 in x 1.57 in) |
| Cutout Dimensions (Panel Mount) |
110 mm x 68 mm (4.33 in x 2.68 in) |
| Weight |
Approximately 150 g (0.33 lb) |
| Cable Length (Standard) |
2.5 m (8.2 ft) with RJ-11 connector to S7-200 CPU |
| Certifications |
CE, UL, cUL, FM Class I Div 2 (for hazardous locations) |
| Warranty |
12 months from date of shipment |
