Siemens 6ES7272-0AA30-0YA1 Text Display

Series#: Siemens

Product Details

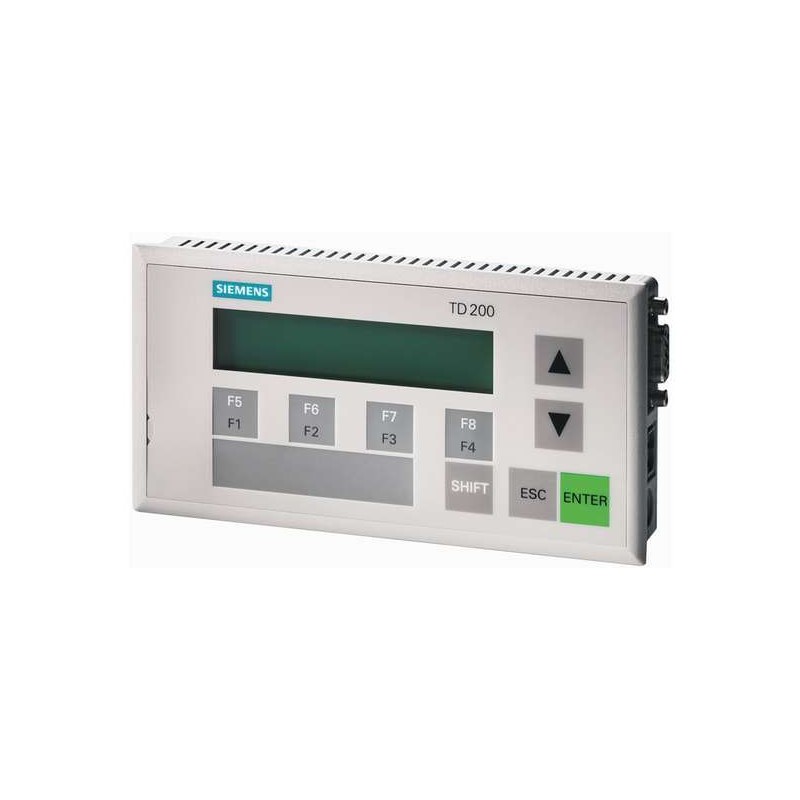

【6ES7272-0AA30-0YA1】SIEMENS SIMATIC S7 TD 200 Text Display – a dedicated operator interface for S7-200 PLC systems.
Compact and rugged design, ideal for basic HMI tasks in industrial automation environments.
Features a 2-line, 20-character backlit LCD display for clear text and status messages.
Supports up to 8 function keys with customizable legends for intuitive operator control.
Direct connection to S7-200 via PPI interface, no additional programming required.
Simplifies machine diagnostics and parameter adjustments without a PC.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SIEMENS SIMATIC S7 TD 200 Text Display, model 6ES7272-0AA30-0YA1, is a compact operator panel engineered for seamless integration with the S7-200 PLC family. This unit provides a cost-effective solution for basic text-based human-machine interface tasks, enabling operators to view process data, alarms, and messages directly on the factory floor. Its robust construction ensures reliable performance in harsh industrial conditions, while the backlit LCD and tactile keypad facilitate easy interaction even in low-light environments. The TD 200 is designed for quick setup, leveraging the PPI protocol for direct communication without complex configuration, making it a staple for machine builders and maintenance teams requiring a simple yet effective display.

Parameter	Specification
Product Type	Text Display (Operator Panel)
Model Number	6ES7272-0AA30-0YA1
Compatible PLC Family	SIEMENS SIMATIC S7-200
Display Type	Backlit LCD, monochrome
Display Resolution	2 lines x 20 characters
Character Set	ASCII, with extended European characters
Keypad	8 function keys (F1-F8) + 4 cursor keys + 3 system keys (ESC, ENTER, SHIFT)
Key Life	≥ 1 million actuations
Communication Interface	RS-485 (PPI protocol, 9.6 kbps to 187.5 kbps)
Power Supply	24 V DC (via PLC or external source, 2.5 W max)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Protection Rating	IP65 (front panel when mounted)
Dimensions (W x H x D)	148 mm x 90 mm x 27 mm
Weight	Approx. 200 g
Mounting	Panel cutout (138 mm x 80 mm)
Programming Software	Step 7 Micro/WIN (via S7-200 CPU)
Memory	Non-volatile for configuration storage
Languages Supported	Multiple (configurable via software)
Certifications	CE, UL, cULus
Country of Origin	Germany (typical)
