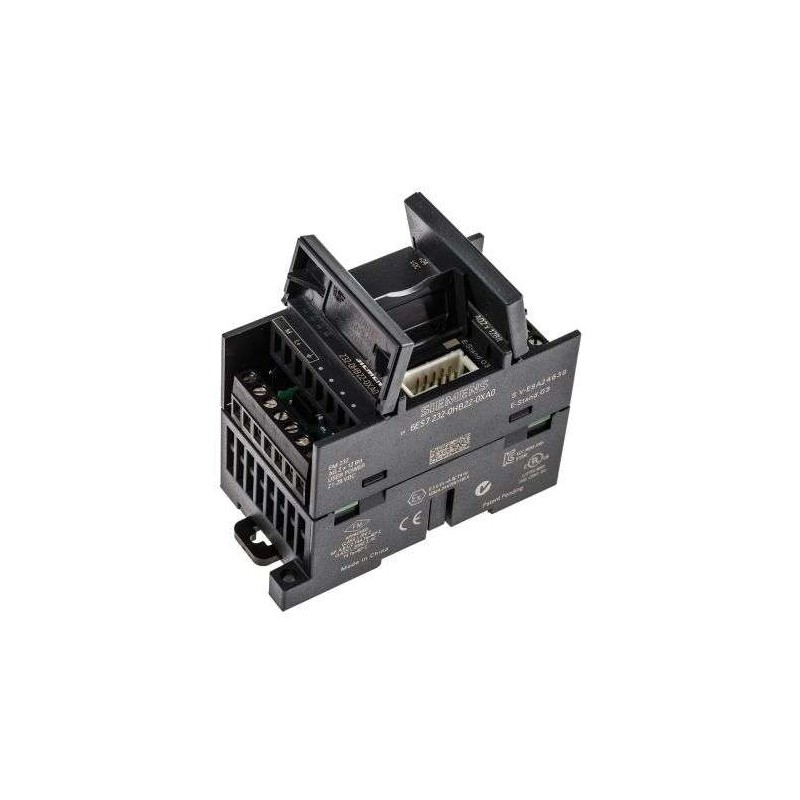

The Siemens SIMATIC S7-200 Analog Output EM 232 module, model 6ES7232-0HB22-0XA0, is a compact and reliable expansion module designed for the S7-22X series CPUs. It offers two configurable analog output channels with 12-bit resolution, enabling precise voltage or current signals for controlling valves, drives, and other field devices. This module is engineered for industrial environments, featuring galvanic isolation and robust design to ensure stable operation in harsh conditions. It supports multiple output ranges including ±10V, 0-10V, 0-20mA, and 4-20mA, selectable via software configuration. The plug-in design allows quick mounting on the DIN rail and direct connection to the CPU expansion bus, minimizing installation time. Ideal for applications requiring accurate analog control, such as process automation, HVAC systems, and machine building.
| Parameter |
Specification |
| Product Type |
Analog Output Module (EM 232) |
| Model Number |
6ES7232-0HB22-0XA0 |
| Compatible CPUs |
Siemens SIMATIC S7-200 (S7-22X series) |
| Output Channels |
2 |
| Resolution |
12 bits (plus sign bit for voltage outputs) |
| Output Ranges (Voltage) |
±10V, 0-10V |
| Output Ranges (Current) |
0-20mA, 4-20mA |
| Load Impedance (Voltage) |
Min. 5 kΩ |
| Load Impedance (Current) |
Max. 500 Ω |
| Conversion Time |
100 µs per channel (typical) |
| Isolation |
500 VAC between outputs and logic |
| Power Supply |
24 VDC (via CPU bus or external) |
| Current Consumption |
40 mA from 5 VDC bus, 60 mA from 24 VDC |
| Operating Temperature |
0°C to 55°C (32°F to 131°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Dimensions (W x H x D) |
46 x 80 x 62 mm (1.8 x 3.15 x 2.44 inches) |
| Weight |
Approx. 70 g (2.5 oz) |
| Certifications |
CE, UL, CSA, FM |
| Wiring |
Screw-type terminals (removable) |
