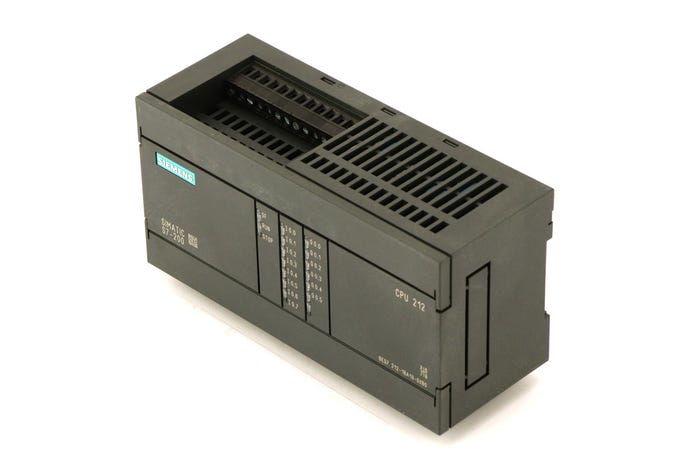

The 6ES7212-1BA10-0XB0 is a field-proven SIEMENS SIMATIC S7-200 CPU 212 controller, designed for reliable discrete control in compact machinery and process lines. This unit features 8 digital inputs (24 V DC) and a robust CPU architecture that supports basic logic, timing, and counting functions. It communicates via the industry-standard PPI protocol, allowing direct connection to Siemens HMI panels and other S7-200 CPUs. With its 24 V DC power supply requirement, it fits perfectly into modern low-voltage automation environments. The CPU 212 is a legacy but highly dependable choice for retrofits and small-scale systems where simplicity and durability are paramount. Below are the detailed technical specifications:
| Parameter |
Specification |
| Product Type |
SIEMENS SIMATIC S7-200 CPU 212 |
| Model Number |
6ES7212-1BA10-0XB0 |
| Inputs |
8 digital inputs (24 V DC, sink/source) |
| Outputs |
None (CPU only; expansion modules required for outputs) |
| Power Supply |
24 V DC (external) |
| Memory |
2 KB program memory, 2 KB data memory (EEPROM backup) |
| Processing Speed |
0.37 µs per boolean instruction |
| Communication |
RS-485 port (PPI protocol, up to 187.5 kbps) |
| Supported Expansion |
Up to 2 expansion modules (EM series) |
| Counters |
256 total (32-bit, up/down) |
| Timers |
256 total (1 ms to 10 s resolution) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Relative Humidity |
5% to 95% non-condensing |
| Protection Class |
IP20 (open cabinet) |
| Dimensions (W x H x D) |
80 mm x 80 mm x 62 mm |
| Weight |
Approx. 0.25 kg |
| Mounting |
DIN rail (EN 60715) |
| Certifications |
CE, UL, cUL, CSA, FM |
