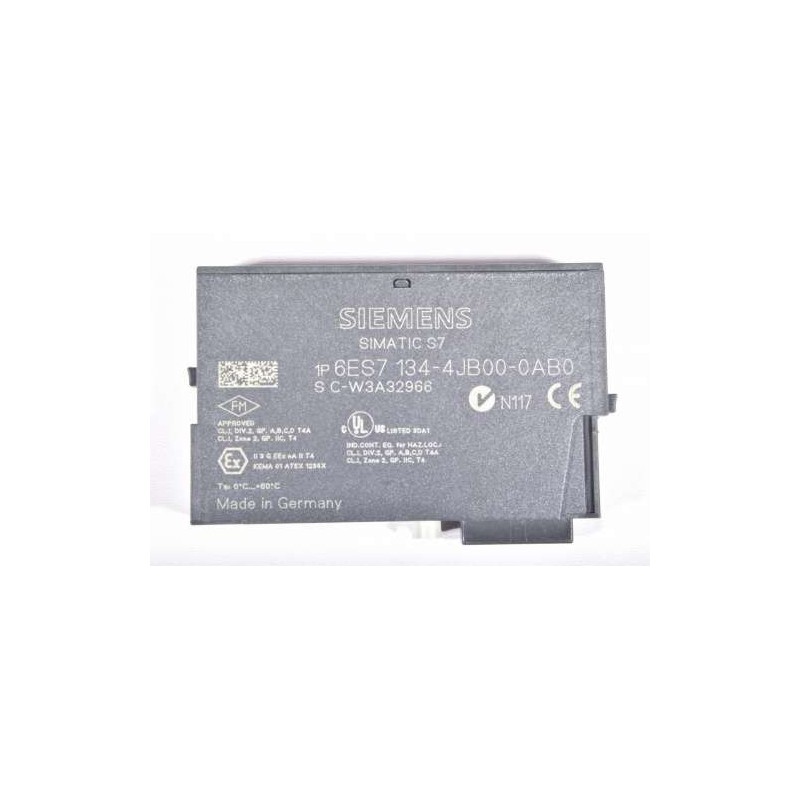

The Siemens SIMATIC DP electronics module 6ES7134-4JB00-0AB0 is a high-performance, 2-channel analog input module specifically engineered for ET 200S distributed I/O platforms. Designed for direct connection of 4-wire RTD temperature sensors (Pt100, Pt1000, Ni100), this module delivers exceptional accuracy with 15-bit resolution plus sign, making it ideal for demanding industrial automation applications such as process control, HVAC, and machine monitoring. Its robust construction ensures reliable operation in harsh environments, while the integrated backplane bus enables seamless data exchange with the ET 200S interface module. The module supports a wide temperature range and is fully compatible with Siemens TIA Portal and STEP 7 engineering software, simplifying configuration and diagnostics.
| Parameter |
Specification |
| Product Type |
SIMATIC DP, Electronics Module for ET 200S |
| Order Number |
6ES7134-4JB00-0AB0 |
| Number of Inputs |
2 analog inputs (4-wire RTD) |
| Sensor Types Supported |
Pt100, Pt1000, Ni100 (standard and climate variants) |
| Resolution |
15 bits plus sign |
| Measuring Principle |
Sigma-delta conversion |
| Accuracy (at 25°C) |
±0.1% of full scale (typical) |
| Input Filter |
Programmable (50 Hz / 60 Hz rejection) |
| Update Time per Channel |
Approx. 100 ms (for 50 Hz filter) |
| Electrical Isolation |
Yes, between channels and backplane bus |
| Rated Supply Voltage |
24 V DC (via ET 200S backplane bus) |
| Power Consumption |
Typ. 1.5 W |
| Operating Temperature |
-25°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
| Dimensions (W x H x D) |
15 mm x 81 mm x 52 mm |
| Weight |
Approx. 30 g |
| Compatibility |
ET 200S interface modules (IM151-1, IM151-2, etc.) |
| Configuration Software |
TIA Portal V13 or higher, STEP 7 V5.5 or higher |
| Certifications |
CE, cULus, ATEX (Zone 2), IECEx (optional) |
