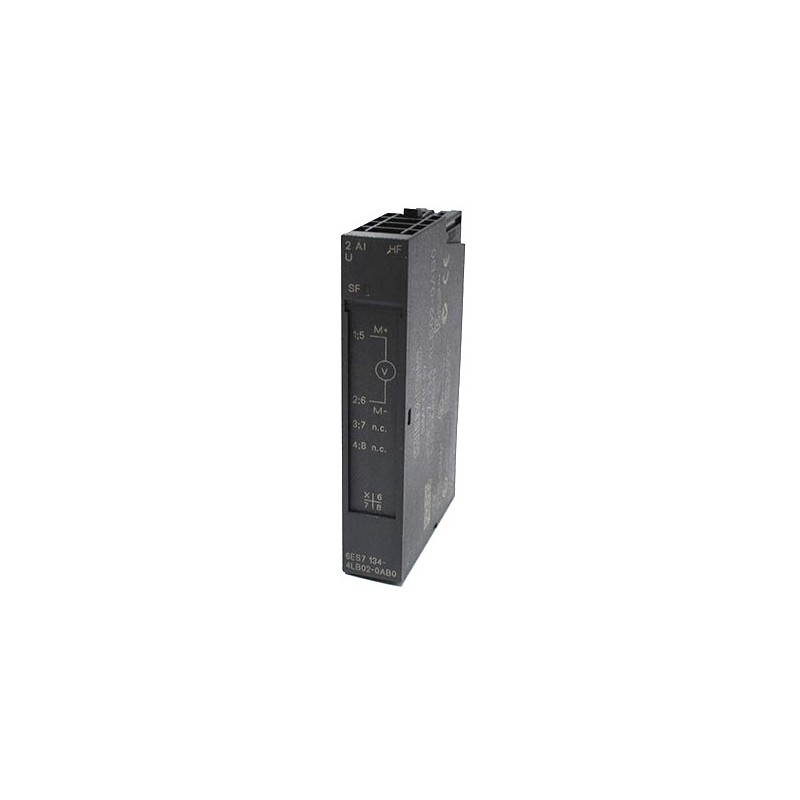

The Siemens SIMATIC DP electronic module 6ES7134-4LB02-0AB0 is a high-feature analog input module designed for the ET 200S distributed I/O system. It provides two channels for voltage measurement with exceptional accuracy and diagnostic capabilities, making it ideal for process automation applications requiring reliable signal acquisition. This module supports both 2-wire and 4-wire transducers, offering flexibility in field wiring. With its 15-bit resolution plus sign, it delivers precise analog-to-digital conversion, while built-in diagnostics like wire-break and short-circuit detection enhance system uptime. The module is fully compatible with Siemens PROFIBUS DP networks and integrates effortlessly into TIA Portal or STEP 7 environments.
| Parameter |
Specification |
| Product Type |
SIMATIC DP, Electronic Module for ET 200S |
| Model Number |
6ES7134-4LB02-0AB0 |
| Number of Analog Inputs |
2 (voltage, high feature) |
| Input Type |
Voltage (U): 0–10 V, ±10 V (selectable per channel) |
| Resolution |
15 bits + sign (16 bits total) |
| Measurement Principle |
Successive approximation (SAR) |
| Conversion Time |
Typically 50 µs per channel |
| Diagnostic Functions |
Wire-break, short-circuit, overrange, underrange, parameterization error |
| Galvanic Isolation |
Yes, between channels and backplane bus (500 V AC) |
| Supply Voltage |
24 V DC via ET 200S terminal module |
| Power Consumption |
Typically 1.5 W |
| Interface |
PROFIBUS DP (via ET 200S interface module) |
| Dimensions (W x H x D) |
15 mm x 76 mm x 85 mm (module only) |
| Weight |
Approx. 40 g |
| Environmental Temperature |
0 °C to +60 °C (operating), -25 °C to +75 °C (storage) |
| Protection Class |
IP20 |
| Certifications |
CE, cULus, ATEX (for hazardous areas, when used with appropriate terminal modules) |
| Compatible Systems |
ET 200S with PROFIBUS DP interface modules (e.g., 6ES7151-1AA06-0AB0) |
| Ordering Information |
6ES7134-4LB02-0AB0 – sold individually, factory-new |
