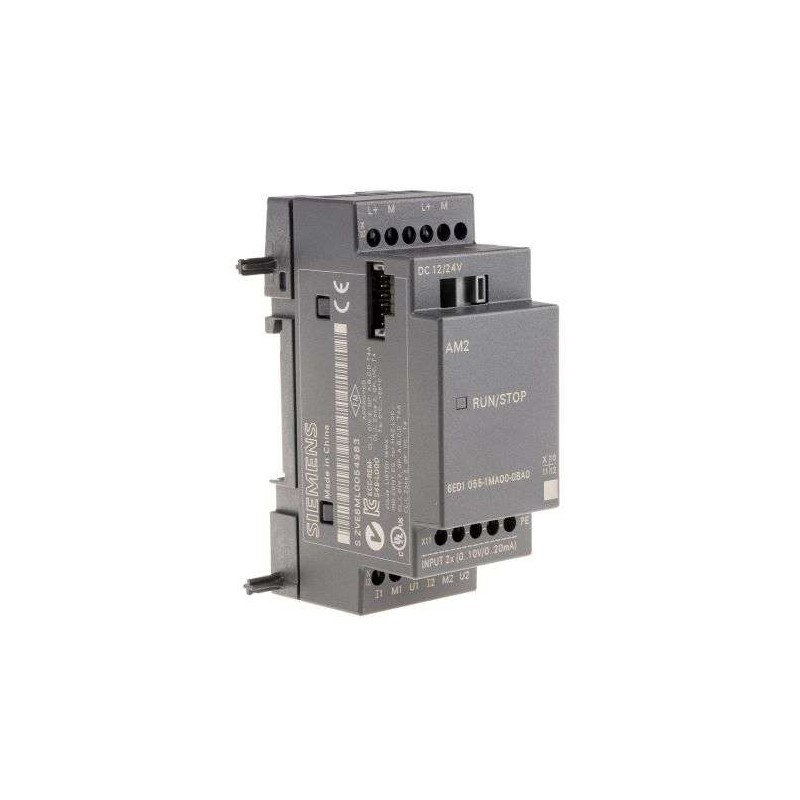

The Siemens LOGO! AM2 Expansion Module, designated as model 6ED1055-1MA00-0BA0, is a critical component for expanding the analog input capabilities of your LOGO! control system. Designed to provide two high-precision analog input channels, this module supports voltage signals from 0 to 10V, making it ideal for monitoring sensors, transducers, and process variables in industrial automation. Its plug-and-play design ensures effortless integration with LOGO! base modules, allowing for rapid deployment in applications such as HVAC control, lighting management, and small-scale process automation. The 6ED1055-1MA00-0BA0 is engineered for durability and accuracy, with a resolution of 10 bits and a conversion time of less than 1 ms per channel, ensuring reliable data acquisition even in dynamic environments.
| Parameter |
Specification |
| Product Type |
LOGO! Expansion Module – Analog Input |
| Model Number |
6ED1055-1MA00-0BA0 |
| Number of Analog Inputs |
2 |
| Input Signal Type |
Voltage (0-10V) |
| Resolution |
10 bits |
| Conversion Time per Channel |
< 1 ms |
| Input Impedance |
100 kΩ typical |
| Maximum Input Voltage |
15V (overvoltage protection) |
| Power Supply |
Via LOGO! base module (24V DC internal bus) |
| Current Consumption (from base module) |
Typically 20 mA |
| Compatible Base Modules |
LOGO! 0BA7, 0BA8 (all variants) |
| Mounting Type |
DIN rail (EN 50022) |
| Dimensions (W x H x D) |
71.5 mm x 90 mm x 58 mm |
| Weight |
Approximately 0.08 kg |
| Operating Temperature |
0°C to +55°C |
| Storage Temperature |
-40°C to +70°C |
| Relative Humidity |
10% to 95% (non-condensing) |
| Protection Class |
IP20 (when installed in a suitable enclosure) |
| CE Certification |
Yes |
| RoHS Compliance |
Yes |
| Application Examples |
Temperature monitoring, pressure sensing, level detection, analog signal processing in HVAC and lighting control |
