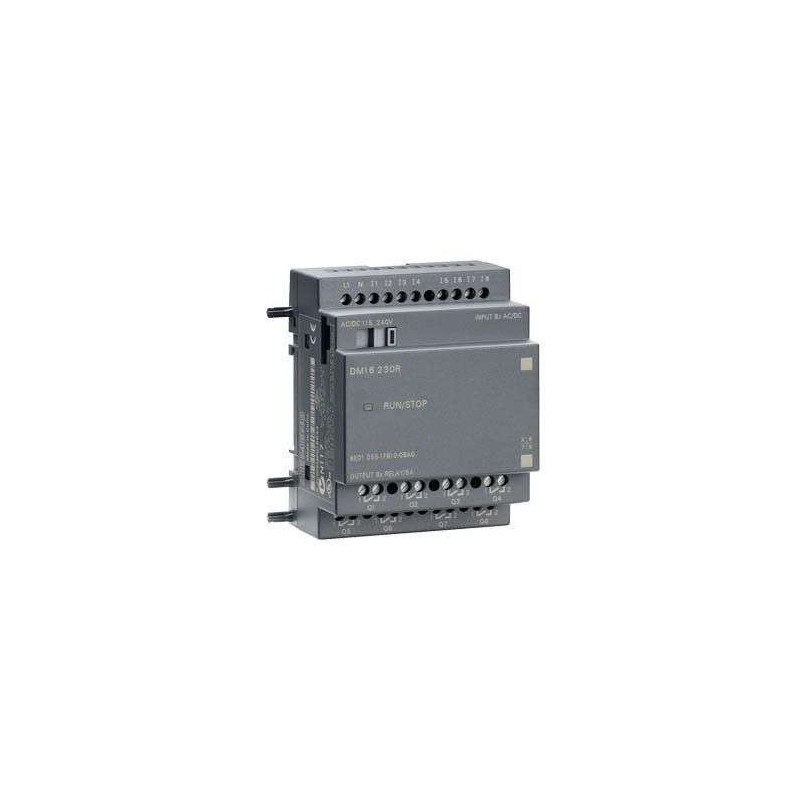

Siemens 6ED1055-1FB10-0BA0 LOGO! DM16 230R Expansion Module

Siemens 6ED1055-1FB10-0BA0 LOGO! DM16 230R Expansion Module

Series#: Siemens

Product Details

6ED1055-1FB10-0BA0 SIEMENS LOGO! DM16 230R – High-performance expansion module for modular automation systems.
Provides 8 digital inputs and 8 relay outputs, all rated for 230V AC operation.
Seamless plug-and-play integration with LOGO! 8 and earlier base modules, no extra wiring needed.
Compact DIN-rail mount design saves panel space while expanding I/O capacity up to 24 points.
Built-in surge protection and galvanic isolation for reliable operation in industrial environments.
Ideal for small-scale automation, HVAC control, and lighting systems in commercial buildings.
100% Brand New & Original, securely packed and ready for reliable global shipping.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The 6ED1055-1FB10-0BA0 SIEMENS LOGO! DM16 230R is a robust digital expansion module designed to extend the I/O capabilities of Siemens LOGO! controllers. Engineered for 230V AC applications, this module offers 8 inputs and 8 relay outputs, each capable of switching loads up to 10A. Its compact form factor and easy DIN-rail mounting make it a versatile choice for retrofit projects or new installations requiring cost-effective distributed control. With full backward compatibility and high noise immunity, it ensures stable performance even in electrically harsh settings.

Parameter	Specification
Product Type	Digital Expansion Module
Model Number	6ED1055-1FB10-0BA0
Inputs	8 digital inputs (24V AC/DC or 230V AC selectable)
Outputs	8 relay outputs (NO/NC, 10A max per channel)
Supply Voltage	230V AC ±10%
Input Voltage Range	20.4V to 264V AC/DC
Output Type	Relay, potential-free, rated for 250V AC / 30V DC
Switching Capacity (Resistive)	10A at 250V AC, 5A at 30V DC
Galvanic Isolation	Between inputs and outputs, 1500V AC
Response Time (Input to Output)	Typical 10ms
Power Consumption (Internal)	5W max
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +70°C
Protection Class	IP20 (enclosed)
Mounting Type	DIN rail (35mm) or wall mount
Dimensions (W x H x D)	71.5 x 90 x 60 mm
Weight	Approx. 120g
Compatibility	Siemens LOGO! 8, 7, 6, 5, 4, 3, 2, 1 base modules
Standards	CE, UL, cUL, RoHS
