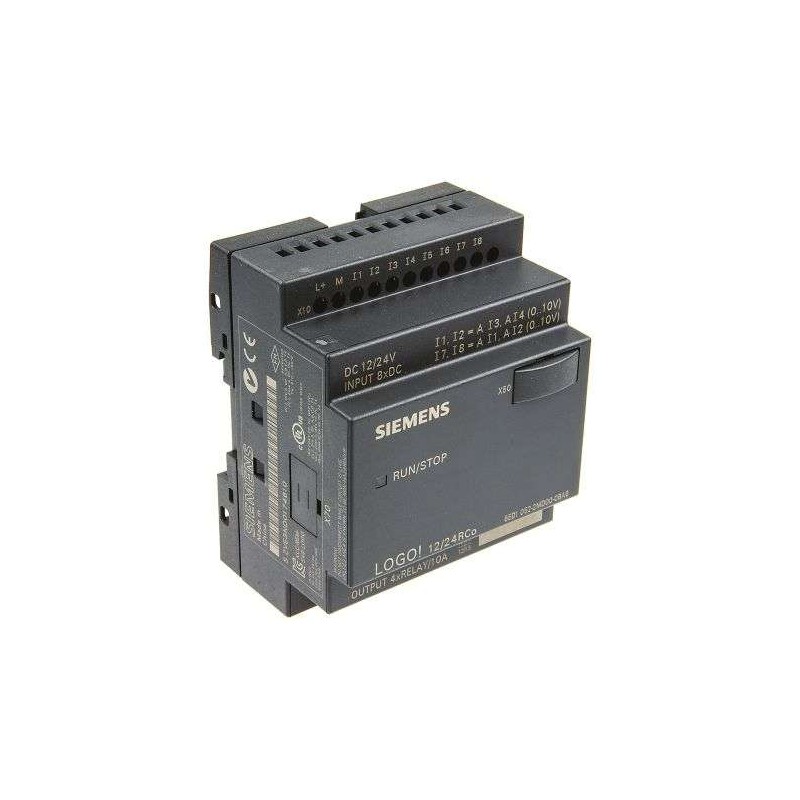

6ED1052-2MD00-0BA6 SIEMENS LOGO! 12/24RCO is a versatile logic module designed for small to medium automation tasks, such as lighting control, conveyor systems, and HVAC management. It combines a powerful microprocessor with a user-friendly interface, enabling quick configuration and deployment. This module supports a wide range of functions including timers, counters, and analog value processing, making it a cost-effective solution for both industrial and commercial applications. Its robust construction ensures reliable operation in harsh environments, while the integrated Ethernet port simplifies network integration and data exchange.
| Parameter |
Specification |
| Product Type |
LOGO! Logic Module |
| Model Number |
6ED1052-2MD00-0BA6 |
| Supply Voltage |
12/24 V DC (10.8 to 28.8 V DC) |
| Digital Inputs |
8 (4 of which can be used as analog inputs, 0-10 V or 0-20 mA) |
| Digital Outputs |
4 relay outputs (max. 10 A per output, resistive load) |
| Output Type |
Relay, normally open |
| Program Memory |
400 blocks (max.) |
| Cycle Time |
Typical 0.1 ms per 1000 instructions |
| Communication Interface |
Ethernet (RJ45) for programming and Modbus TCP |
| Expansion Capability |
Up to 8 expansion modules (digital, analog, communication) |
| Display |
Integrated 6-line LCD with backlight (text and graphics) |
| Programming Software |
LOGO! Soft Comfort V8 or higher |
| Mounting |
DIN rail (EN 60715) or panel mounting |
| Operating Temperature |
0°C to +55°C (storage: -40°C to +70°C) |
| Degree of Protection |
IP20 (front panel) |
| Dimensions (W x H x D) |
72 mm x 90 mm x 55 mm |
| Weight |
Approx. 150 g |
| Standards |
CE, UL, cULus, FM, ATEX (for specific models) |
