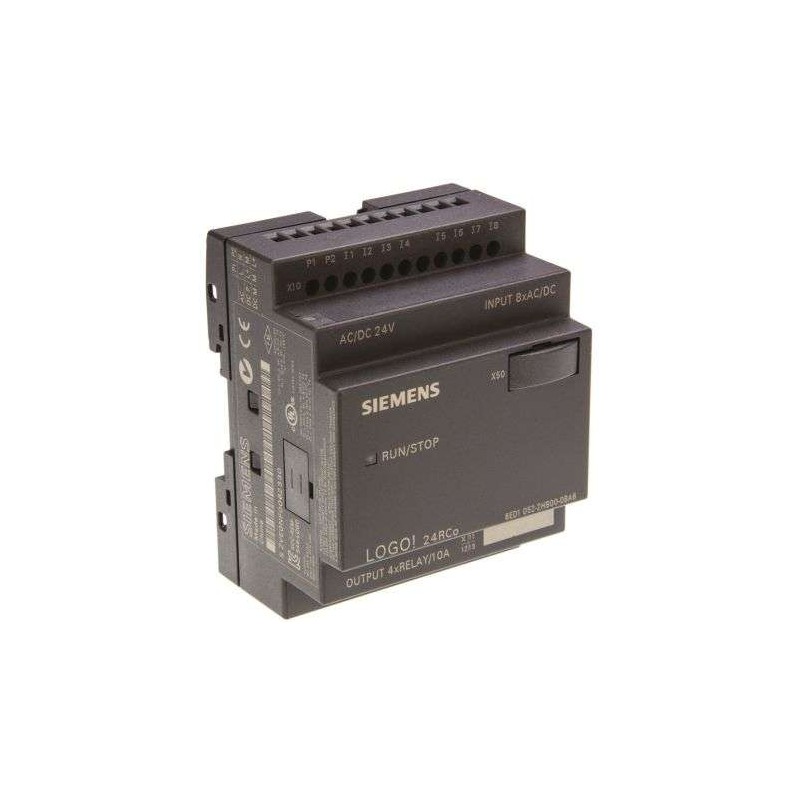

Siemens LOGO! 24RCO Logic Module

Series#: Siemens

Product Details

6ED1052-2HB00-0BA6 – Siemens LOGO! 24RCO Logic Module, designed for compact automation and control tasks.
Integrated 24V DC power supply with 8 digital inputs and 4 relay outputs for flexible I/O configuration.
Built-in real-time clock (RTC) and 400 block memory for time-based and logic functions.
Supports Ethernet communication via optional LOGO! CMR module for remote monitoring and control.
Easy programming with LOGO! Soft Comfort software and onboard display/keypad for standalone use.
Compact DIN rail mount design, ideal for building automation, lighting control, and small machinery.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Siemens LOGO! 24RCO Logic Module, model 6ED1052-2HB00-0BA6, is a versatile and reliable controller designed for small-scale automation projects. This unit operates on a 24V DC supply and offers a balanced mix of inputs and outputs, making it suitable for applications such as conveyor control, pump sequencing, or environmental monitoring. With its integrated real-time clock and ample memory capacity, it can handle complex time-based logic without external components. The module supports both local programming via the built-in keypad and remote configuration through LOGO! Soft Comfort software. For enhanced connectivity, it can be paired with optional Ethernet modules for seamless integration into larger industrial networks. This model is a cost-effective solution for engineers seeking robust performance in a compact footprint.

Parameter	Specification
Model Number	6ED1052-2HB00-0BA6
Product Type	LOGO! 24RCO Logic Module
Power Supply Voltage	24V DC (20.4 to 28.8V DC)
Digital Inputs	8 (24V DC, type 1 according to IEC 61131-2)
Digital Outputs	4 (Relay, 10A per output, 250V AC / 30V DC max)
Memory Capacity	400 blocks (program and data)
Real-Time Clock	Yes, with battery backup (life > 5 years)
Programming Software	LOGO! Soft Comfort V8.3 or higher
Display	Backlit LCD, 6 lines x 16 characters
Keypad	6 navigation keys + 4 function keys
Communication Ports	1 x RS-485 (for LOGO! CMR or PC connection)
Ethernet Support	Optional via LOGO! CMR2020 or CMR2040 modules
Cycle Time	0.1 ms per 100 blocks (typical)
Ambient Temperature (Operating)	0°C to 55°C
Ambient Temperature (Storage)	-40°C to 70°C
Protection Class	IP20 (when mounted in enclosure)
Mounting Type	DIN rail (35mm per EN 60715)
Dimensions (W x H x D)	71.5 x 90 x 60 mm
Weight	Approx. 190 g
Certifications	CE, UL, cUL, FM, RCM, EAC
