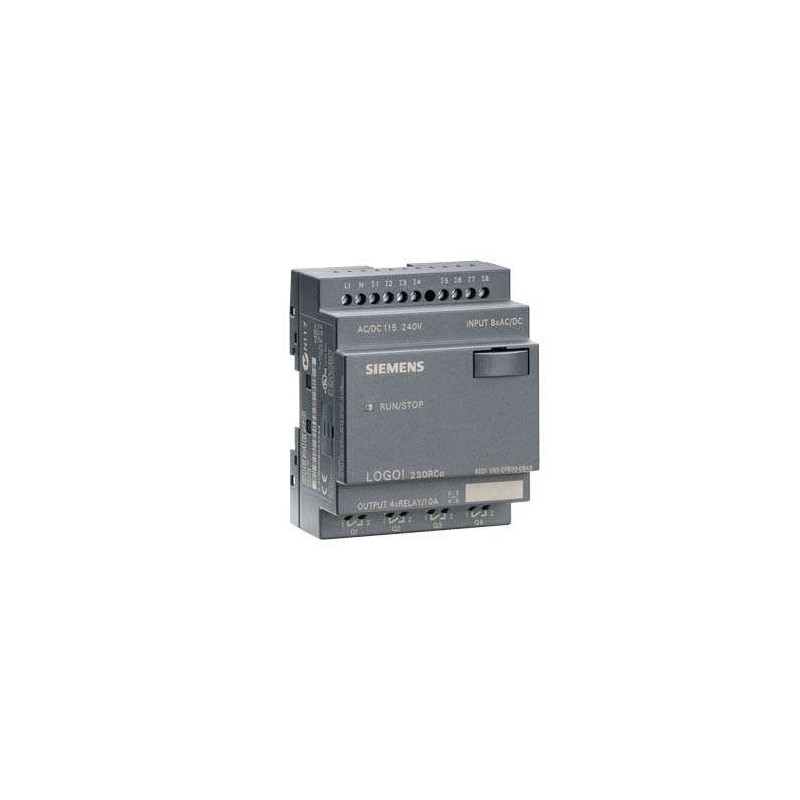

Siemens LOGO! 230RCO Logic Module

Series#: Siemens

Product Details

Siemens LOGO! 230RCO (6ED1052-2FB00-0BA6) – Compact logic module engineered for reliable 230V AC industrial and building automation.
8 digital inputs + 4 relay outputs (230V AC rated) for direct control of motors, pumps, and lighting.
200-block memory capacity with high-speed logic processing for complex automation sequences.
Modular expandability via LOGO! expansion modules for I/O, communication, and analog functions.
Programmable via LOGO! Soft Comfort software – intuitive graphical drag-and-drop environment.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Siemens LOGO! 230RCO (6ED1052-2FB00-0BA6) is a robust, entry-level logic module designed for demanding 230V AC environments where relay outputs are essential. Featuring an integrated power supply, 8 digital inputs, and 4 relay outputs, this unit eliminates the need for external relays in many motor and lighting control applications. Its compact footprint (72 x 90 x 55 mm) and DIN rail mounting make it ideal for control panels with limited space. The 200-block program memory supports up to 400 function blocks, enabling advanced ladder logic, timers, counters, and arithmetic operations. For applications requiring remote monitoring, the module can be expanded with Ethernet (LOGO! CM EIB/KNX) or modem modules. Programming is accomplished via the free LOGO! Soft Comfort V8.3+ software, which offers simulation, online diagnostics, and data logging. The 230RCO variant is specifically optimized for mains-powered installations, with relay outputs capable of switching 10A resistive loads at 250V AC. It also features a real-time clock with battery backup for time-based control, a built-in EEPROM for program retention, and a USB port for direct PC connection. This model is CE, UL, and cULus certified, ensuring compliance with global safety standards. It operates reliably in temperatures from -20°C to +55°C and is protected against short circuits and overvoltage on all inputs.

Specification	Details
Model	Siemens LOGO! 230RCO
Order Number (MLFB)	6ED1052-2FB00-0BA6
Power Supply Voltage	230 V AC (50/60 Hz)
Inputs (Digital)	8 (24 V DC / 230 V AC configurable)
Outputs (Digital)	4 relay outputs, 230 V AC, 10 A resistive, 2 A inductive
Display	None (compact design)
Program Memory	200 blocks (up to 400 function blocks)
Real-Time Clock	Yes, with battery backup (CR2032)
Data Retention	EEPROM (non-volatile, no battery required for program)
Programming Software	LOGO! Soft Comfort V8.3+ (free download)
Communication Interface	USB 2.0 (Type B) for PC connection
Expandability	Up to 8 expansion modules (digital, analog, communication)
Expansion Module Types Supported	LOGO! DM 8 230R, LOGO! AM2, LOGO! CM EIB/KNX, LOGO! CM Modbus
Input Voltage Range (Digital Inputs)	0–24 V DC (low level 0–5 V, high level 15–24 V) / 0–230 V AC (low level 0–40 V, high level 79–264 V)
Output Current (per contact)	10 A (resistive), 2 A (inductive) at 250 V AC
Output Short-Circuit Protection	External fuse required (recommended 10 A)
Program Execution Time	0.1 ms per block (typical)
Cycle Time (max)	10 ms (for 200 blocks)
Operating Temperature	-20°C to +55°C (storage -40°C to +70°C)
Relative Humidity	5% to 95% (non-condensing)
Protection Class	IP20 (DIN rail enclosure)
Dimensions (W x H x D)	72 mm x 90 mm x 55 mm
Weight	Approx. 110 g
Mounting	DIN rail (35 mm) or panel mounting
Certifications	CE, UL 508, cULus, CSA, FM, ATEX (with approved barrier)
Standards Compliance	EN 61131-2, EN 55022 Class B, EN 61000-6-2, EN 61000-6-4
Power Consumption (typical)	5 W (without expansion modules)
Inrush Current	Max 15 A (for 0.5 ms)
Backup Battery Life	10 years (typical, CR2032)
Firmware Version	V8.3 or higher (field-upgradable)
Application Suitability	Building automation, HVAC, lighting control, conveyor systems, pump control, agricultural automation
