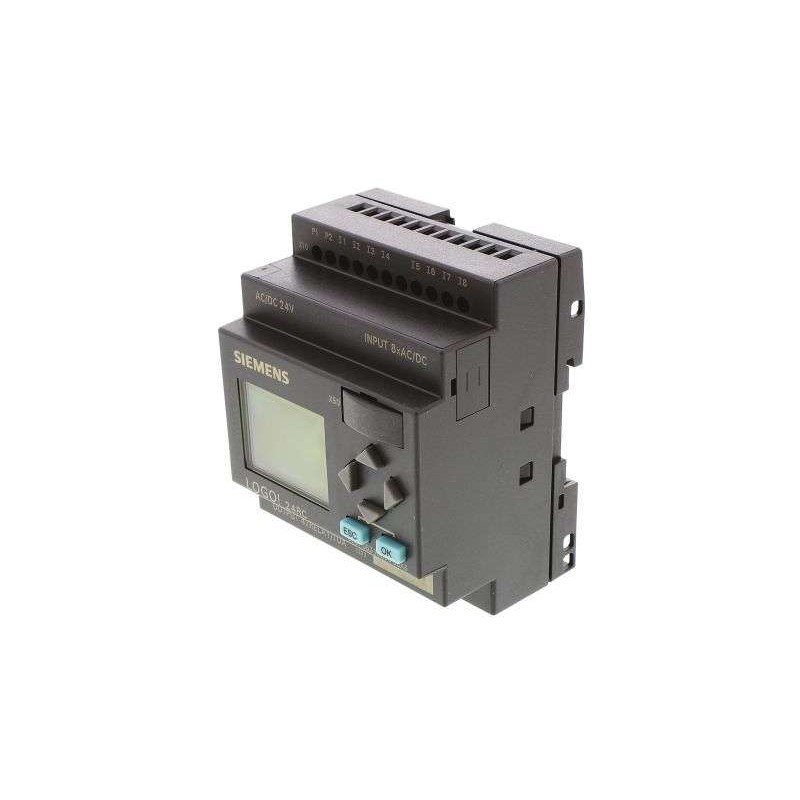

Siemens LOGO! 24 C Logic Module

Series#: Siemens

Product Details

Siemens LOGO! 24C (6ED1052-1CC01-0BA6) – Compact logic module for small to medium automation tasks.
8 digital inputs (4 configurable as analog) and 4 relay outputs, all at 24V DC.
Integrated real-time clock for precise scheduling and time-stamped event logging.
200 program blocks memory for complex logic sequences and easy future expansion.
Modular expandable design with additional I/O and communication modules available.
Intuitive programming via LOGO! Soft Comfort software – ideal for both beginners and experienced engineers.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Siemens LOGO! 24C, referenced as model 6ED1052-1CC01-0BA6, is a highly versatile and compact logic module engineered to bridge the gap between traditional relay control and full-scale PLC systems. Built for 24V DC operation, this unit integrates a power supply, a backlit display, and a real-time clock into a single DIN-rail mountable housing. Its 8 digital inputs, four of which can be configured for analog signal acquisition, combined with 4 robust relay outputs, provide the flexibility needed for a wide range of automation applications—from simple machine interlocks to building management systems. The module’s 200-block memory capacity allows for the creation of moderately complex control algorithms, while its modular expansion bus enables the direct connection of additional I/O modules, communication processors (e.g., AS-Interface, KNX), or operator panels. With its proven reliability and seamless integration into the Siemens TIA Portal ecosystem (via LOGO! Soft Comfort), the 6ED1052-1CC01-0BA6 remains a cornerstone solution for cost-sensitive yet performance-critical automation projects.

Specification	Details
Model Number	6ED1052-1CC01-0BA6
Product Type	LOGO! 24C Logic Module
Supply Voltage	24V DC (20.4 to 28.8V DC)
Input Voltage (Digital)	24V DC (rated, 15 to 30V DC)
Input Voltage (Analog)	0 to 10V DC (on 4 configurable inputs)
Digital Inputs	8 total (4 can be used as analog inputs)
Digital Outputs	4 relay outputs (normally open, 10A per contact)
Output Voltage	24V DC / 230V AC (relay contacts, max switching)
Program Memory	200 function blocks
Real-Time Clock	Integrated with battery backup (typical 10 years)
Display	Backlit LCD, 6 lines x 16 characters
Expandability	Up to 8 expansion modules (I/O, communication, etc.)
Programming Software	LOGO! Soft Comfort V8.3 or higher
Communication Interface	Ethernet (via LOGO! CMR2020 or CIM module); RS-232 (via LOGO! COM)
Operating Temperature	0°C to +55°C (storage: -40°C to +70°C)
Protection Class	IP20 (NEMA 1)
Mounting	DIN rail (35mm) or panel mount
Dimensions (W x H x D)	72 mm x 90 mm x 55 mm
Weight	Approx. 0.15 kg
Standards	CE, UL, cUL, FM, GL, ABS, Lloyd's Register
