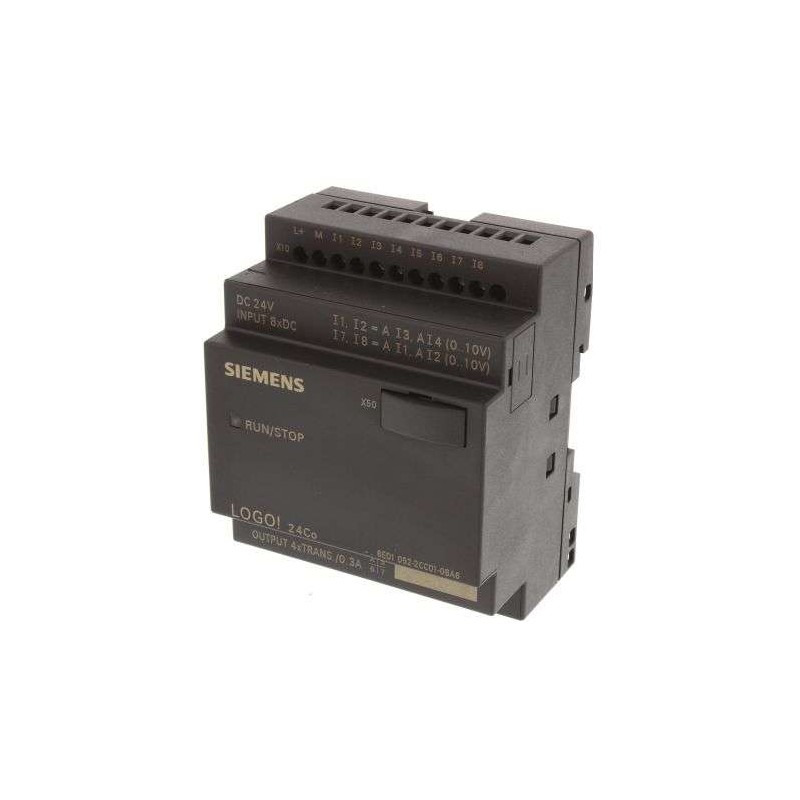

Siemens LOGO! 24CO Logic Module

Series#: Siemens

Product Details

Model: 6ED1052-2CC01-0BA6 – Siemens LOGO! 24CO Logic Module for reliable industrial control.
8 Digital Inputs with 4 Analog Input (AI) capability, enabling direct sensor monitoring and versatile signal processing.
4 Digital Outputs (DO) for controlling actuators, relays, and DC devices with precision.
200 program blocks of internal memory and integrated Real-Time Clock (RTC) for time-based automation and event logging.
Modular expandability supports additional I/O and functional modules, offering scalable solutions for complex tasks.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Siemens 6ED1052-2CC01-0BA6 is a compact, display-less logic control module from the LOGO! 24CO series, engineered to deliver robust performance in space-constrained industrial environments. This module combines a 24V power supply (compatible with both DC and AC sources) with a powerful feature set, including 8 digital inputs (4 of which can be used as analog inputs for 0-10V signals), 4 digital outputs (suitable for 24V DC loads), and 200 program blocks of internal memory. With an integrated real-time clock for scheduling and event logging, plus the ability to expand modularly with additional I/O units, the 6ED1052-2CC01-0BA6 is ideal for applications ranging from building automation to small-scale machinery control, offering flexibility and reliability in a single, easy-to-deploy package.

Specification	Details
Product Type	Logic Control Module (Without Display)
Model Number	6ED1052-2CC01-0BA6
Supply Voltage	24V DC (also compatible with 24V AC via transformer)
Digital Inputs (DI)	8 (4 can be configured as Analog Inputs, 0-10V)
Analog Inputs (AI)	4 (via digital inputs, 0-10V)
Digital Outputs (DO)	4 (24V DC, transistor switching)
Output Current per Channel	0.3 A (max)
Total Output Current (Module)	1.2 A (max)
Program Memory	200 program blocks
Real-Time Clock (RTC)	Yes, integrated (battery-backed)
Modular Expansion	Yes, supports up to 4 expansion modules (e.g., 6ED1055-1CB00-0BA2)
Programming Software	LOGO! Soft Comfort (V8.0 or higher)
Communication Interface	Ethernet (via optional module) or RS-232 (via optional module)
Operating Temperature	0°C to +55°C
Storage Temperature	-40°C to +70°C
Relative Humidity	95% (non-condensing)
Protection Class	IP20
Dimensions (W x H x D)	72 mm x 90 mm x 58 mm
Weight	Approx. 150 g
Standards	IEC 61131-2, EN 55011, EN 61000-6-2
