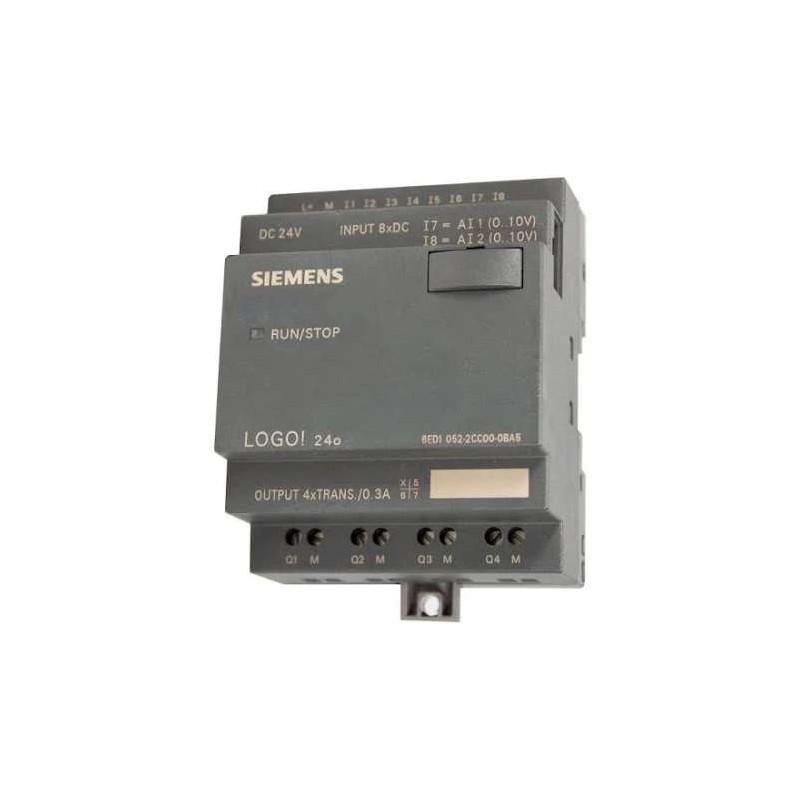

The Siemens 6ED1052-2CC00-0BA5 is a pure logic control module from the LOGO! 24O series, engineered for applications where a display interface is unnecessary. This unit delivers reliable, discrete control in a compact footprint, ideal for simple machine automation, building services, and standalone control tasks. With a 24V DC/AC power supply, it integrates seamlessly into existing 24V systems. The module’s robust design ensures stable operation in industrial environments, while its expandability allows for future system growth. Whether you need basic relay replacement or sequential logic, the 6ED1052-2CC00-0BA5 provides a cost-effective, high-performance foundation for your automation projects.
| Parameter |
Specification |
| Product Type |
Logic Control Module (Without Display) |
| Supply Voltage |
24V DC/AC (20.4V to 28.8V DC; 20.4V to 26.4V AC) |
| Digital Inputs |
8 DI (24V DC, type 1 per IEC 61131-2) |
| Analog Inputs |
2 AI (0-10V, configurable; shared with DI 7 and DI 8) |
| Digital Outputs |
4 DO (24V DC, 0.3A per output, short-circuit protected) |
| Output Type |
Solid-state (transistor), high-speed switching |
| Program Memory |
130 program blocks (approx. 4 KB user program) |
| Cycle Time |
Typically 0.1 ms per block |
| Expandability |
Up to 8 expansion modules (LOGO! CM, AM, DM series) |
| Communication Interface |
None onboard (expandable via LOGO! CM modules) |
| Real-Time Clock |
Not included (optional via LOGO! CM module) |
| Digital Input Filter |
Selectable: 0.1 ms / 0.5 ms / 1 ms / 3 ms |
| Operating Temperature |
0°C to +55°C (storage: -40°C to +70°C) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Protection Class |
IP20 (front panel) |
| Dimensions (W x H x D) |
72 mm x 90 mm x 55 mm (approx.) |
| Mounting |
DIN rail (35 mm per EN 60715) |
| Weight |
Approx. 150 g |
| Standards |
IEC 61131-2, UL 508, CSA C22.2 No. 142, CE |
